DTC 1001: Cab Internal Failure: Signal Error: Notes

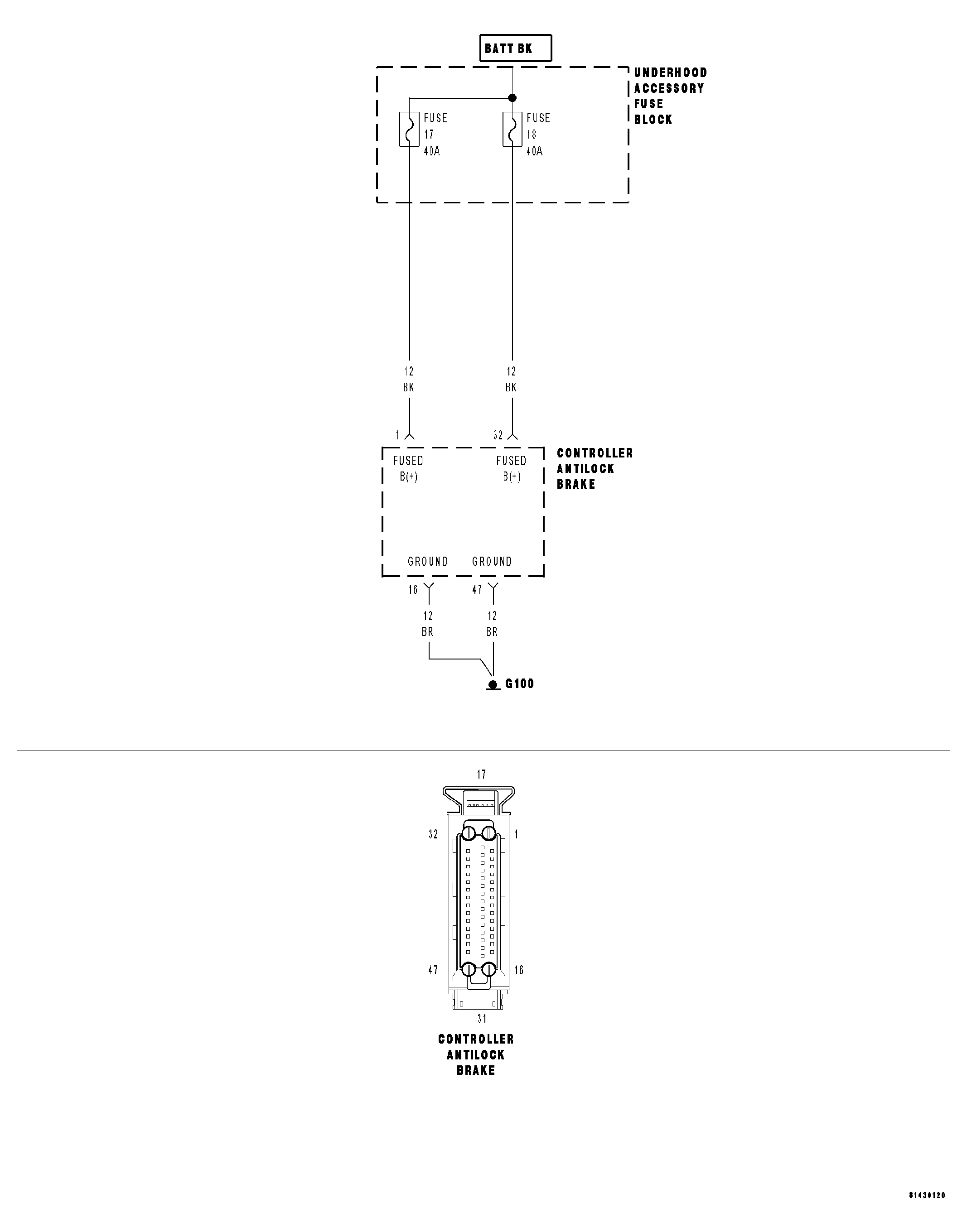

Fig 1: Controller Antilock Brake Power & Ground Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: The Controller Antilock Brake (CAB) monitors the internal functions of the CAB continuously.
2. Set Condition: The Controller Antilock Brake (CAB) will set this DTC if an internal fault is detected.

For a complete Antilock Brake System (ABS) circuit diagram, see SCHEMATICS AND DIAGRAMS .
