DTC 1021: 00 No Can Communication With SKREEM And CLP/SSM: Notes

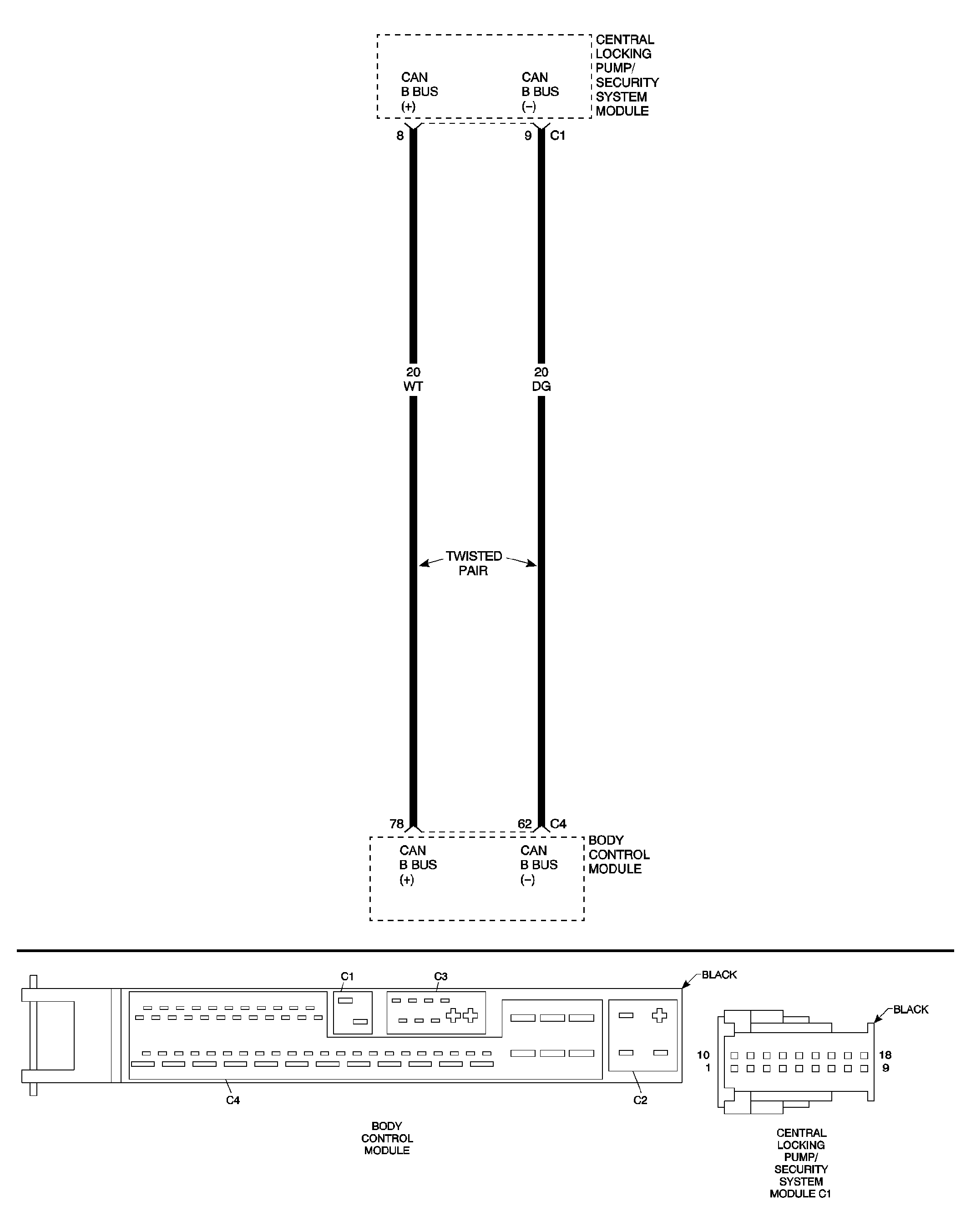

Fig 1: CLP/SSM To BCM Circuit Schematic

GC0035445

Courtesy of CHRYSLER LLC
