DTC 9076: No Communication With The Body Control Module: Notes

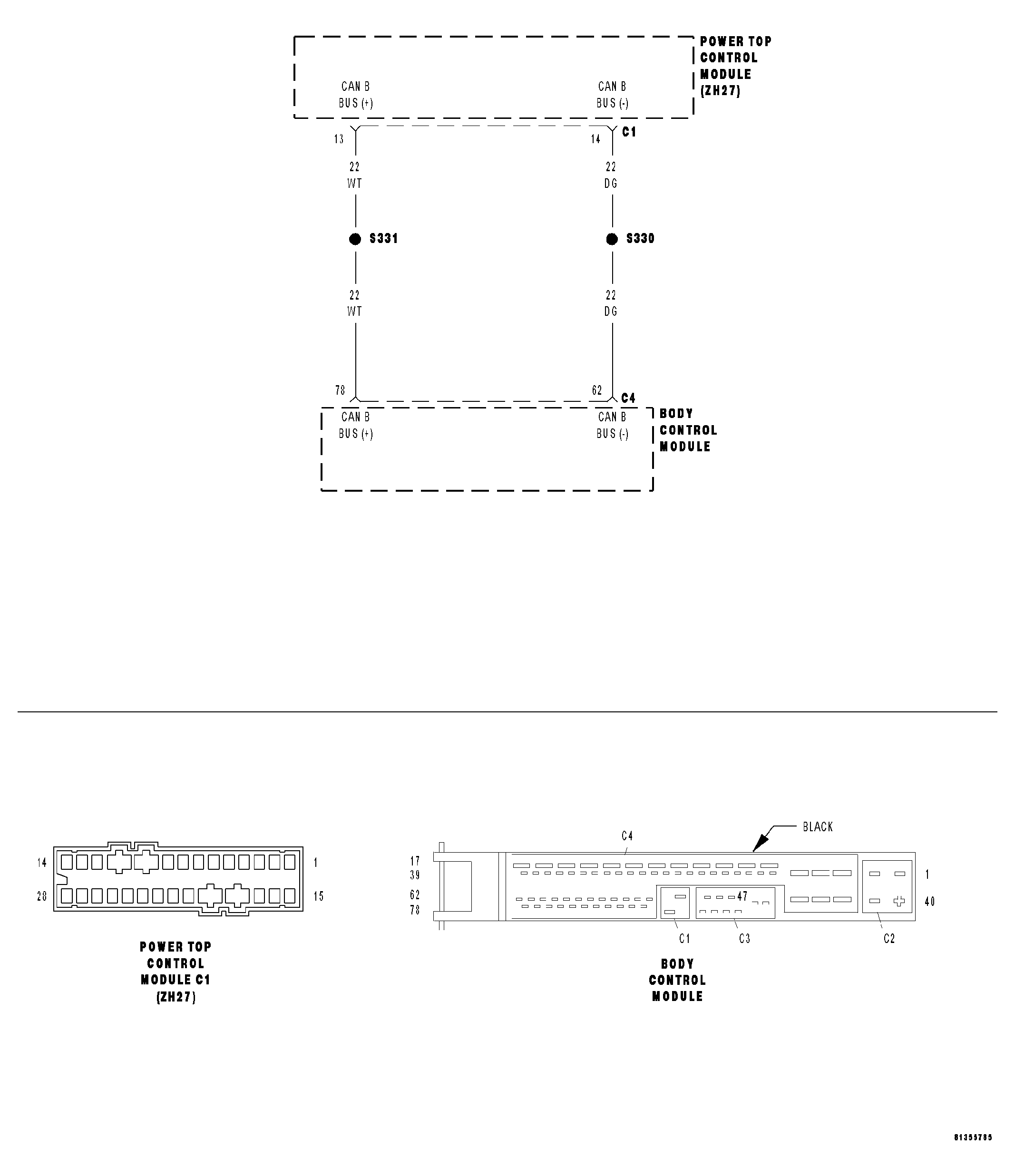

Fig 1: Power Top Control Module CAN B BUS Communication Circuit Schematic

GC0033027

Courtesy of CHRYSLER LLC
