*Both Power Seats Inoperative: Notes

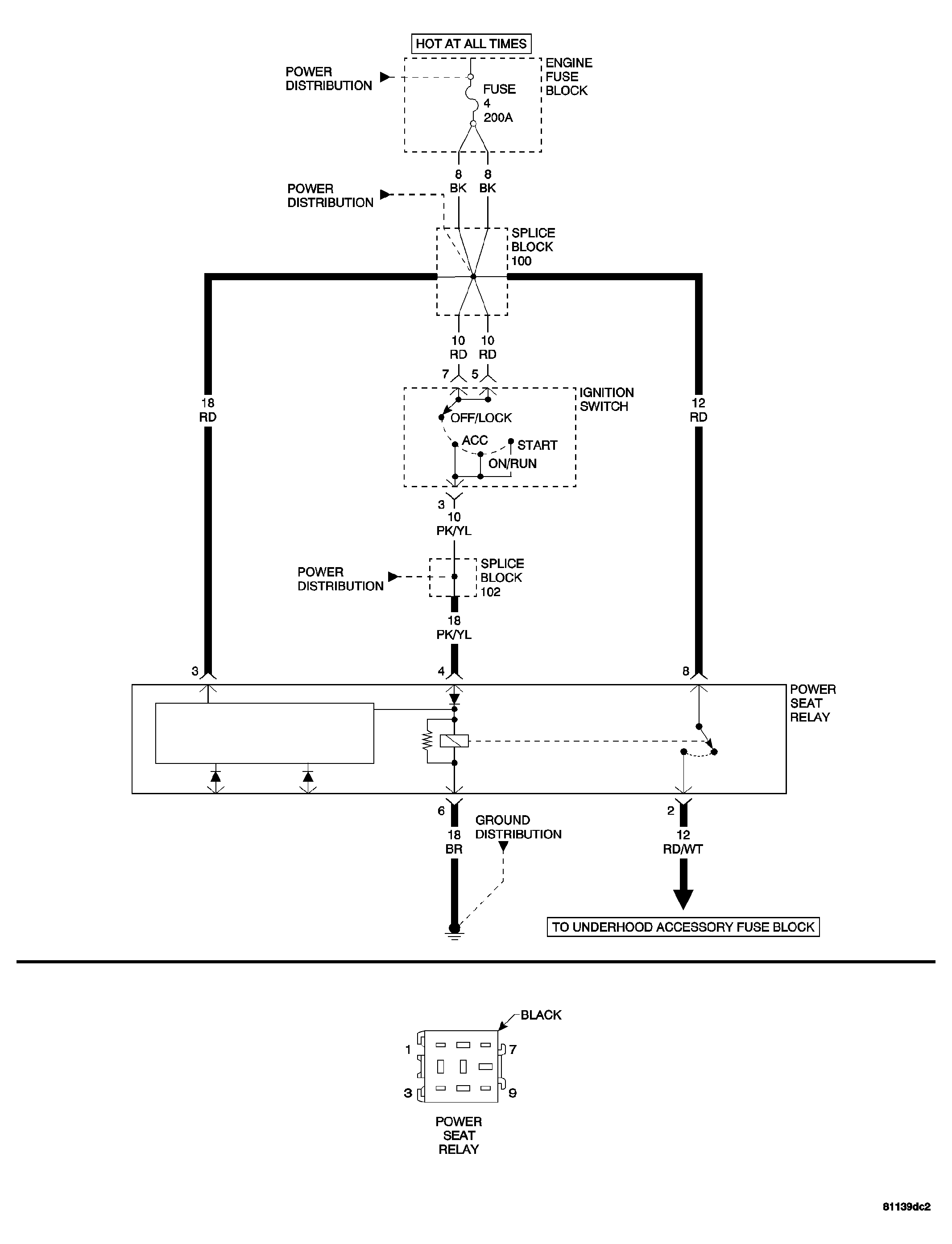

Fig 1: Power Seats Circuit Schematic
GC0035525Courtesy of CHRYSLER LLC
POSSIBLE CAUSES
POWER SEAT RELAY FUSED B(+) CIRCUIT OPEN
POWER SEAT RELAY GROUND CIRCUIT OPEN
POWER SEAT RELAY

For a complete Power Seats Circuit Diagram, see SCHEMATICS AND DIAGRAMS .
