DTC 9078: No Communication With Central Locking Pump/Security System Module: Notes

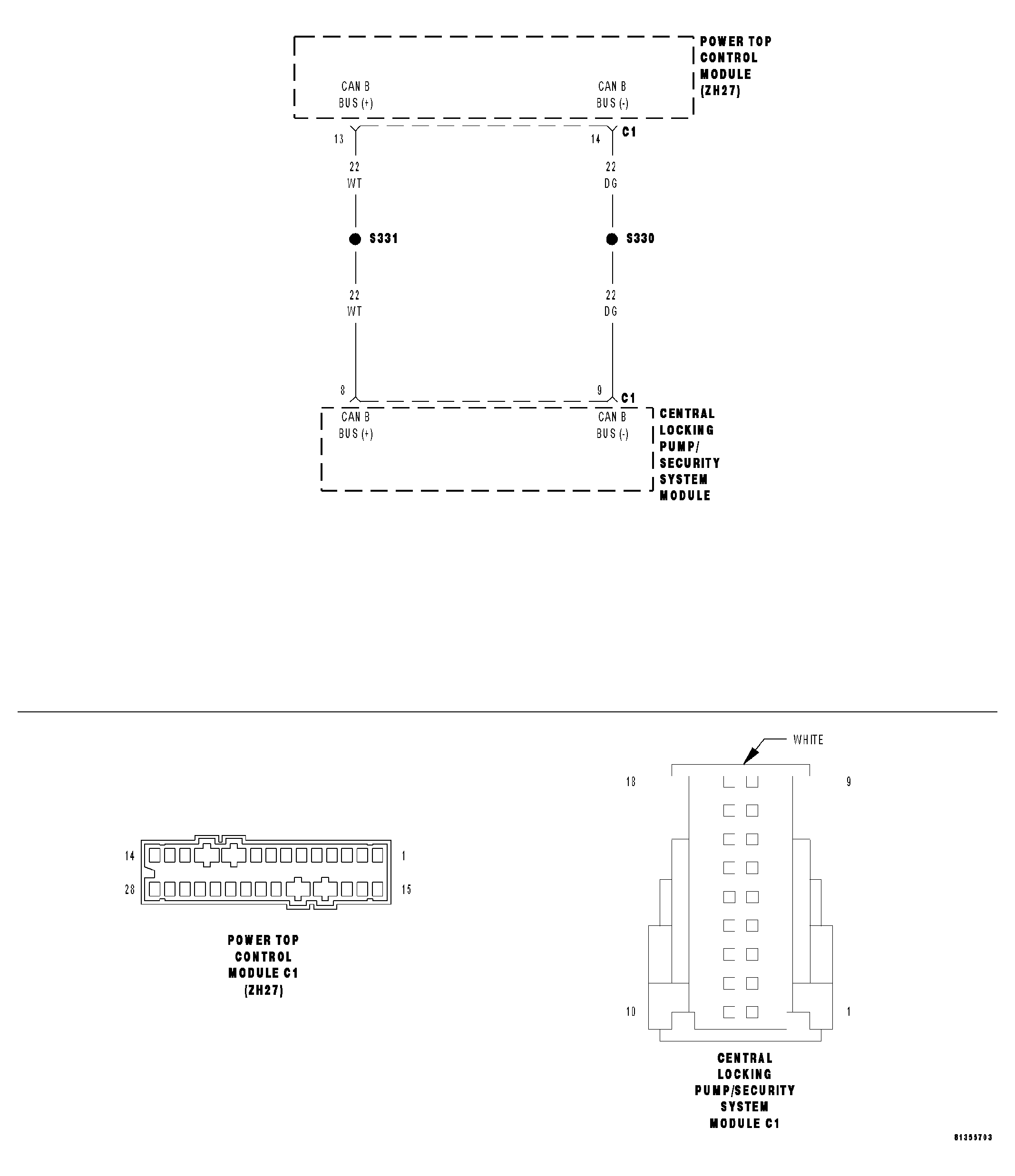

Fig 1: Central Locking Pump/Security System Module Communication Circuit Schematic

GC0033030

Courtesy of CHRYSLER LLC
