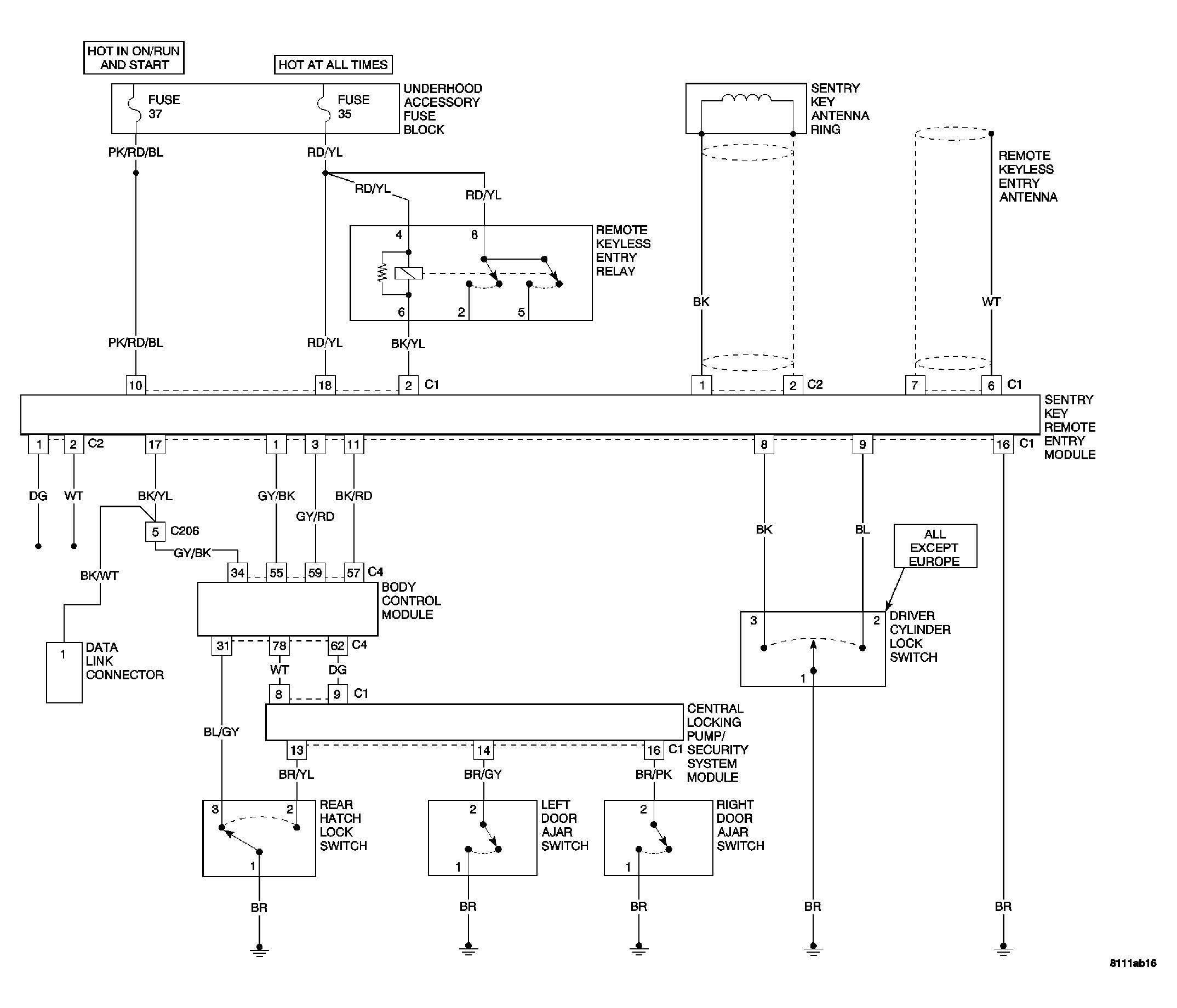

Home >> Chrysler >> 2007 >> Crossfire Base, 2D Convertible >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Vehicle Theft Security System - Electrical Diagnostics >> Vehicle Theft Security - Electrical Diagnostics >> Schematics And Diagrams >> Vehicle Theft System Circuit Diagram
