*Heated Washer Nozzles Inoperative: Notes

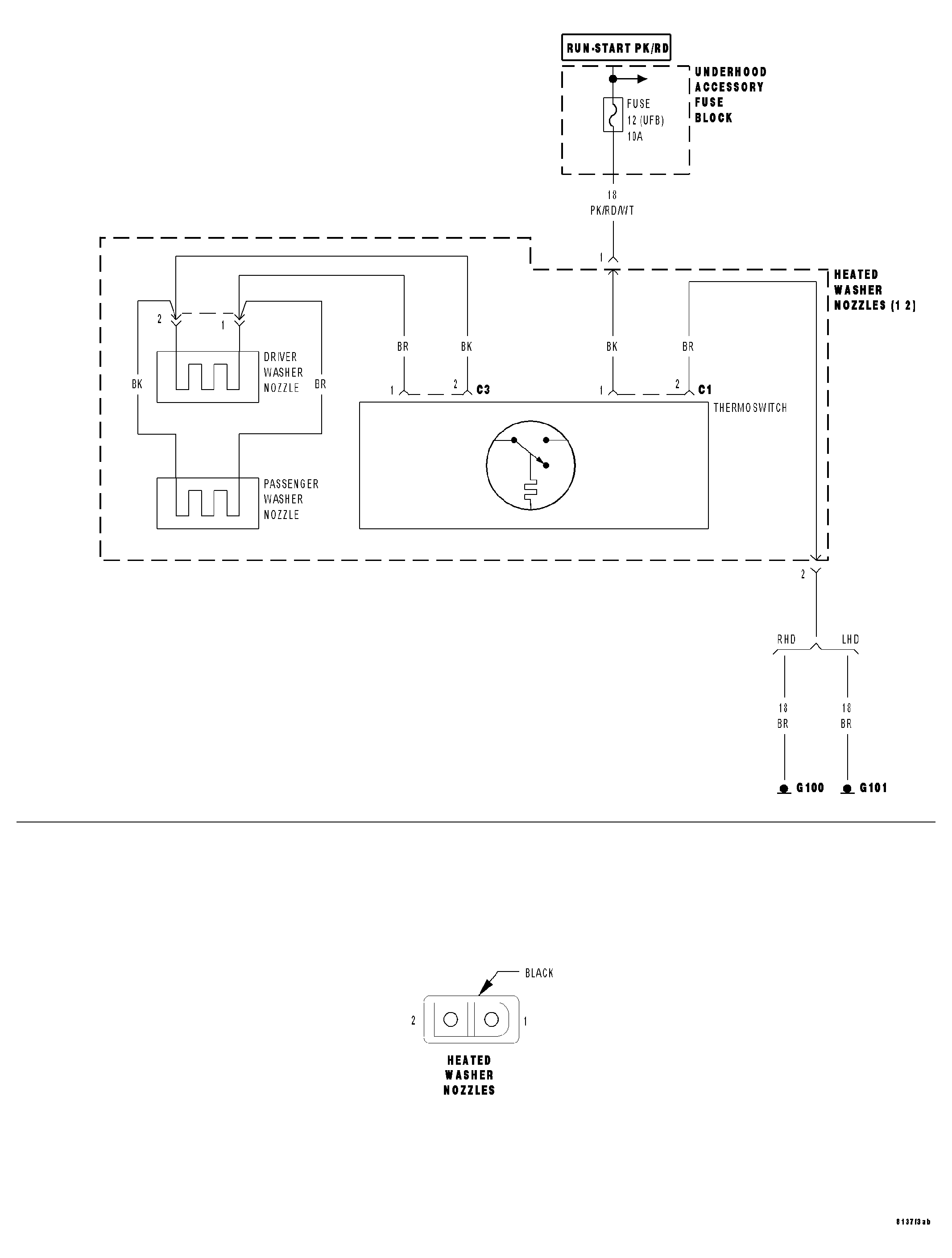

Fig 1: Heated Washer Nozzles Circuit Schematic
GC0035772Courtesy of CHRYSLER LLC
POSSIBLE CAUSES
FUSED IGNITION OR GROUND CIRCUIT OPEN
THERMOSWITCH
WASHER NOZZLE

For a complete Wipers/Washers Circuit Diagram, see SCHEMATICS AND DIAGRAMS .
