Removal - Speed Control Switch

WARNING: Refer to RESTRAINTS - SERVICE INFORMATION before attempting any door, seat, steering wheel, steering column, or instrument panel component diagnosis or service. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury. Refer to WARNING .

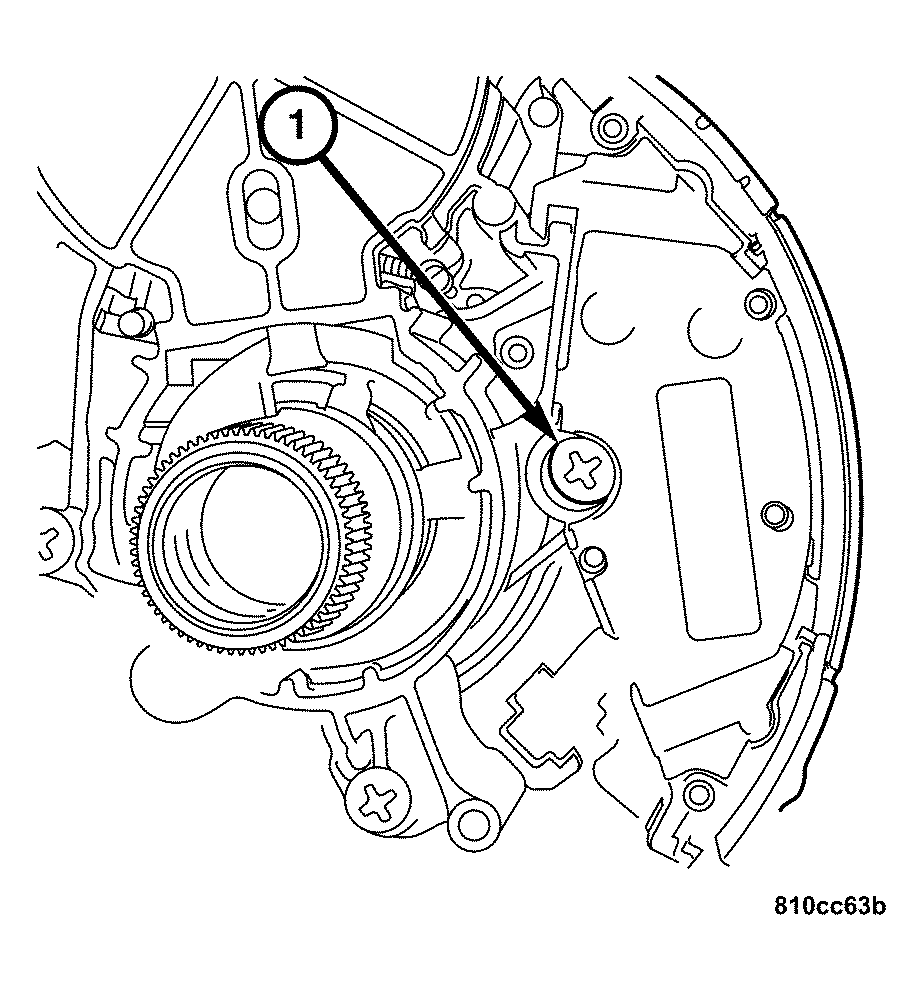

Fig 1: Removing/Installing Screw Attaching Speed Control Switch To Multifunction Switch
GC0032378Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Remove the steering wheel. Refer to REMOVAL .
  3. Remove the clockspring. Refer to REMOVAL .
  4. Remove the lower instrument panel. Refer to REMOVAL .
  5. Remove the screw (1) attaching the speed control switch to the multifunction switch.
  6. Disconnect the electrical connectors on the steering column.
  7. Disconnect the wiring from the column.
