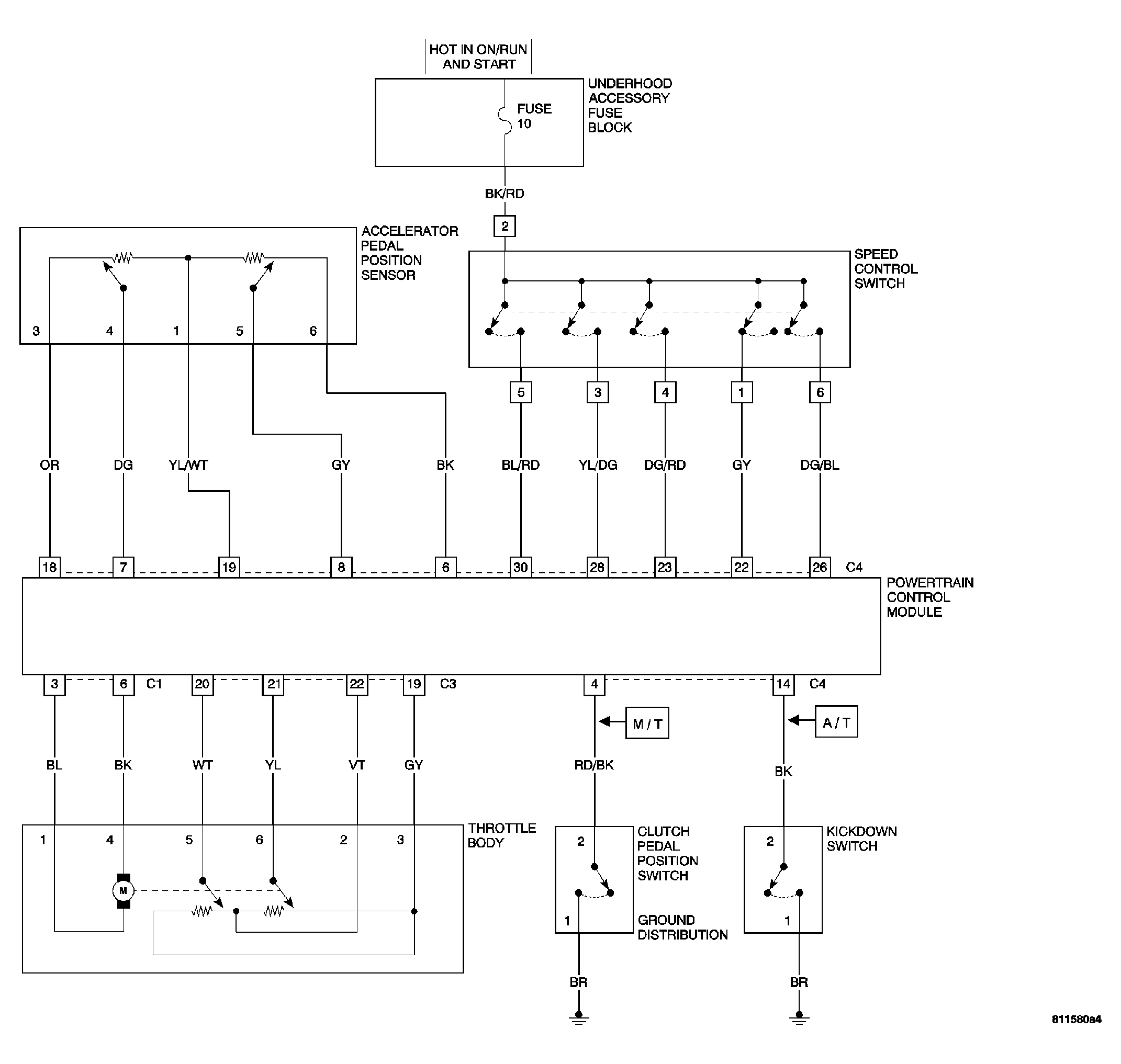

Home >> Chrysler >> 2007 >> Crossfire Base, 2D Convertible >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System - Electrical Diagnostics >> Speed Control - Electrical Diagnostics >> Schematics And Diagrams >> Speed Control System Circuit Diagram
