Home >> Chrysler >> 2007 >> Aspen 5.7 2, RWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0197 To P0330 >> P0221-Throttle Position Sensor 2 Performance >> Circuit Schematic

Circuit Schematic

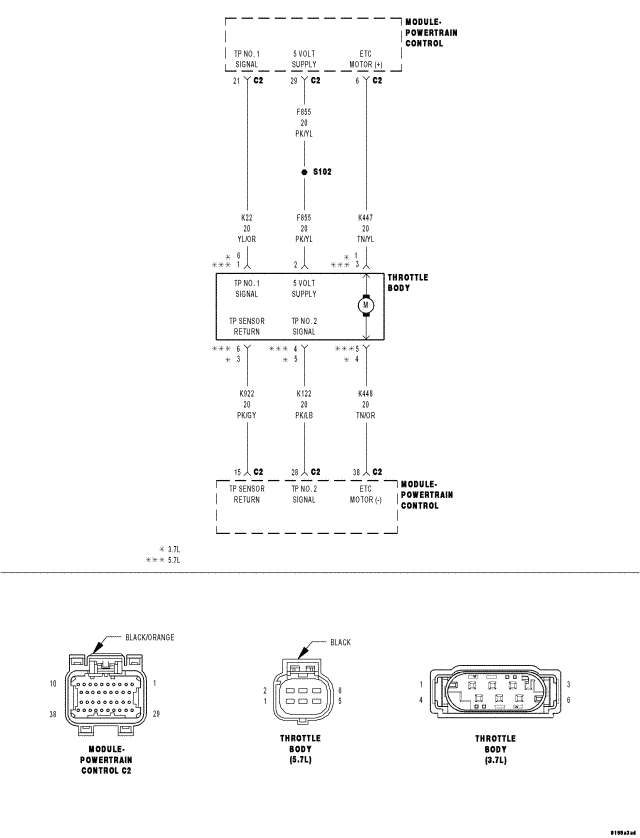

Fig 1: Electronic Throttle Control Motor Circuit Schematic

GC0058121

Courtesy of CHRYSLER LLC
