Circuit Schematic

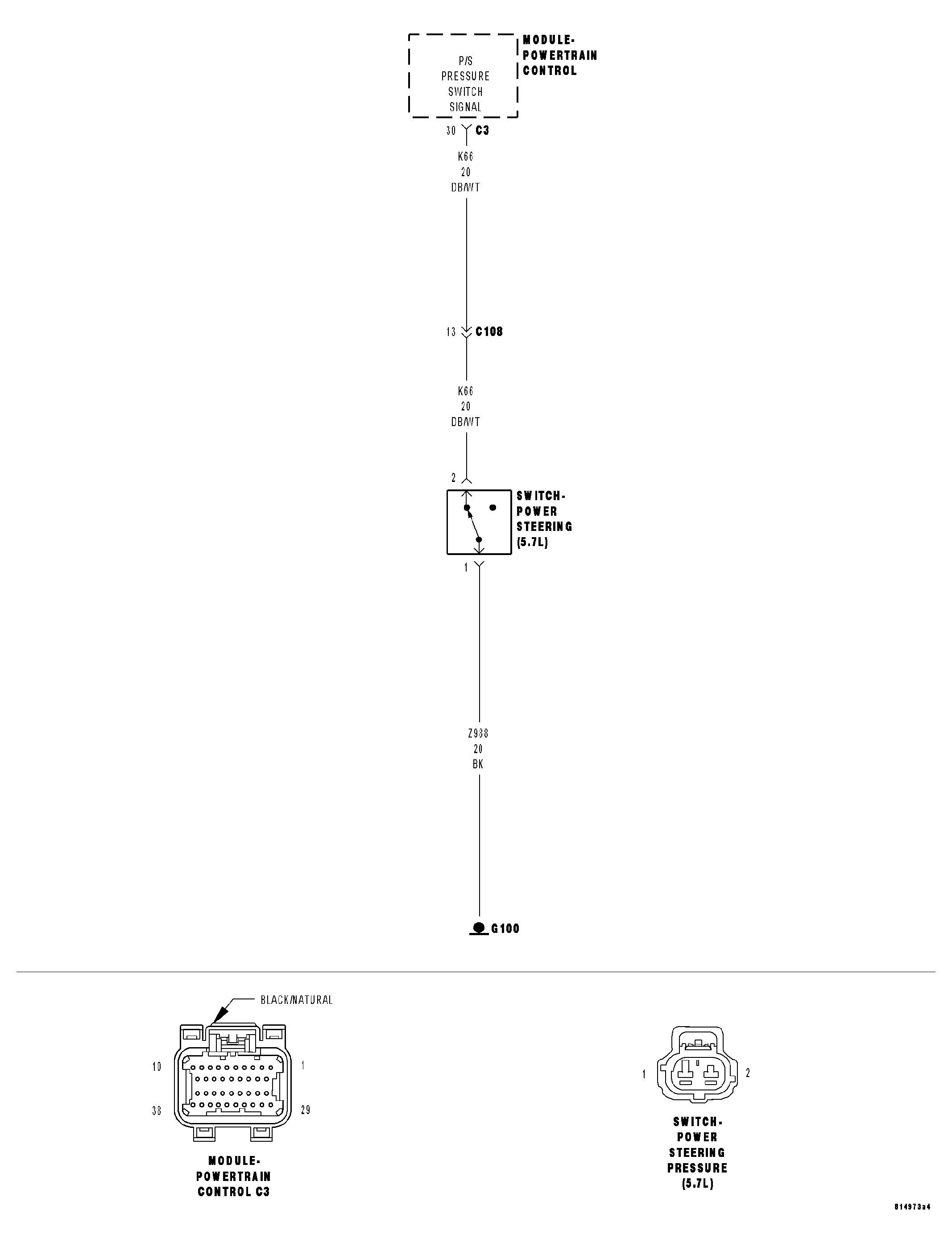

Fig 1: Power Steering Pressure Switch Circuit Schematic
GC0011606Courtesy of CHRYSLER LLC
