Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brakes Module | Left front of engine compartment. See Figure. |

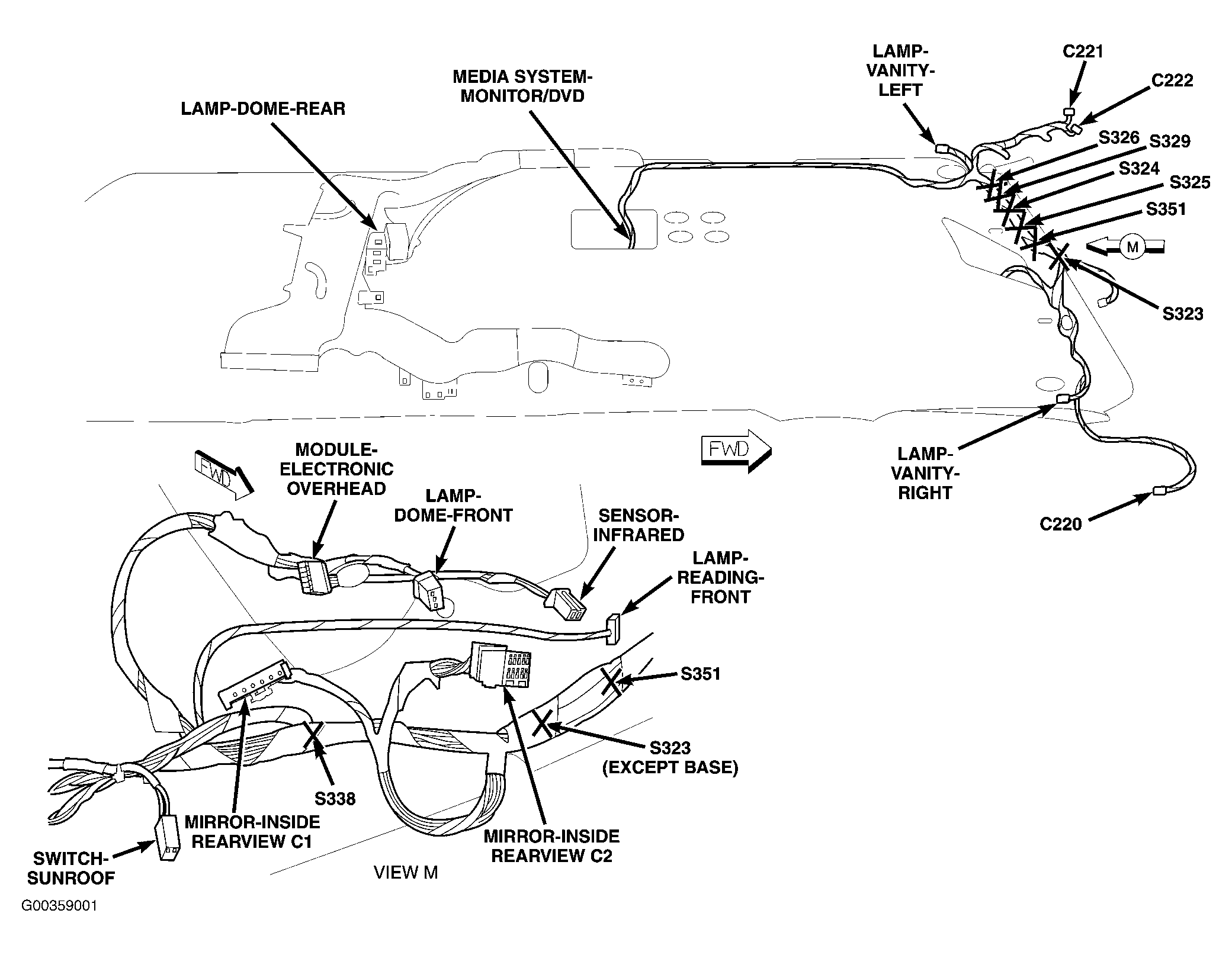

| Electronic Overhead Module | Front center of headliner. See Figure. |
| Front Blower Power (ATC) Module | Right end of HVAC. See Figure. |
| Front Control IPM Module | At integrated power module. See Figure. |
| Front Control Module | At integrated power module. See Figure. |
| Fuel Pump Module | Top of fuel tank. See Figure. |
| Hands Free Module | Right end of dash. See Figure. |
| Heated Seat Module | Right rear quarterpanel. See Figure. |
| Memory Mirror Module, Driver | Rear of left front door. See Figure. |
| Memory Mirror Module, Passenger | Rear of right front door. See Figure. |
| Occupant Classification Module | Under passenger seat. See Figure. |
| Occupant Restraint Controller Module | Under center console. See Figure. |
| Power Liftgate Module | Left rear cargo area. See Figure. |

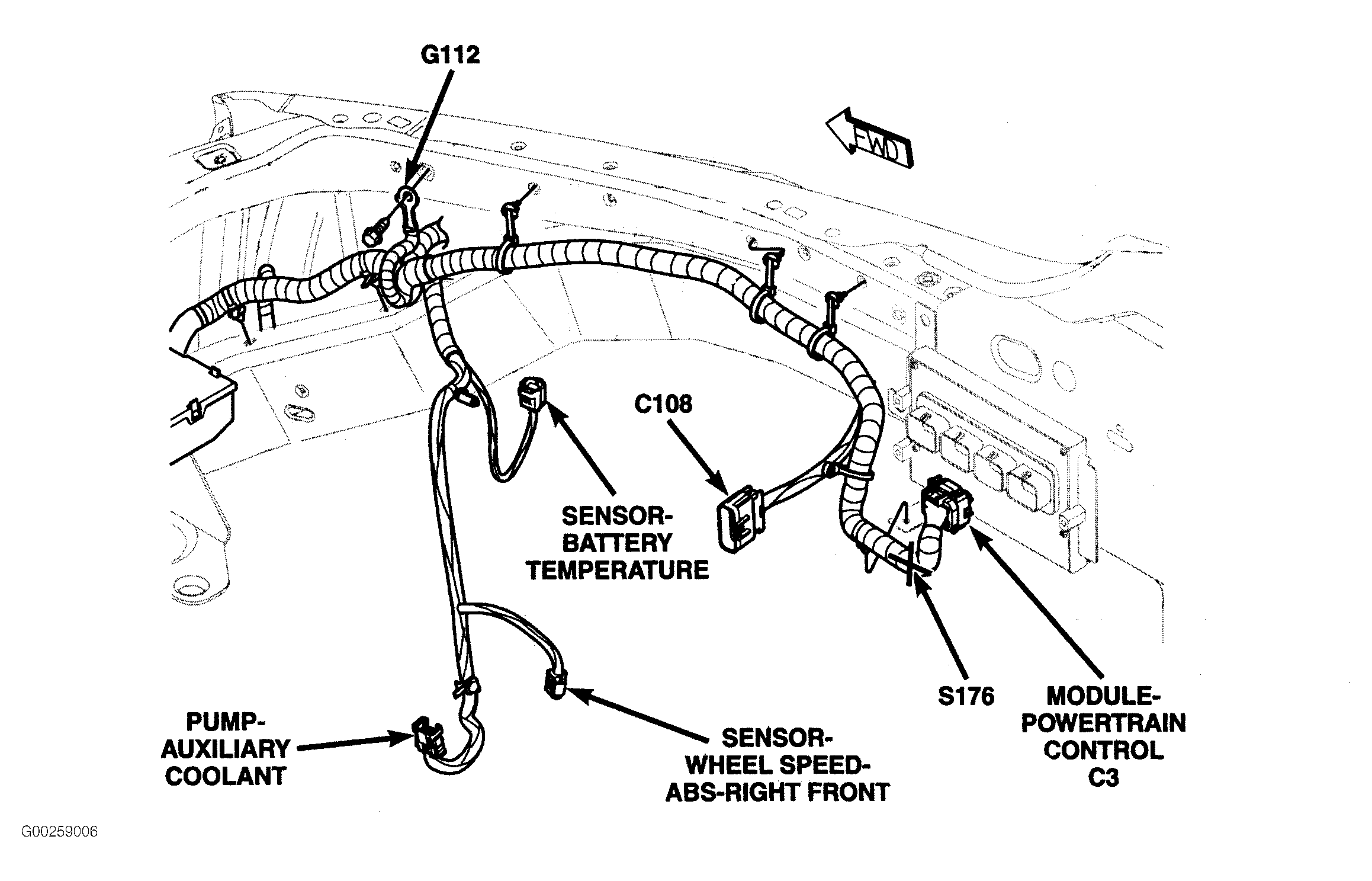

| Powertrain Control Module | Right side of engine compartment. See Figure. |
| Seat Memory Module | Under driver seat. See Figure. |
| Sentry Key Remote Entry Module | Top right of steering column. See Figure. |
| Sunroof Module | Rear of sunroof. See Figure. |
