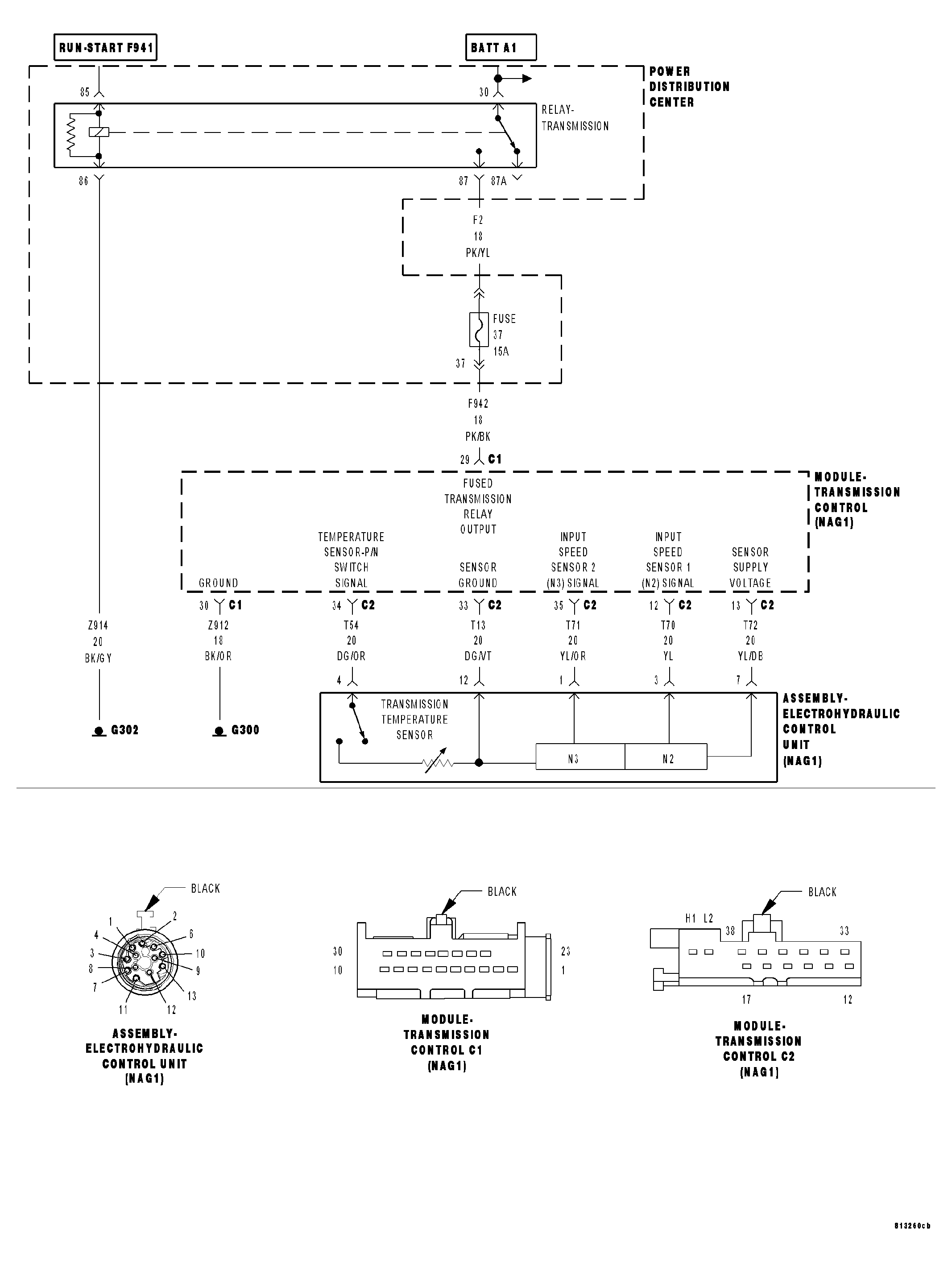

Home >> Chrysler >> 2007 >> 300 Limited, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Nag1 Automatic Transmission - Electrical Diagnostics >> DTC Troubleshooting >> P2784-Input Speed Sensor 1/2 Correlation >> Circuit Schematic
