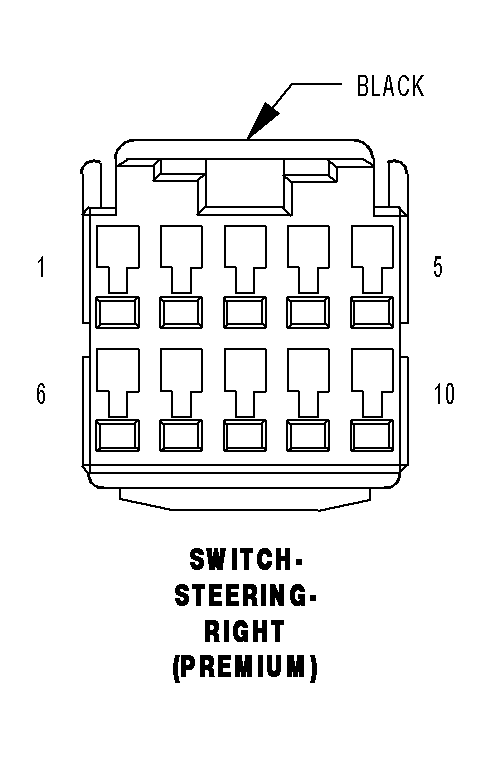

Right Steering Switch (Premium) Connector End View
SWITCH-STEERING-RIGHT (PREMIUM) - BLACK 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | D503 20WT/OR | LIN LIGHTING |
| 2 | X903 20GY/LG | HORN SWITCH RETURN |
| 3 | G106 20VT/OR | EVIC MUX SIGNAL 1 |
| 4 | G206 20VT/OR | EVIC MUX SIGNAL 2 |
| 5 | D500 20WT | LIN BUS |
| 6 | D502 20WT/OR | LIN SLAVE FEED |
| 7 | X3 20DG/VT | HORN SWITCH SIGNAL |
| 8 | D501 20WT/LG | LIN SLAVE RETURN |
| 9 | G907 20VT | EVIC/NAV MUX RETURN |
| 10 | - | - |
