Rear Power Outlet (Hatchback) Connector End View
Rear Power Outlet (Hatchback) Connector End View

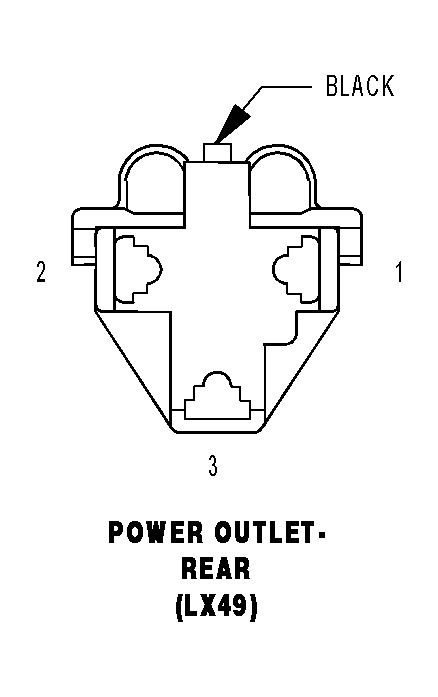

POWER OUTLET-REAR (LX49) - BLACK 3 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A105 16DB/RD
FUSED B(+)
2
-
-
3
Z914 16BK/GY
GROUND
