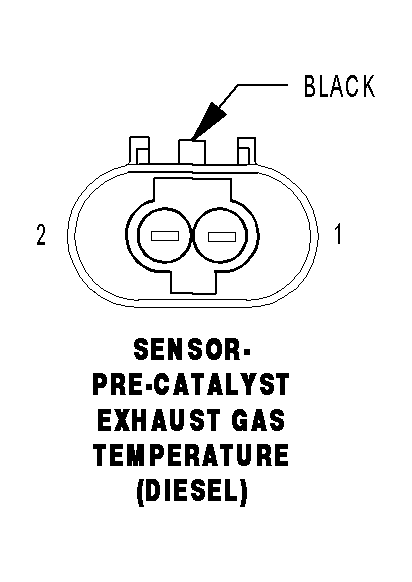

Pre Catalyst Exhaust Gas Temperature Sensor (Diesel) Connector End View
SENSOR-PRE-CATALYST EXHAUST GAS TEMPERATURE (DIESEL) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K916 20BR/WT |
PRE-CATALYST EXHAUST GAS TEMPERATURE SENSOR GROUND |
| 2 |
K352 20YL |
PRE-CATALYST EXHAUST GAS TEMPERATURE SENSOR SIGNAL |
