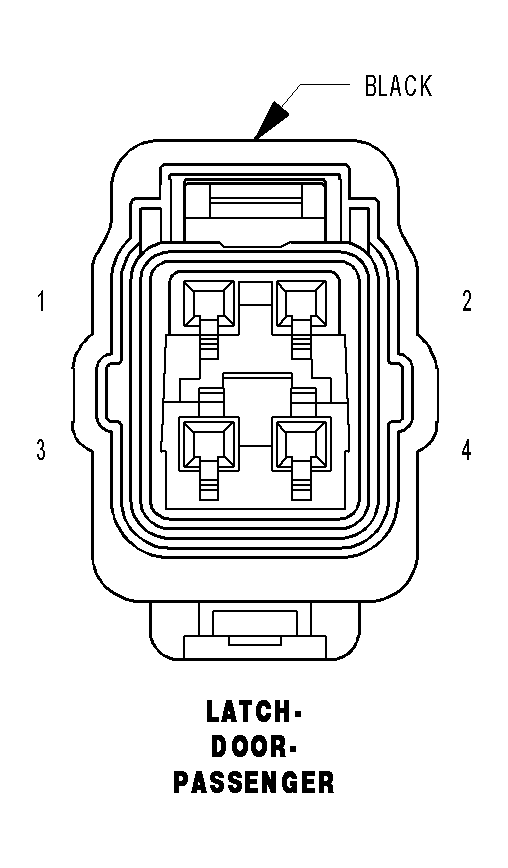

Passenger Door Latch Connector End View
LATCH-DOOR-PASSENGER - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G74 20VT/WT |
PASSENGER DOOR AJAR SWITCH SENSE |
| 2 |
Z911 20BK/WT |
GROUND |
| 3 |
P303 20TN |
PASSENGER DOOR UNLOCK DRIVER |
| 4 |
P392 20LG/DB |
DOOR LOCK DRIVER |
