Mode Door Actuator Connector End View

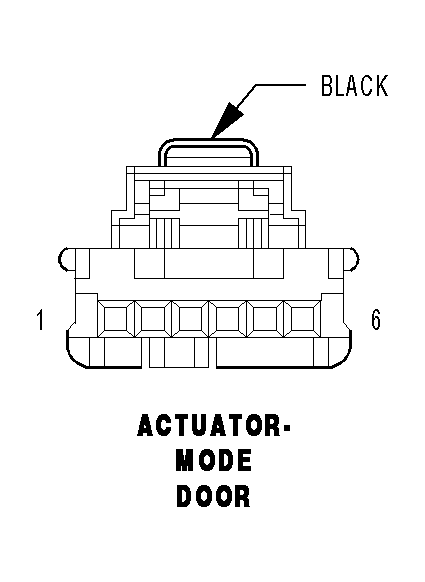

ACTUATOR-MODE DOOR - BLACK 6 WAY

GCLX680003Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C66 20DB/OR MODE DOOR COMMON DRIVER
2 - -
3 - -
4 - -
5 - -
6 C266 20OR/DB MODE DOOR DRIVER
