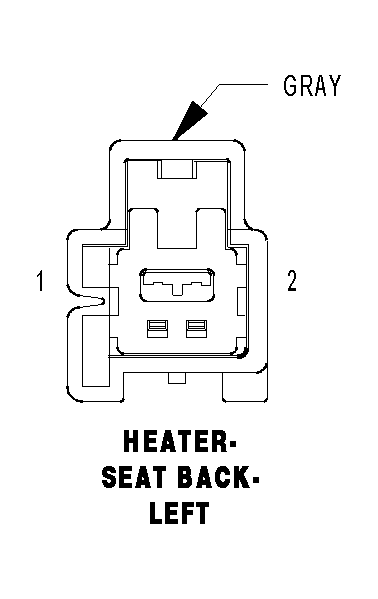

Left Seat Back Heater Connector End View

HEATER-SEAT BACK-LEFT - GRAY 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P187 20LG/BR	LEFT SEAT HEATER B(+) DRIVER
2	Z912 20BK/OR (LHD)	GROUND
2	Z911 20BK/OR (RHD)	GROUND
