Glow Plug 4 (Diesel) Connector End View

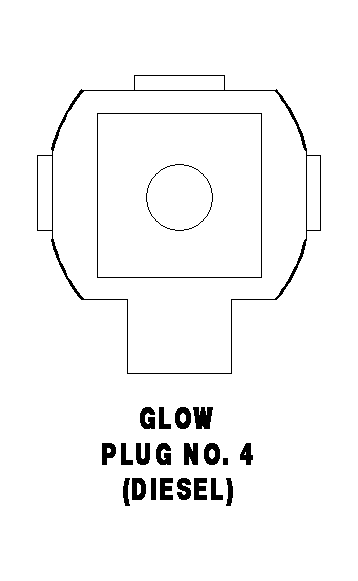

GLOW PLUG NO. 4 (DIESEL) - 1 WAY

GCLX680461Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A208 16BK/YL GLOW PLUG NO. 4 CONTROL
