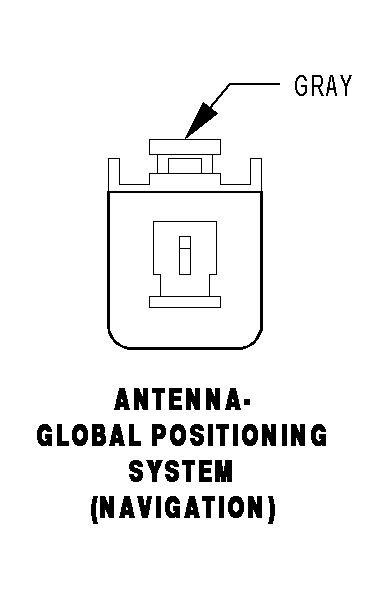

Global Positioning System Antenna (Navigation) Connector End View

ANTENNA-GLOBAL POSITIONING SYSTEM (NAVIGATION) - GRAY 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	D8 6WT/LB	GPS ANTENNA SIGNAL
2	D108 LB/WT	GPS ANTENNA SHIELD
