Electric Heated Backlite (Power) Connector End View
Electric Heated Backlite (Power) Connector End View

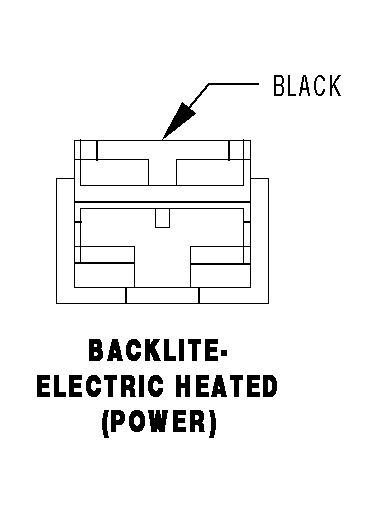

BACKLITE-ELECTRIC HEATED (POWER) - BLACK 1 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
C215 14LB
ELECTRIC HEATED BACKLITE DRIVER
Courtesy of DAIMLERCHRYSLER CORP.
