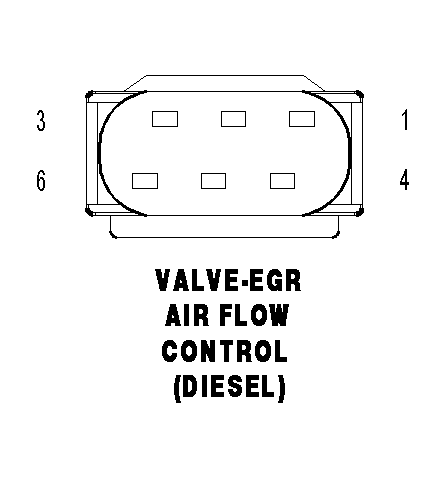

EGR Airflow Control Valve (Diesel) Connector End View
VALVE-EGR AIR FLOW CONTROL (DIESEL) - 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | K315 20GY/PK | EGR AIR FLOW CONTROL VALVE MOTOR (-) |
| 2 | K390 20DG/PK | EGR AIR FLOW CONTROL VALVE POSITION SENSOR RETURN |
| 3 | K313 20DG/GY | EGR AIR FLOW CONTROL VALVE POSITION SENSOR SUPPLY |
| 4 | K314 20GY/RD | EGR AIR FLOW CONTROL VALVE MOTOR (+) |
| 5 | - | - |
| 6 | K312 20GY/OR | EGR AIR FLOW CONTROL VALVE POSITION SENSOR SIGNAL |
