Door Liftgate Latch (Hatchback) Connector End View

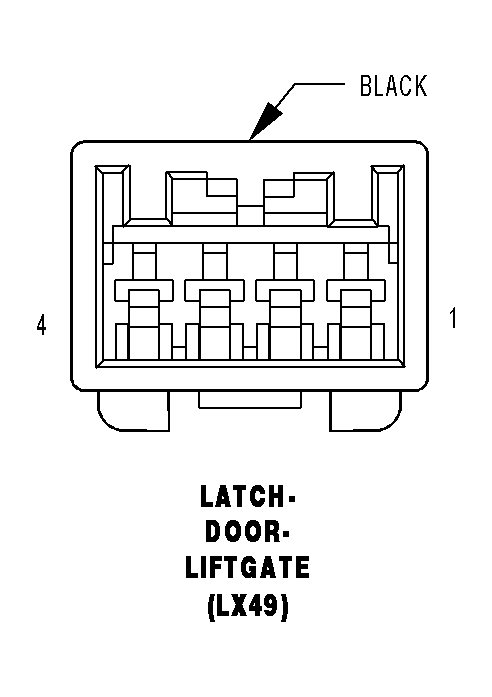

LATCH-DOOR-LIFTGATE (LX49) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G78 20VT/OR |
DECKLID/LIFTGATE AJAR SWITCH SENSE |
| 2 |
Z914 20BK/GY |
GROUND |
| 3 |
Z914 20BK/GY |
GROUND |
| 4 |
P31 20TN/YL |
DECKLID/LIFTGATE RELEASE DRIVER |
