A/C Compressor Clutch (Diesel) Connector End View

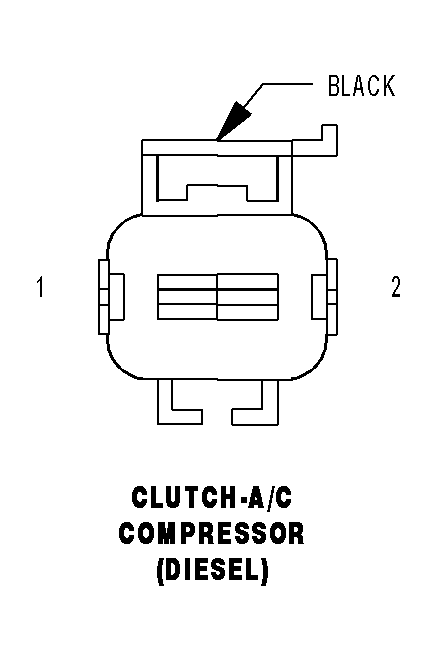

CLUTCH-A/C COMPRESSOR (DIESEL) - BLACK 2 WAY

GCLX680453Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C3 18BL/DG A/C CLUTCH RELAY OUTPUT
2 Z925 18BR GROUND
