Special Tools

WARNING: This page is about a different variant/trim than selected.

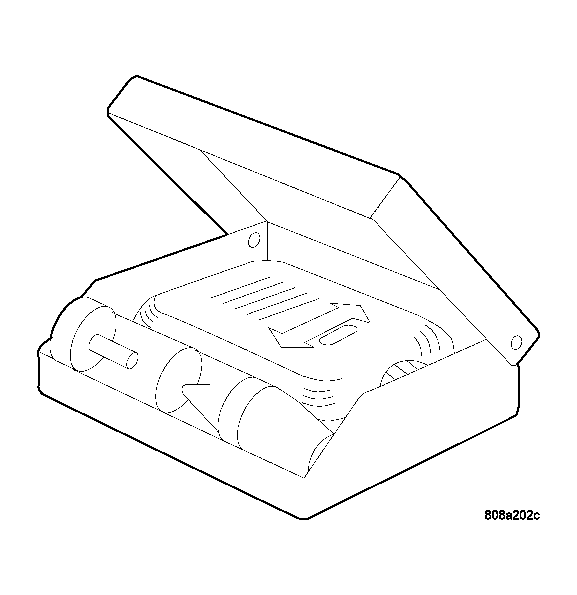

Fig 1: Combustion Leak Tester C-3685-A

GC0040341

Courtesy of CHRYSLER LLC

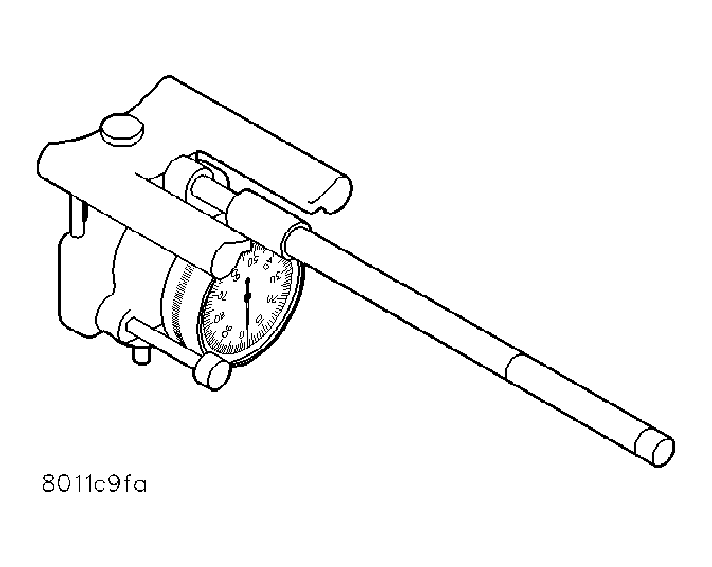

Fig 2: Indicator Bore Size C-119

GC0040337

Courtesy of CHRYSLER LLC

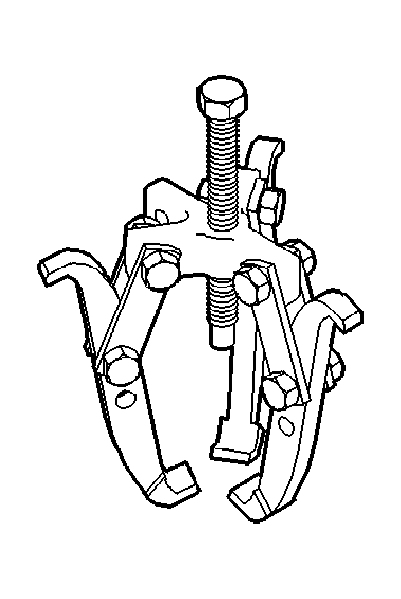

Fig 3: Puller 1023

GC0040348

Courtesy of CHRYSLER LLC

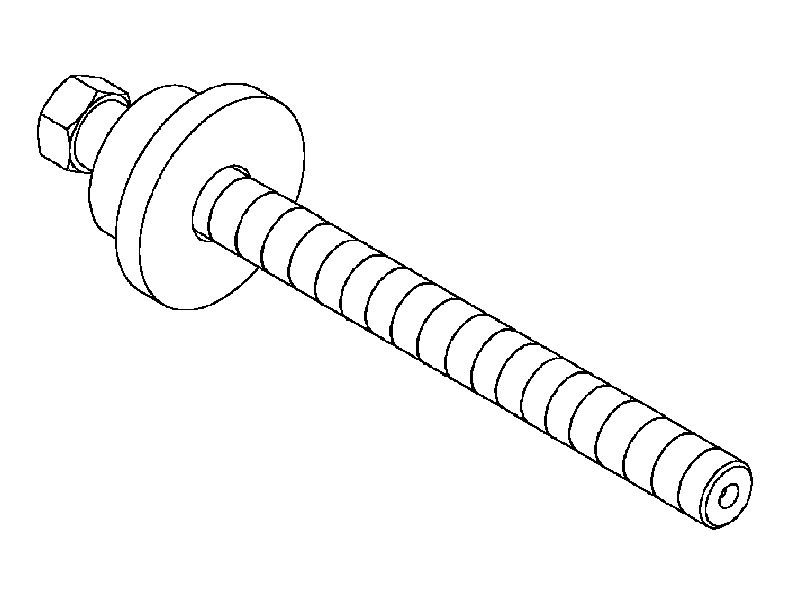

Fig 4: Crankshaft Damper Installer 8512

GC0040333

Courtesy of CHRYSLER LLC

Fig 5: Crankshaft Damper Remover Insert - 8513-A

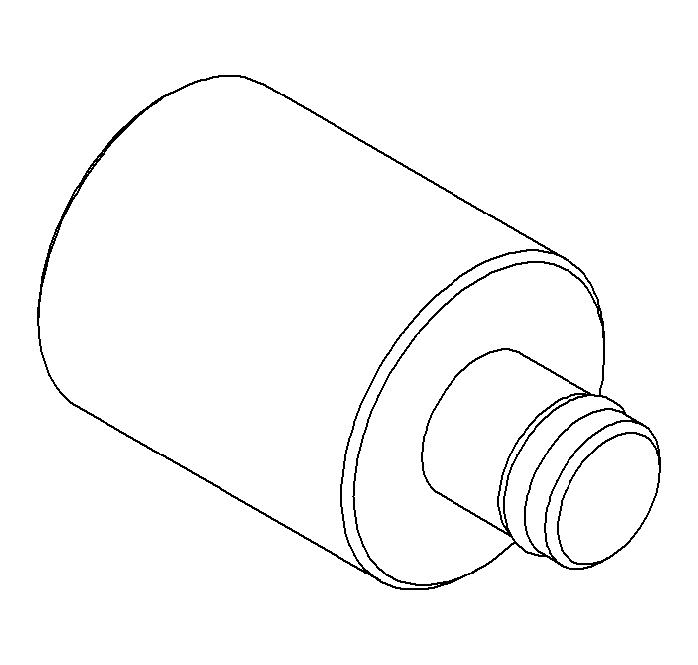

GC0040344

Courtesy of CHRYSLER LLC

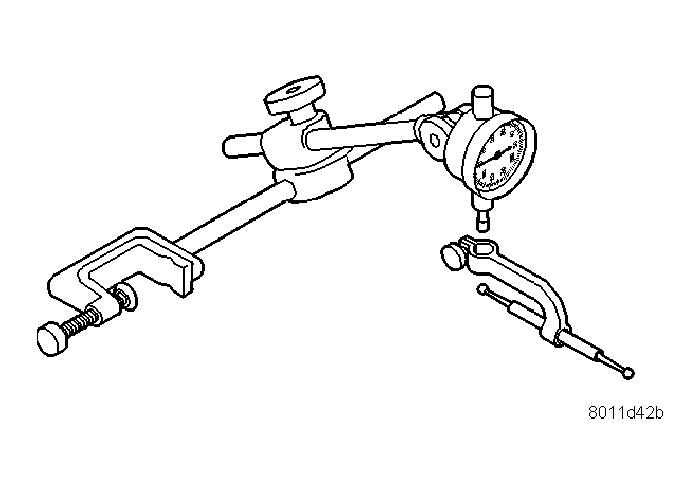

Fig 6: Dial Indicator C-3339

GC0040335

Courtesy of CHRYSLER LLC

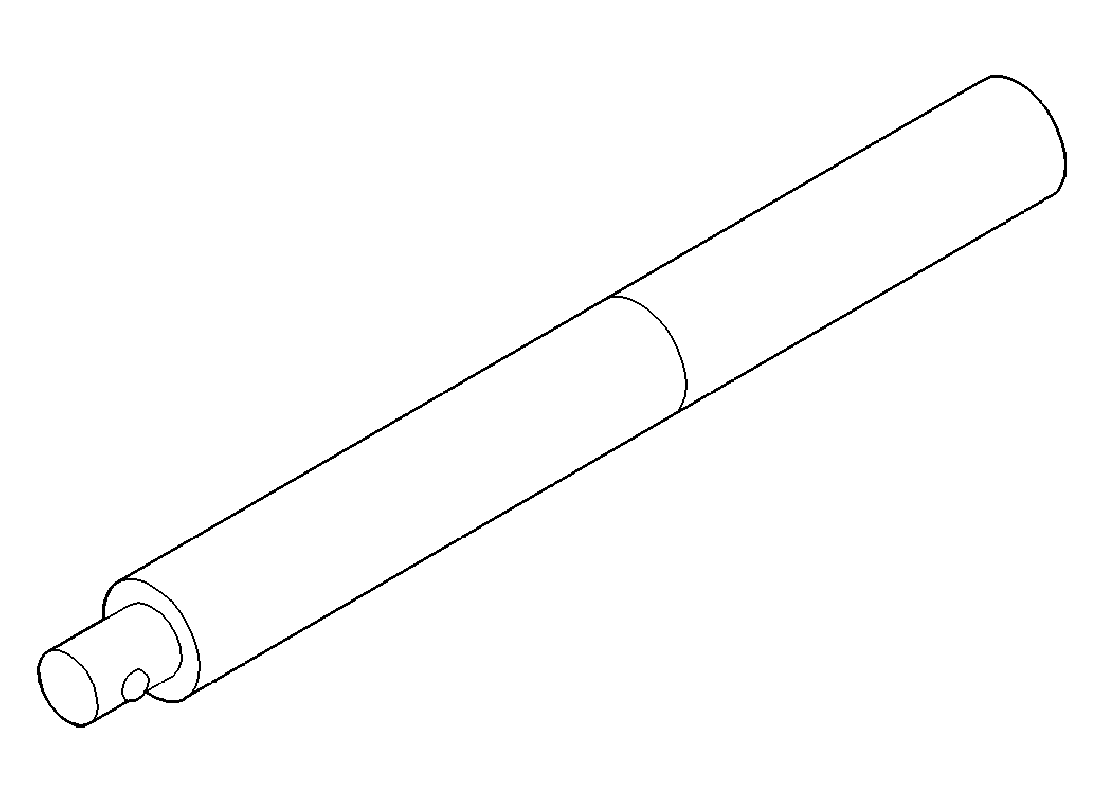

Fig 7: Driver Handle C-4171

GC0040330

Courtesy of CHRYSLER LLC

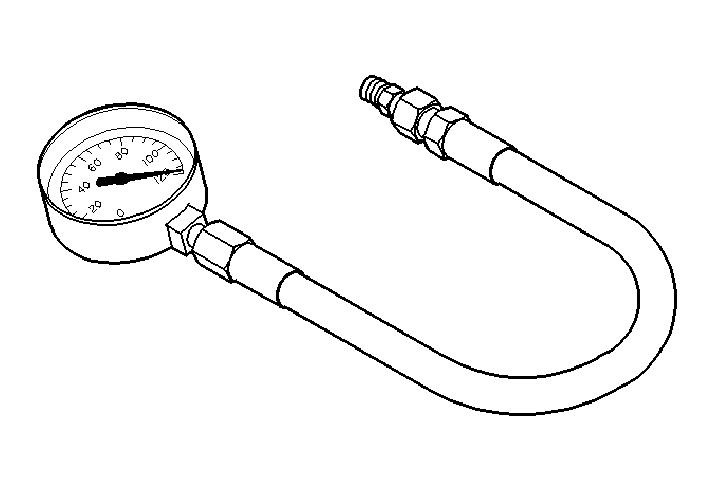

Fig 8: Pressure Gauge C-3292

GC0040338

Courtesy of CHRYSLER LLC

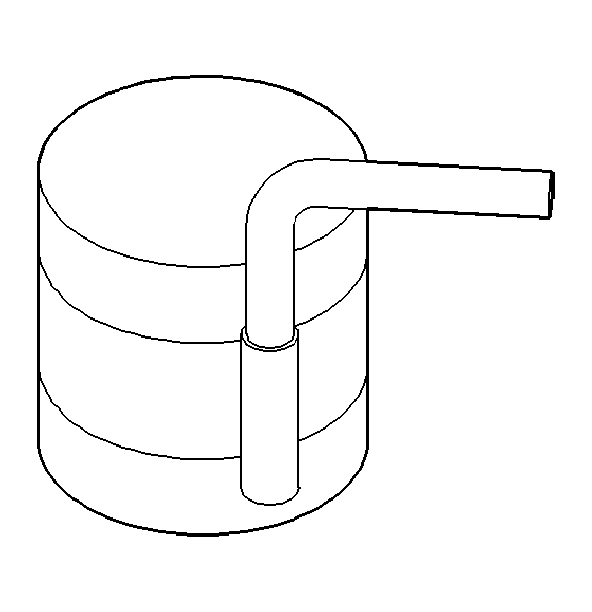

Fig 9: Piston Ring Compressor C-385

GC0040339

Courtesy of CHRYSLER LLC

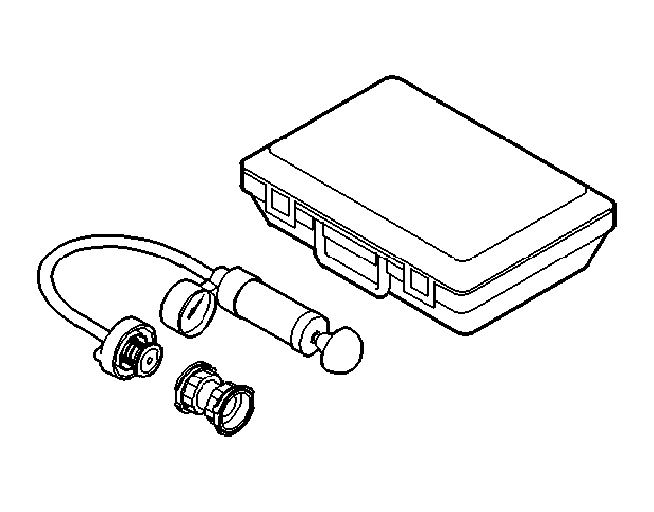

Fig 10: Cooling System Tester 7700

GC0040340

Courtesy of CHRYSLER LLC

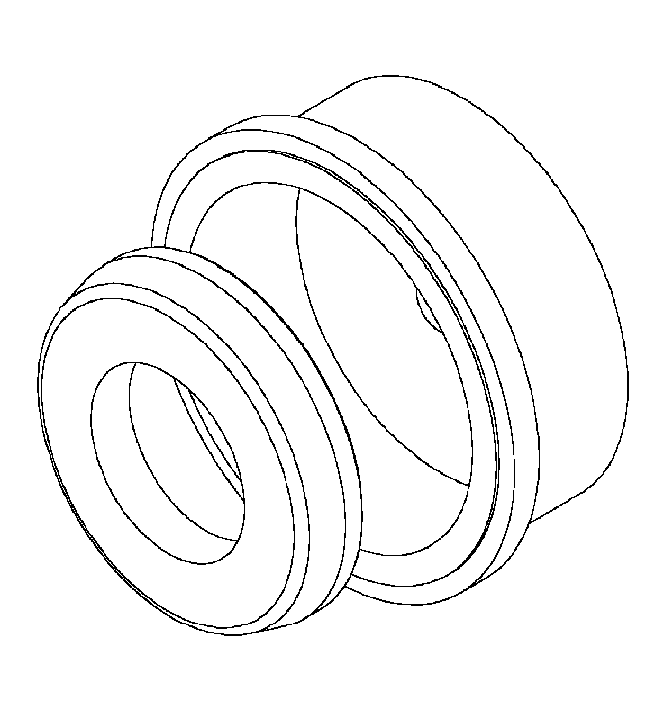

Fig 11: Rear Crankshaft Seal Installer 8349

GC0040331

Courtesy of CHRYSLER LLC

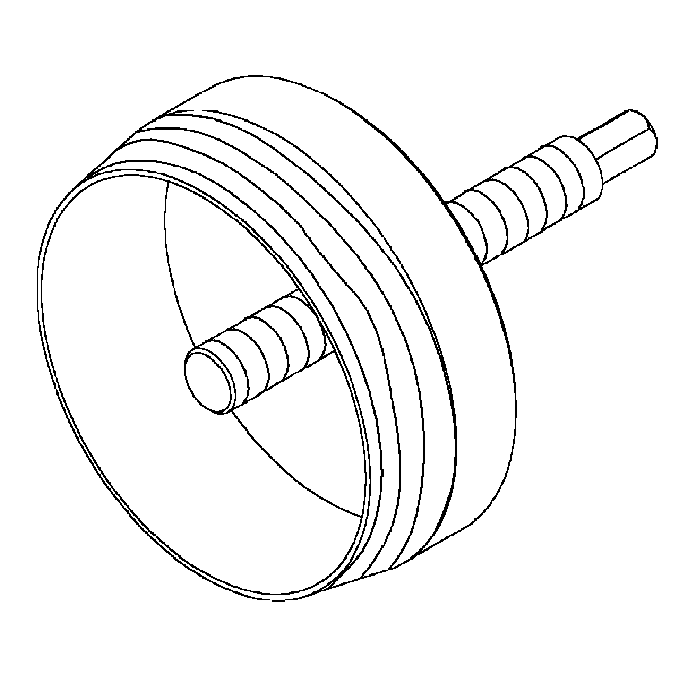

Fig 12: Rear Crankshaft Seal Remover 8506

GC0040332

Courtesy of CHRYSLER LLC

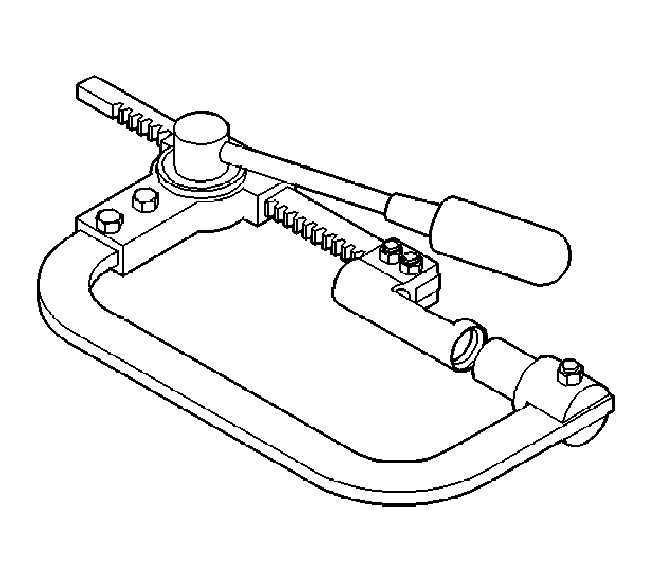

Fig 13: Valve Spring Compressor C-3422-B

GC0040336

Courtesy of CHRYSLER LLC

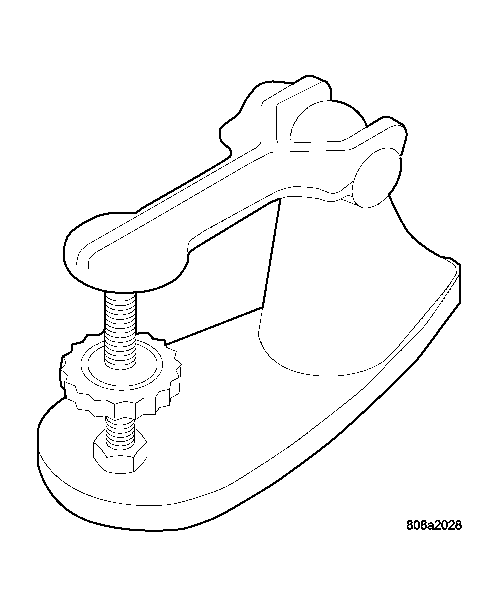

Fig 14: Valve Spring Tester C-647

GC0040334

Courtesy of CHRYSLER LLC

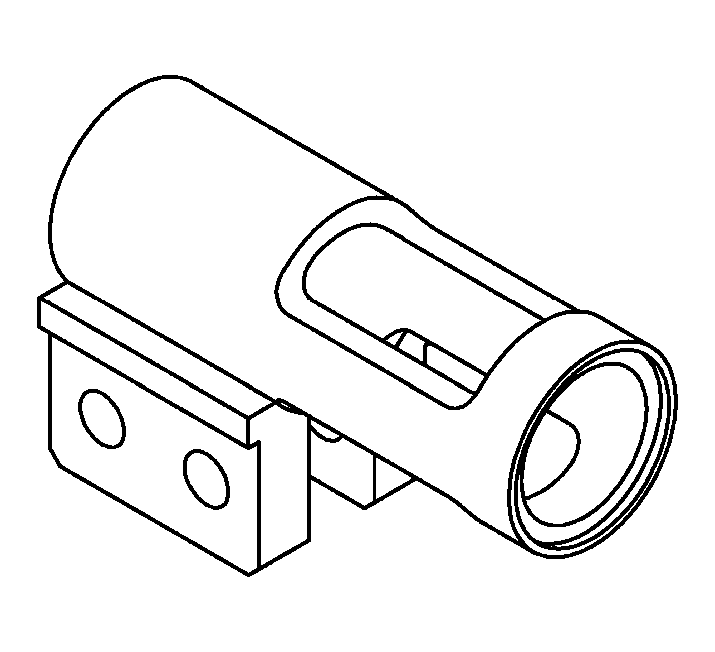

Fig 15: Adapter, Valve Spring Compressor Off-vehicle 8464

GC0040343

Courtesy of CHRYSLER LLC

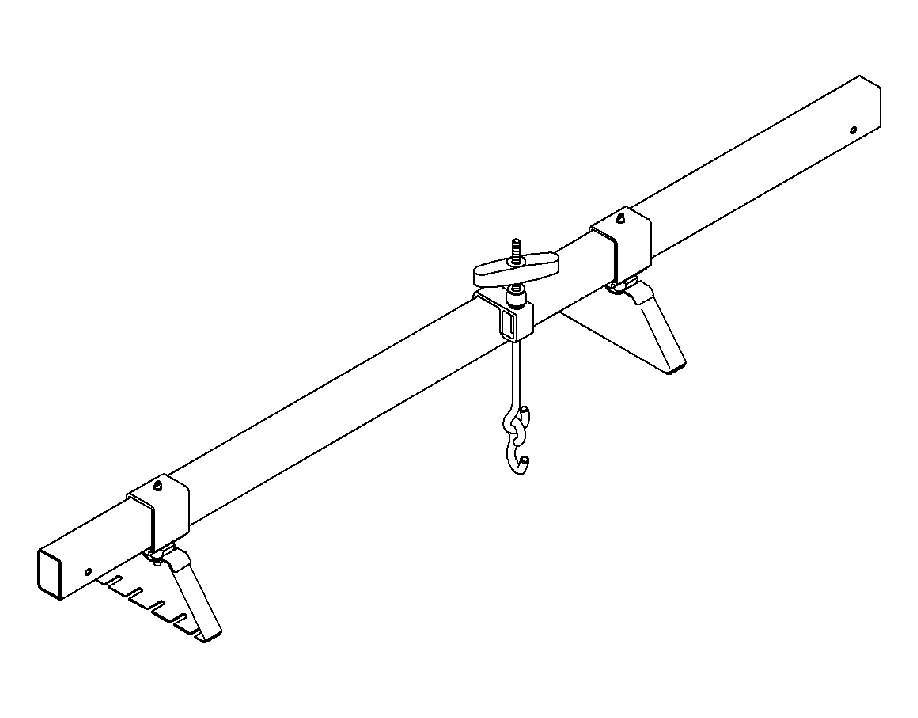

Fig 16: Engine Support Fixture 8534

GC0040342

Courtesy of CHRYSLER LLC

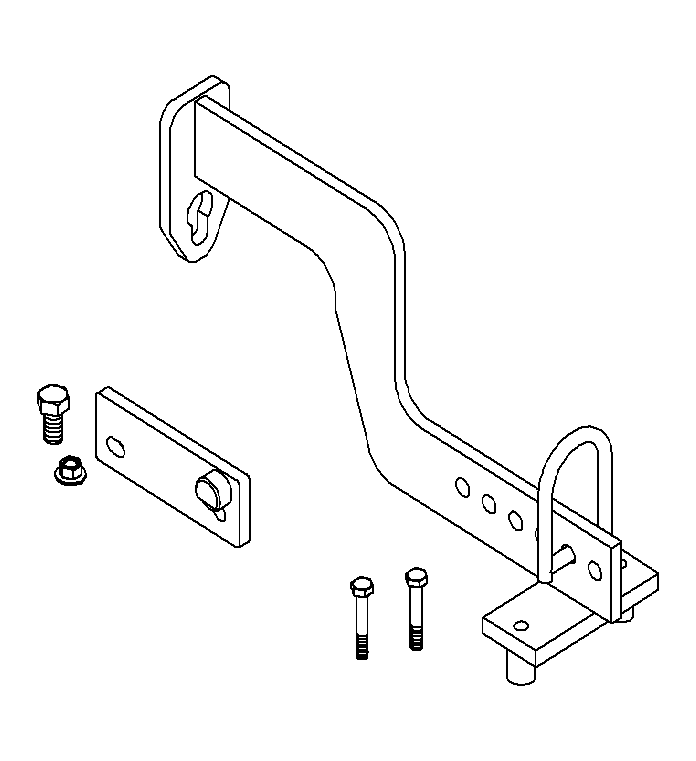

Fig 17: Engine Lift Fixture And Adapter

GC0040349

Courtesy of CHRYSLER LLC

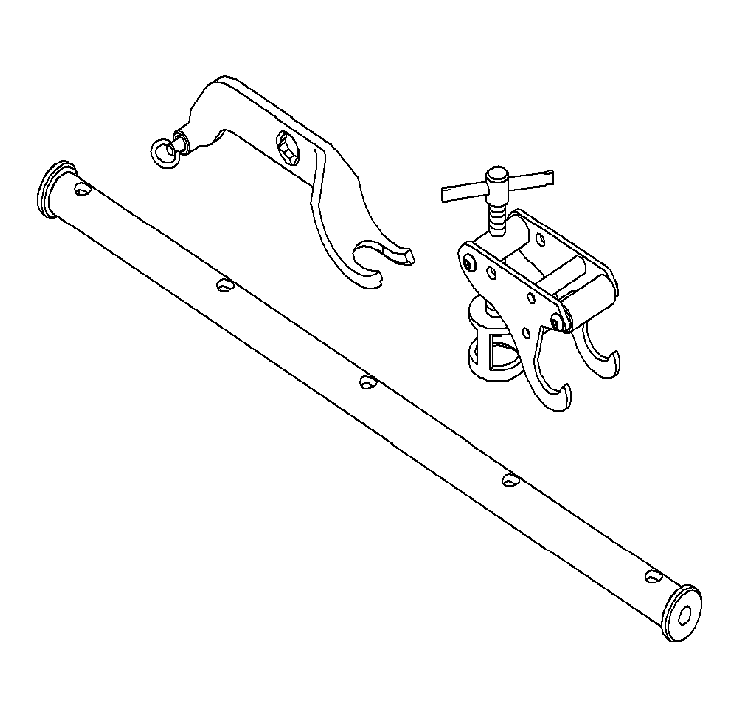

Fig 18: Valve Spring Compressor 9065A

GC0040350

Courtesy of CHRYSLER LLC

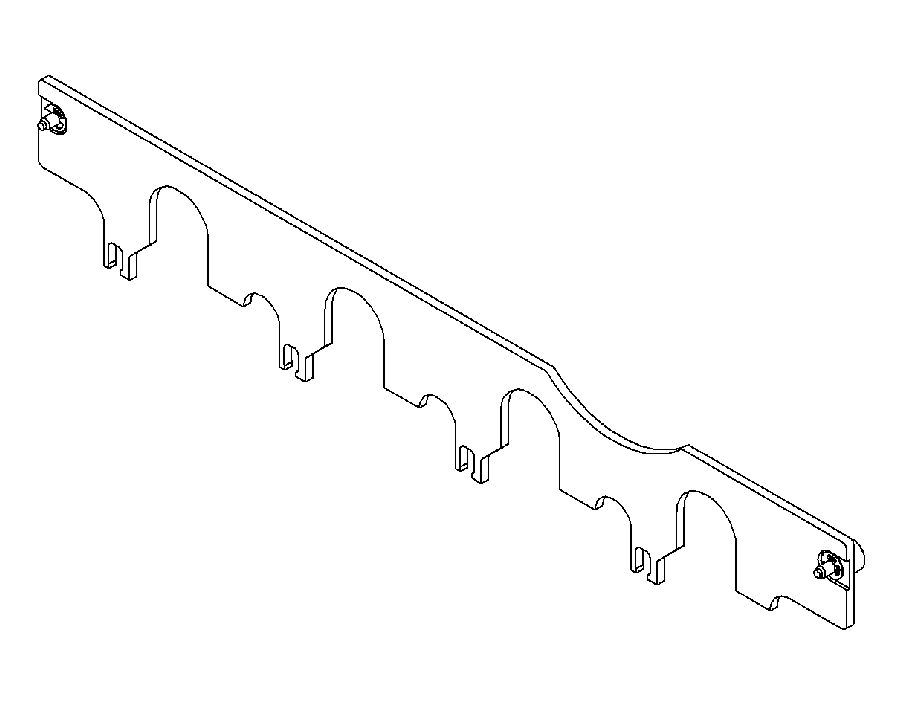

Fig 19: Pushrod Retaining Plate - 9070

GC0040345

Courtesy of CHRYSLER LLC

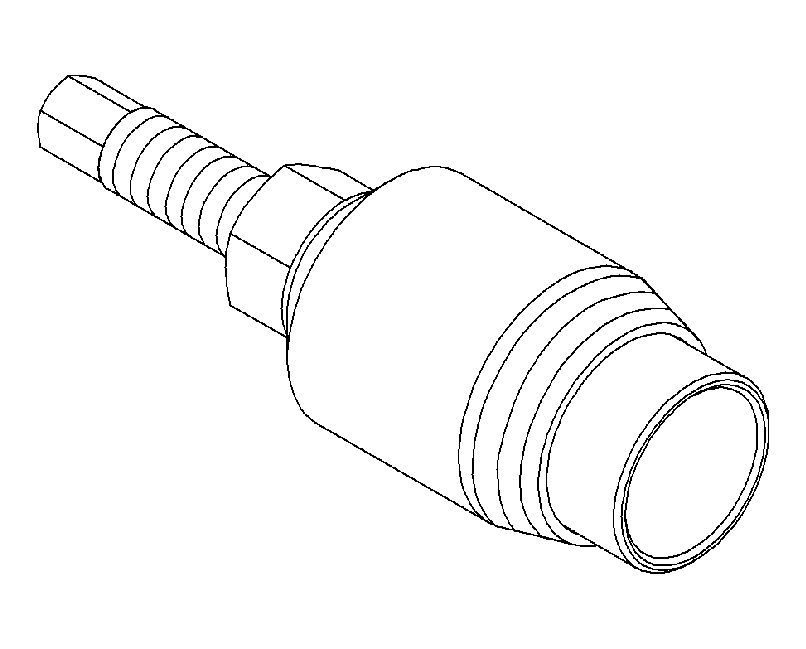

Fig 20: Front Crank Seal Remover - 9071

GC0040347

Courtesy of CHRYSLER LLC

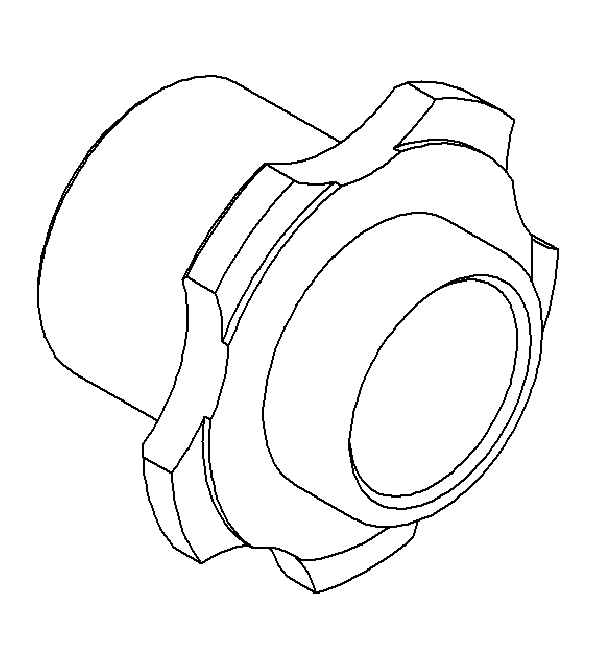

Fig 21: Front Crank Seal Installer 9072

GC0040346

Courtesy of CHRYSLER LLC
