Engine Block: Crankshaft: Installation

WARNING: This page is about a different variant/trim than selected.

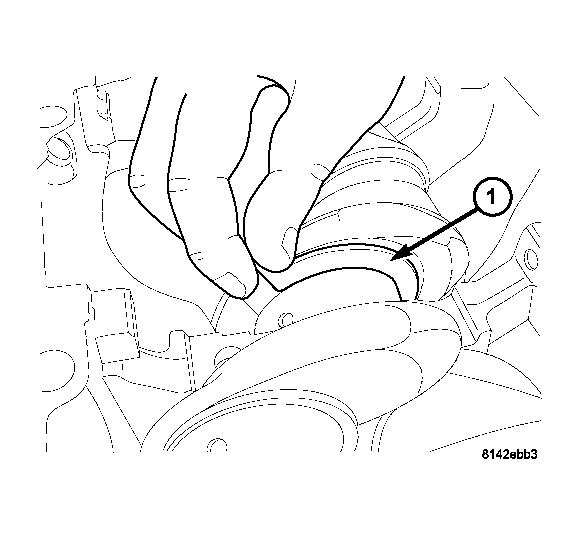

Fig 1: Remove/Install Thrust Washer
GC0003978Courtesy of CHRYSLER LLC
  1. Select the proper main bearings. Refer to STANDARD PROCEDURE .
  2. Install main bearings in block and caps, and lubricate bearings.
  3. Position the crankshaft into the cylinder block.
  4. Install the thrust washers (1).

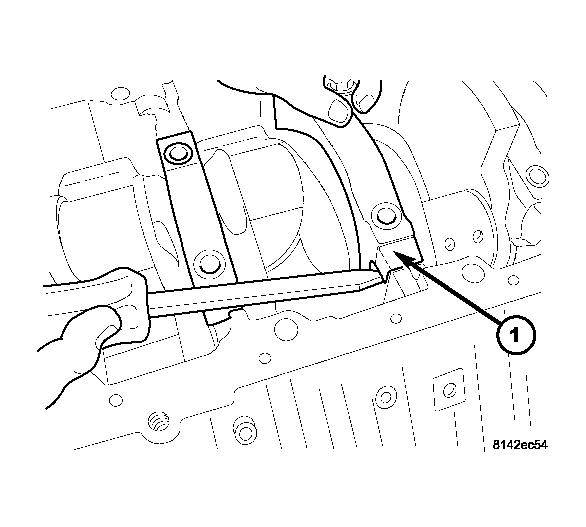

    Fig 2: Main Bearing Cap Removal
    GC0003972Courtesy of CHRYSLER LLC
    1 - MAIN CAP

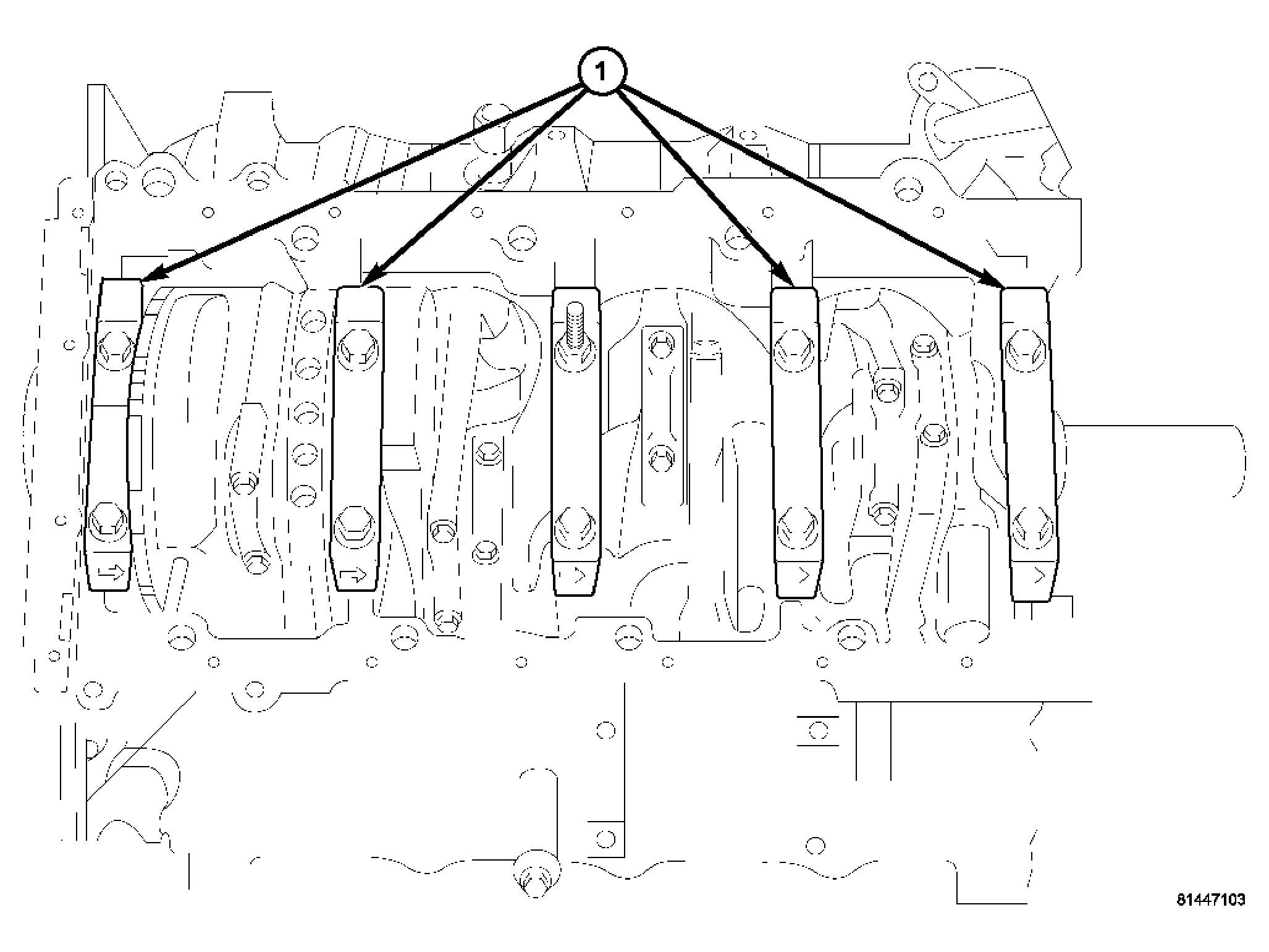

    Fig 3: Main Bearing Caps
    GC0003973Courtesy of CHRYSLER LLC
    1 - MAIN BEARING CAPS
    NOTE: The main cap crossbolts are torqued after final torque of the main cap bolts. Always use a new washer/seal on crossbolts.
  5. Clean and oil all cap bolts. Install all main bearing caps (1). Install all cap bolts and alternately tighten in two steps using the following sequence.

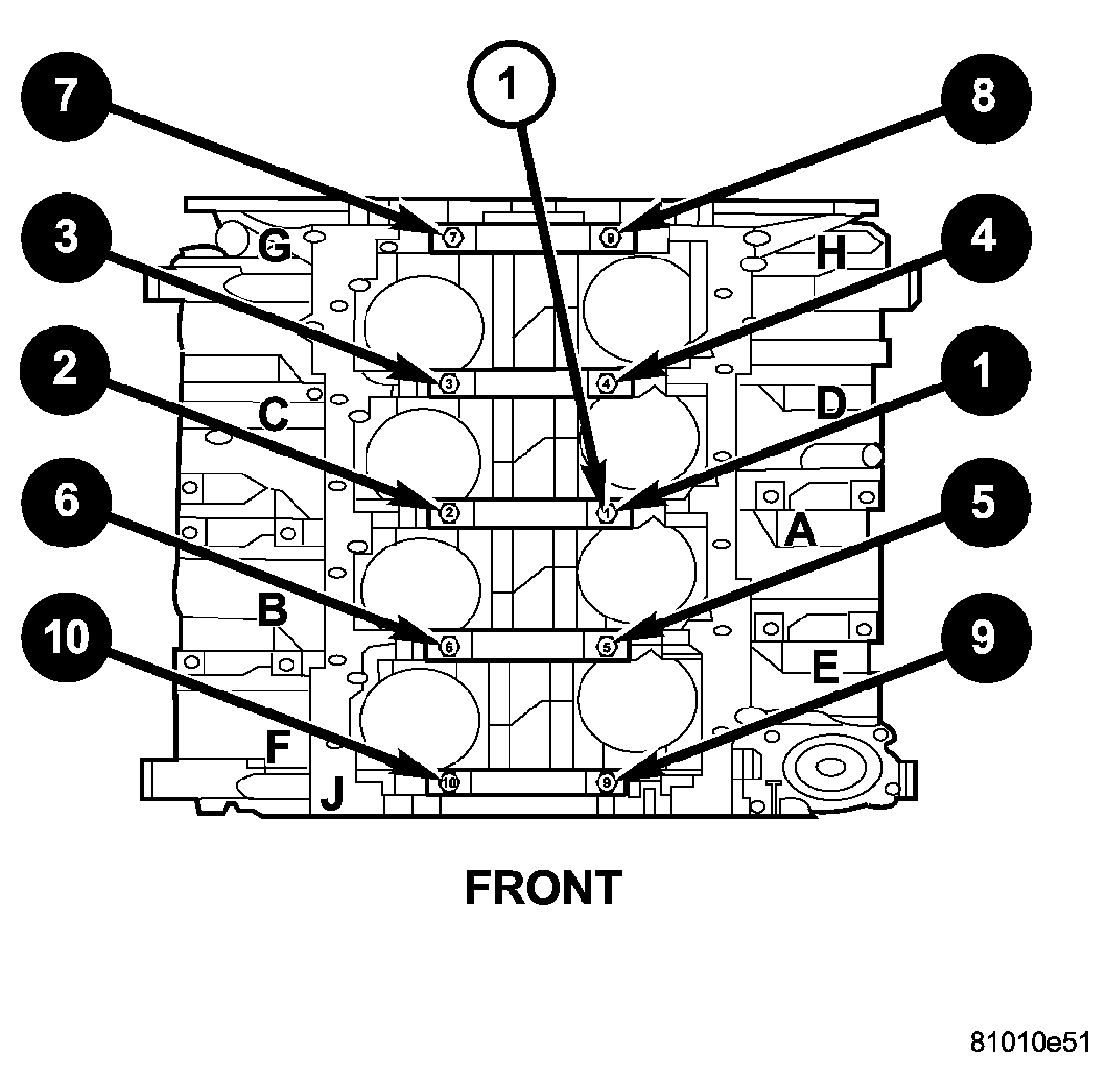

    Fig 4: Main Bearing Cap Torque Sequence
    GC0003979Courtesy of CHRYSLER LLC
  6. Step 1 - 27 N.m ( 20 ft. lbs.).
  7. Step 2 - Turn main cap bolts an additional 90°.
  8. Install the crossbolts with new washer/gasket. Starting with crossbolt A, tighten each crossbolt to 28 N.m ( 21 ft. lbs.).
  9. Repeat crossbolt tightening procedure.
  10. Measure crankshaft end play. Refer to STANDARD PROCEDURE .

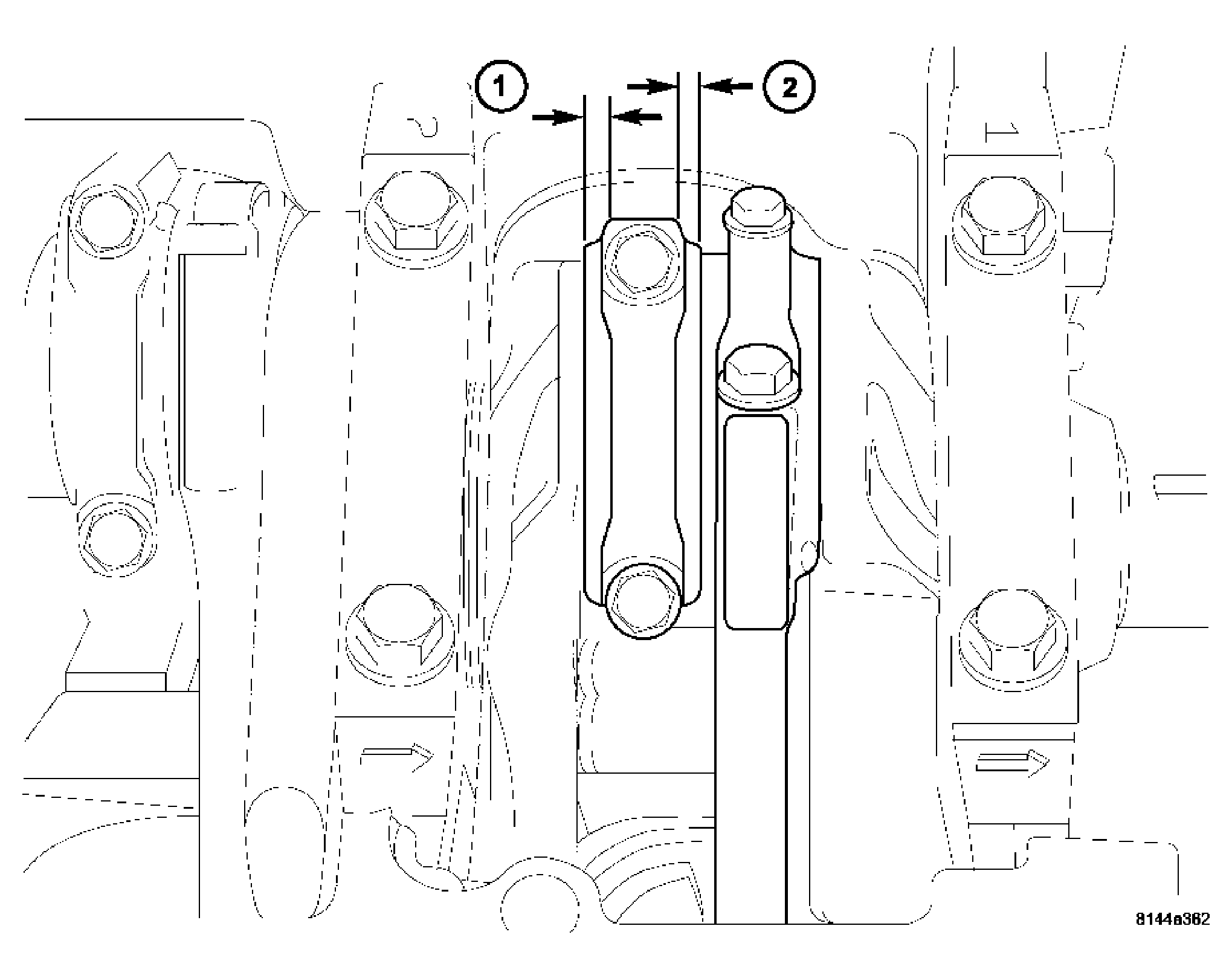

    Fig 5: Remove/Install Connecting Rod Bearing Caps
    GC0003980Courtesy of CHRYSLER LLC
  11. Position the connecting rods onto the crankshaft and install the rod bearing caps. Refer to INSTALLATION .

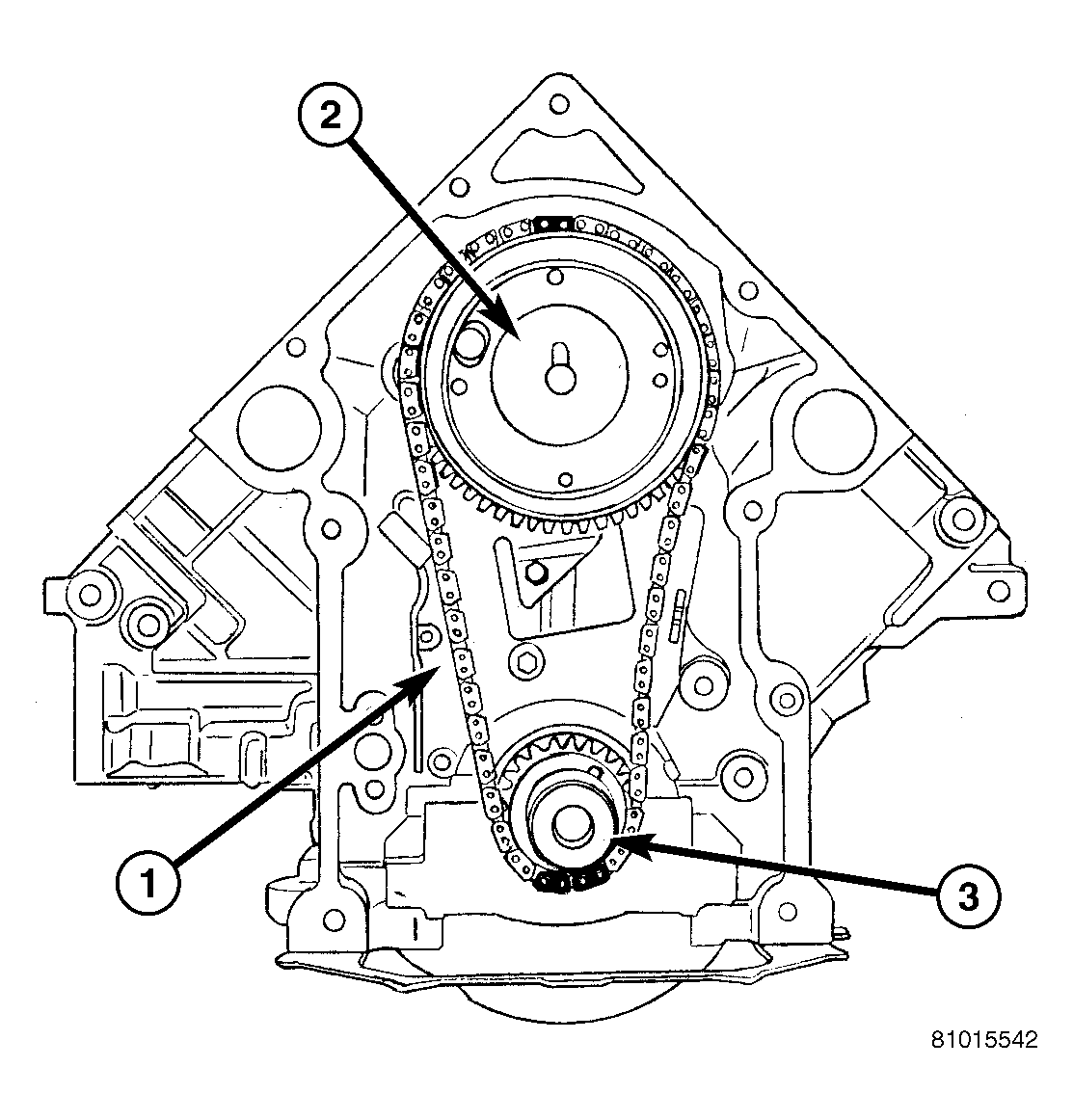

    Fig 6: Timing Mark Alignment
    GC0003977Courtesy of CHRYSLER LLC
    1 - Chain Tensioner
    2 - Camshaft Sprocket
    3 - Crankshaft Sprocket
  12. Install timing drive (2). Refer to TIMING CHAIN & SPROCKETS .
    Fig 7: Remove/Install Oil Pump
    GC0003966Courtesy of CHRYSLER LLC
  13. Install oil pump. Refer to PUMP - ENGINE OIL .
    Fig 8: Front Cover Slide Bushings
    GC0003967Courtesy of CHRYSLER LLC
  14. Install the timing chain case cover (1). Refer to COVER - TIMING .

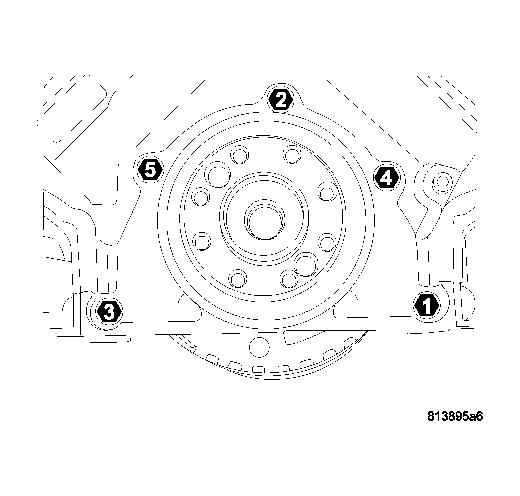

    Fig 9: Rear Seal Retainer Torque Sequence
    GC0003976Courtesy of CHRYSLER LLC
  15. Install the rear main seal and retainer. Refer to RETAINER - CRANKSHAFT REAR OIL SEAL .
  16. Install the windage tray/oil pan gasket.
  17. Install the oil pick up tube.
  18. Install the oil pan. Refer to PAN - ENGINE OIL .
  19. Install the vibration damper. Refer to DAMPER - CRANKSHAFT .
  20. Install the engine. Refer to INSTALLATION - ENGINE .
