Lamp Unit-Rear Cargo

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

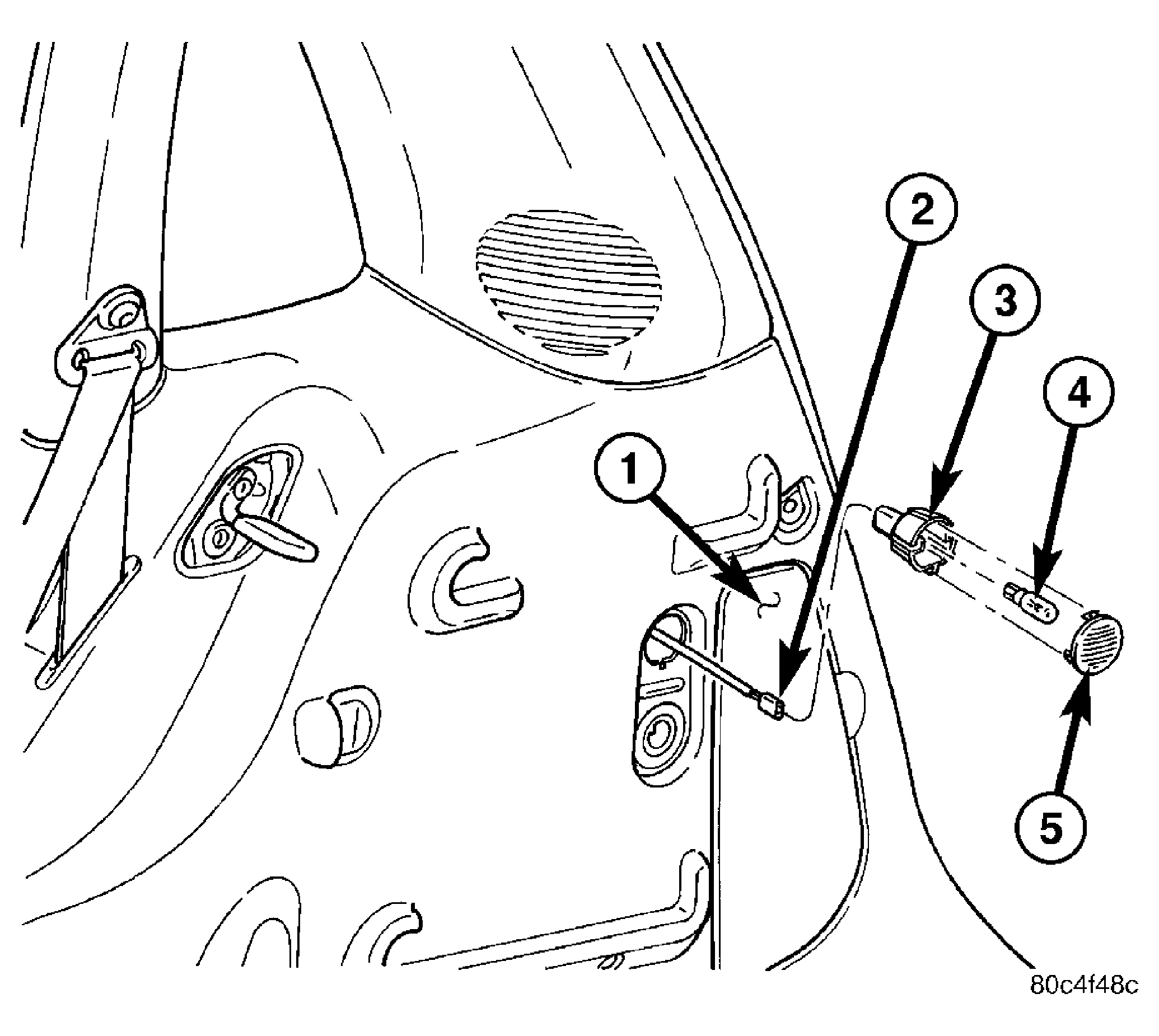

Fig 1: View Of Rear Cargo Lamp
GC0022943Courtesy of CHRYSLER LLC
  1. Open liftgate.
  2. Remove jack storage door from right rear quarter trim panel.
  3. Remove jack and tool bag.
  4. Place right hand on stem of cargo lamp unit and pull downward until lens separates from the cargo lamp unit.
  5. Pull cargo lamp unit through jack storage door opening to access bulb.
  6. Disconnect wire connector from cargo lamp unit.
  7. Remove cargo lamp unit from vehicle.
