Diagnostic Test

1) PCM IGNITION CIRCUITS

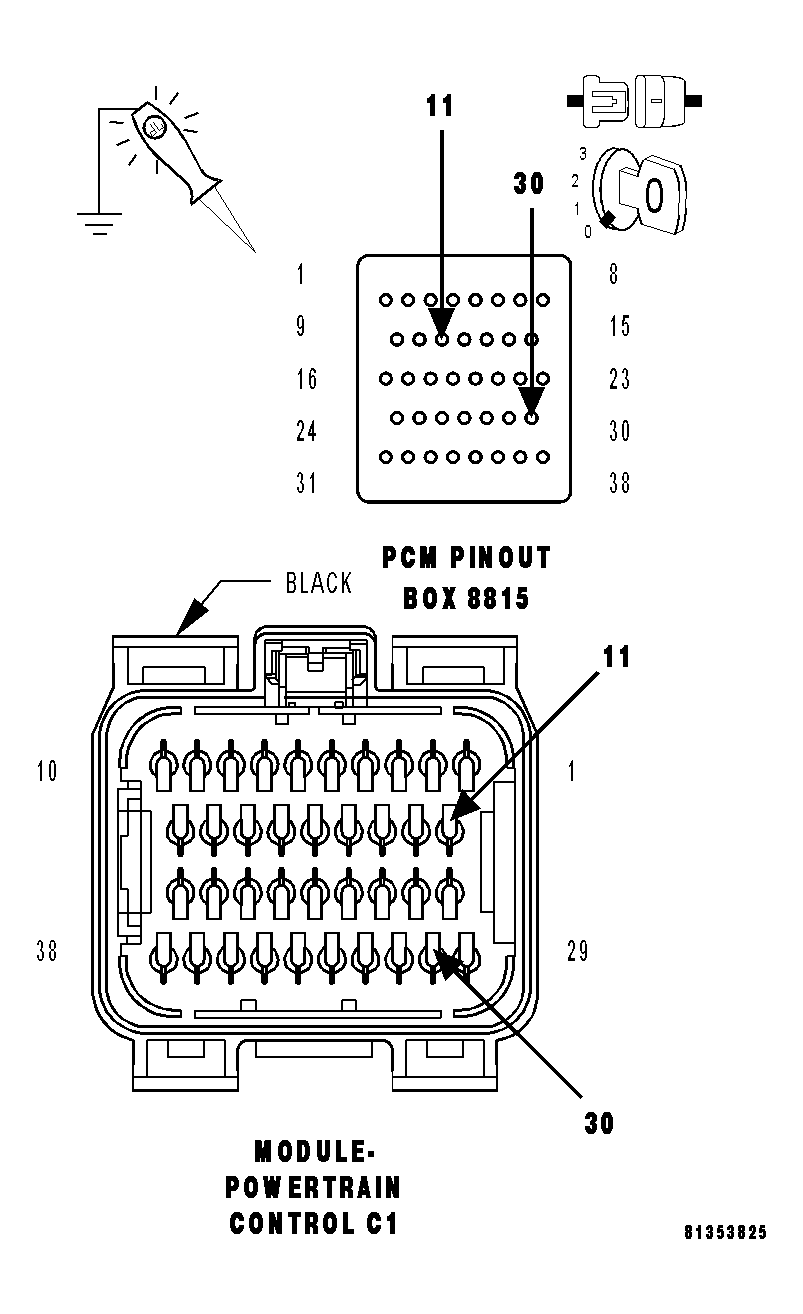

Fig 1: Checking PCM Fused Ignition Switch Circuits
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the PCM harness connectors.

Ignition on, engine not running.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

With a 12-volt test light connected to ground and with special tool #8815 installed, probe the (F202) and (F924) Fused Ignition Switch circuits.

Perform the above check with the Ignition key in the off lock position, Ignition on, engine not running position, and during cranking.

Wiggle the related wire harness while probing the special tool with the test light to try to interrupt the circuit.

Does the test light illuminate brightly?

Yes
1. Go to step 2).
No
1. Repair the open or excessive resistance in the (F202) and (F924) Fused Ignition Switch (Off, Run, Start) circuits. Inspect the related fuse, if the fuse is open check the circuits for a short to ground.
2. Perform *PCM VERIFICATION TEST .
2) PCM
The Powertrain Control Module is reporting internal errors.

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes
1. Repair as necessary.
2. Perform *PCM VERIFICATION TEST .
No
1. Replace and program the Powertrain Control Module per Service Information.
2. Perform *PCM VERIFICATION TEST .
