Diagnostic Test

  1. 1) DTC IS ACTIVE

    Turn the ignition on.

    With the scan tool, select View DTCs. Record DTC and Freeze Frame information.

    Start the engine and allow it to reach operating temperature.

    WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
    NOTE: Review Freeze Frame information. Operate the vehicle under conditions similar to which the DTC was set.

    With a scan tool, select View DTCs.

    Is the status Active for this DTC?

    Yes

    1. Go to  2).

    No

    1. Refer to *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. See *CHECKING FOR AN INTERMITTENT DTC .
  2. 2) (K26) INJECTOR 7 CONTROL CIRCUIT SHORTED TO VOLTAGE

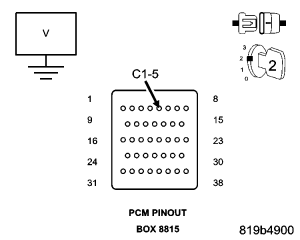

    Fig 1: Checking Fuel Injector Control Circuit
    GC0052666Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Remove the ASD Relay.

    Disconnect the Powertrain Control Module (PCM) connector.

    Turn the ignition on.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the voltage of the (K26) Injector 7 Control circuit at the appropriate terminal of special tool #8815.

    Is there any voltage present?

    Yes

    1. Repair the (K26) Injector 7 Control circuit for a short to voltage.
    2. Perform *PCM VERIFICATION TEST . .

    No

    1. Go to  3).
  3. 3) (K26) INJECTOR 7 CONTROL CIRCUIT SHORTED TO GROUND

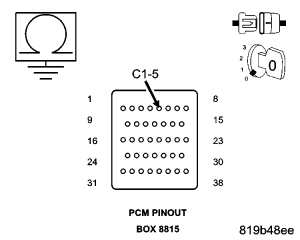

    Fig 2: Checking Fuel Injector Control Circuit
    GC0052667Courtesy of CHRYSLER LLC

    Turn the ignition off.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the resistance between ground and the (K26) Injector 7 Control circuit at the appropriate terminal of special tool #8815.

    Is the resistance above 100 ohms?

    Yes

    1. Go to  4).

    No

    1. Repair the (K26) Injector 7 Control circuit for a short to ground.
    2. Perform *PCM VERIFICATION TEST . .
  4. 4) FUEL INJECTOR 7 CIRCUIT RESISTANCE

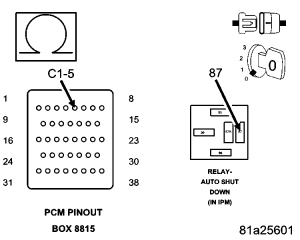

    Fig 3: Checking Fuel Injector Control Circuit
    GC0052668Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance of the Fuel Injector 7 circuit between the ASD Relay connector and the appropriate terminal of special tool #8815.

    NOTE: The resistance of the circuit will vary according to the temperature of the injector coil. Use the table below to determine the resistance range of the injector.
    Fuel Injector Coil Resistance Based on Engine Temperature
    Temperature  Resistance
    -20°C (-4°F) 10 ohms (+/-.6 ohms)
    20°C (68°F) 12 ohms (+/-.6 ohms)
    60°C (140°F) 14 ohms (+/-.6 ohms)
    100°C (212°F) 16 ohms (+/-.6 ohms)

    Is the resistance of the injector within the specified range?

    Yes

    1. Go to  9).

    No

    1. Go to  5).
  5. 5) FUEL INJECTOR 7 WIRING AND CONNECTOR INSPECTION

    Turn the ignition off.

    Verify that the connector is properly connected to the injector.

    Disconnect the Fuel Injector 7 connector and inspect the wiring and terminals for any condition that would result in a poor connection.

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform *PCM VERIFICATION TEST . .

    No

    1. Go to  6).
  6. 6) (K343) FUSED ASD RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE

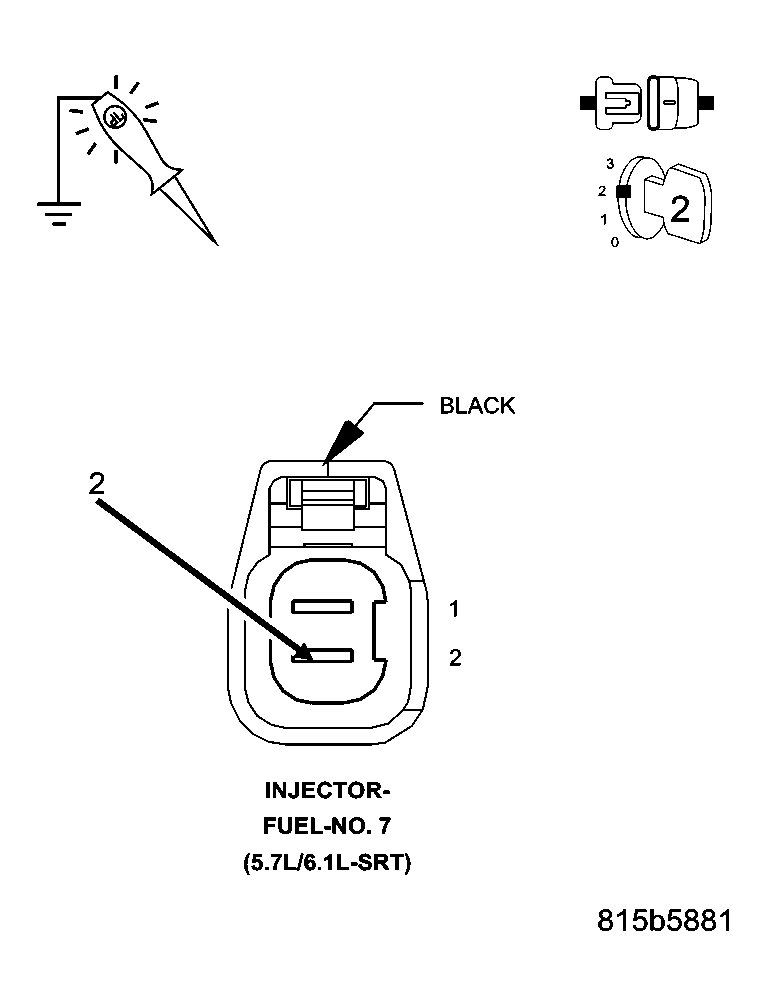

    Fig 4: Checking Fuel Injector Control Circuit
    GC0039793Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Connect the Powertrain Control Module (PCM) connector.

    Install the ASD Relay.

    Turn the ignition on.

    With the scan tool, actuate the Auto Shutdown (ASD) Relay Control State.

    Using a 12 volt test light connected to ground, check the (K343) Fused ASD Relay Output circuit in the Fuel Injector 7 harness connector.

    NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated and bright?

    Yes

    1. Go to  7).

    No

    1. Repair the (K343) Fused ASD Relay Output circuit for an open circuit or high resistance.
    2. Perform *PCM VERIFICATION TEST . .
  7. 7) (K26) INJECTOR 7 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

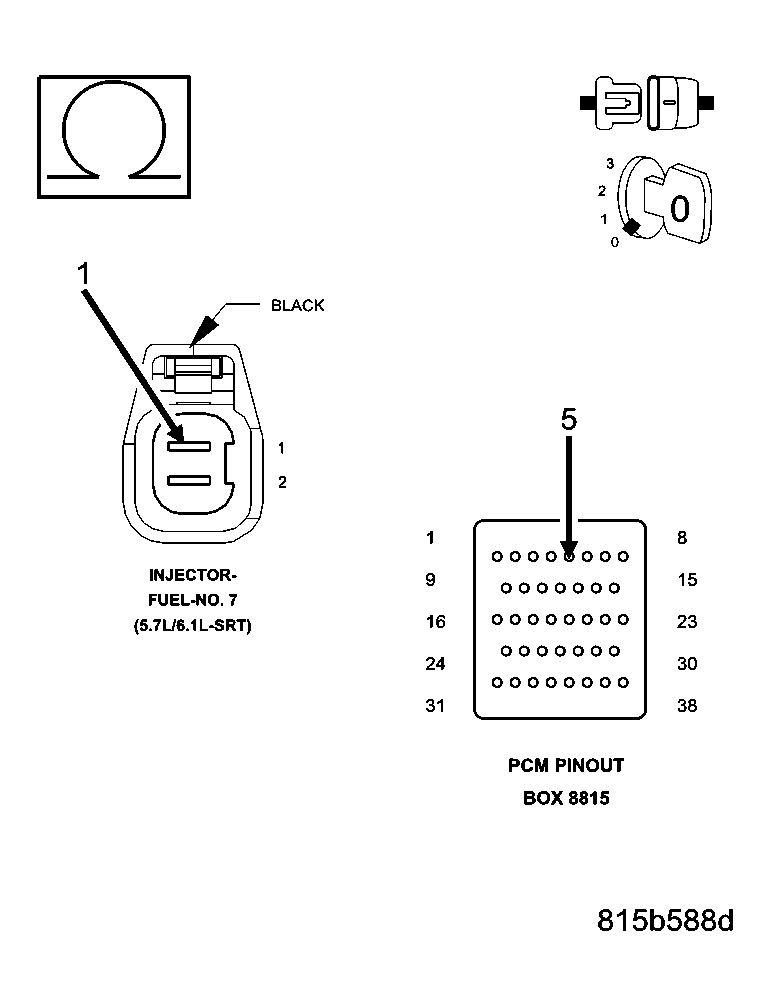

    Fig 5: Checking Fuel Injector Control Circuit
    GC0039796Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Powertrain Control Module (PCM) connector.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the resistance of the (K26) Injector 7 Control circuit between the Fuel Injector 7 harness connector and the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  8).

    No

    1. Repair the (K26) Injector 7 Control circuit for an open circuit or high resistance.
    2. Perform *PCM VERIFICATION TEST . .
  8. 8) FUEL INJECTOR 7

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 7 and the Powertrain Control Module (PCM).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform *PCM VERIFICATION TEST . .

    No

    1. Replace the Fuel Injector 7 in accordance with the Service Information.
    2. Perform *PCM VERIFICATION TEST . .
  9. 9) POWERTRAIN CONTROL MODULE (PCM)

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 7 and the Powertrain Control Module (PCM).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform *PCM VERIFICATION TEST . .

    No

    1. Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
    2. Perform *PCM VERIFICATION TEST . .
