Body - Interior & Exterior: Seats: Armrest-Rear: Installation

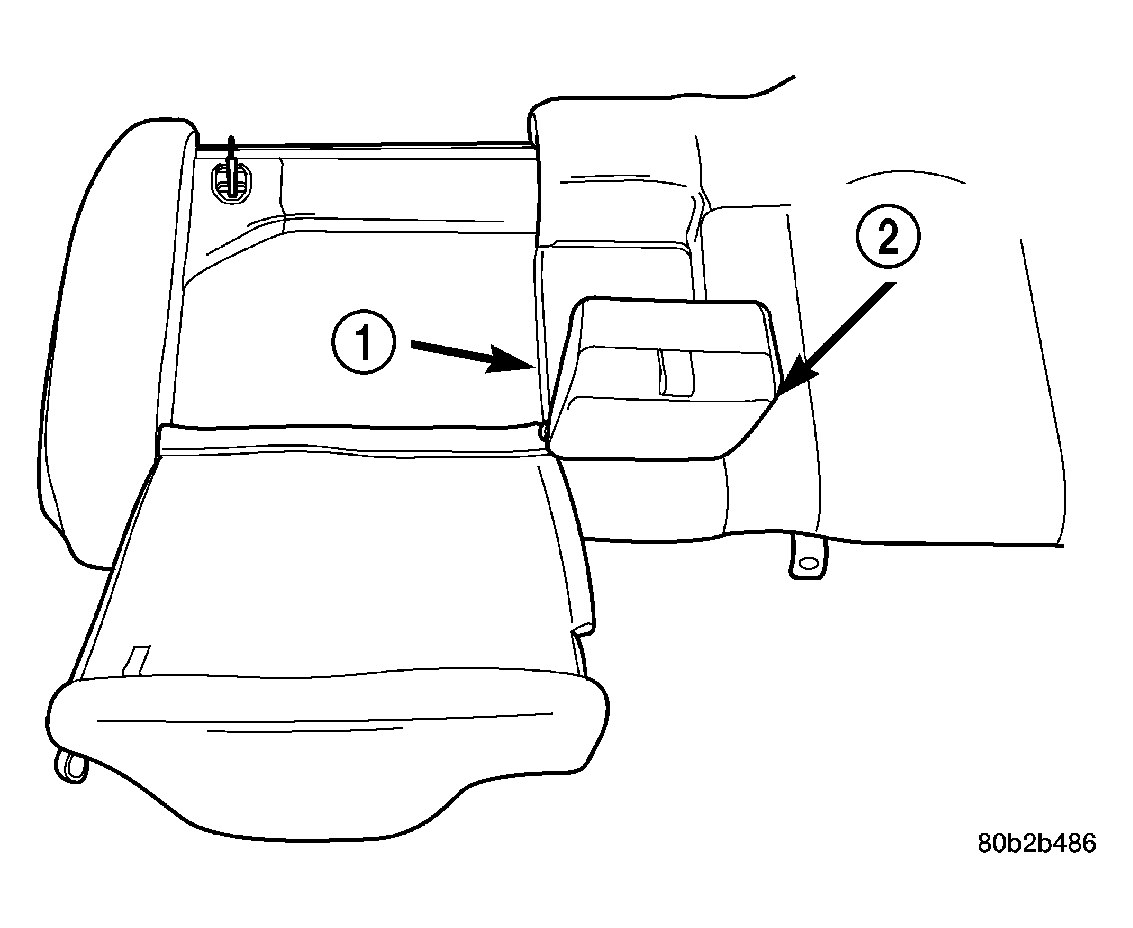

Fig 1: Rear Seat Arm Rest - 60/40

Courtesy of CHRYSLER LLC

1 - BOLT

2 - RETAINING C-CLIP

1. Place arm rest in bracket.
2. Install arm rest bolt (1). Tighten to 12 N.m (9 ft. lbs.).
3. Install retaining C-clip (2).
4. Reposition the seats.
