DECKLID - Spoiler: Installation

NOTE: SRT 8 vehicles only

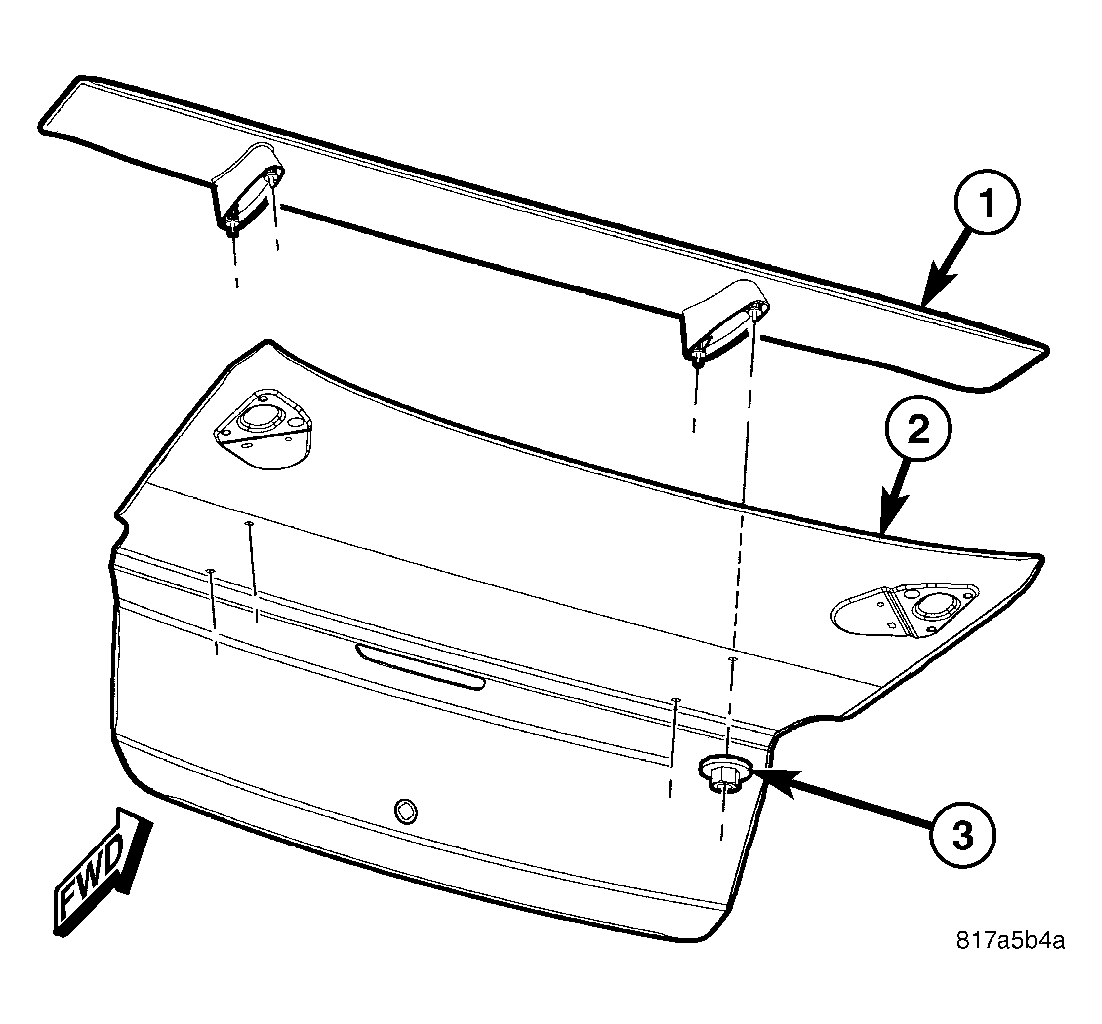

Fig 1: Spoiler
GC0039626Courtesy of CHRYSLER LLC
  1. Insert spoiler studs through decklid (2) holes.
  2. Install nuts (3) to spoiler studs.
  3. Torque nuts to 6 N.m (4.4 ft. lbs.)
