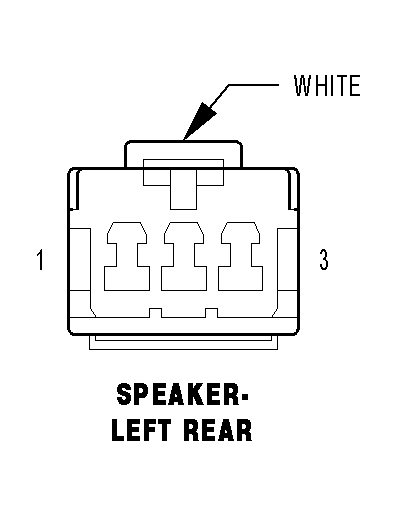

Left Rear Speaker Connector End View
SPEAKER-LEFT REAR - WHITE 3 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X393 18DG/GY (LOWLINE/MIDLINE I) | LEFT REAR SPEAKER (-) |
| 1 | X393 18DG/GY (MIDLINE II/HIGHLINE) | AMPLIFIED LEFT REAR SPEAKER (-) |
| 2 | - | - |
| 3 | X303 18DG/TN (LOWLINE/MIDLINE I) | LEFT REAR SPEAKER (+) |
| 3 | X303 18DG/TN (MIDLINE II/HIGHLINE) | AMPLIFIED LEFT REAR SPEAKER (+) |
