Chrysler
>>
2007
>>
300 C, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>

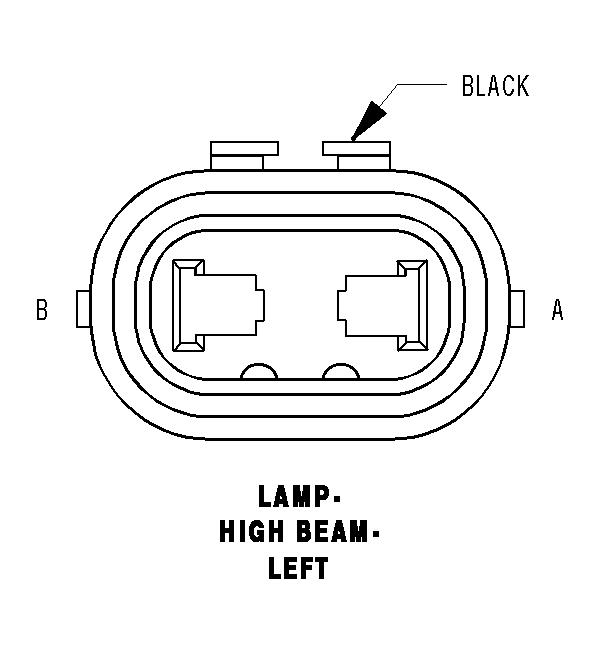

Left High Beam Lamp Connector End View
Left High Beam Lamp Connector End View
LAMP-HIGH BEAM-LEFT - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
L33 18WT/LG
LEFT HIGH BEAM DRIVER
B
Z902 18BK/LB
GROUND
Courtesy of DAIMLERCHRYSLER CORP.
