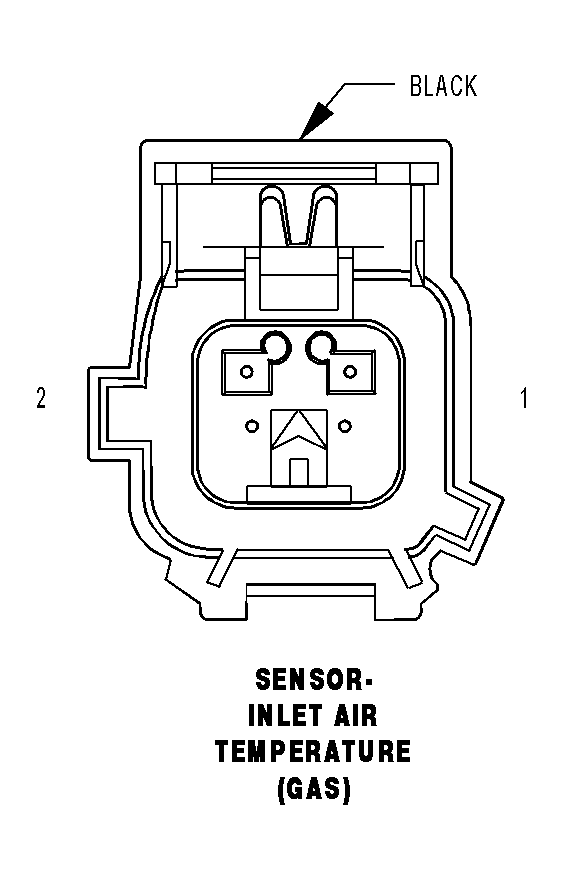

Inlet Air Temperature Sensor (Gas) Connector End View

SENSOR-INLET AIR TEMPERATURE (GAS) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K21 20DB/LG	IAT SIGNAL
2	K900 20DB/DG	SENSOR GROUND
