42RLE Automatic Transmission (Service Information): Pump-Oil: Description

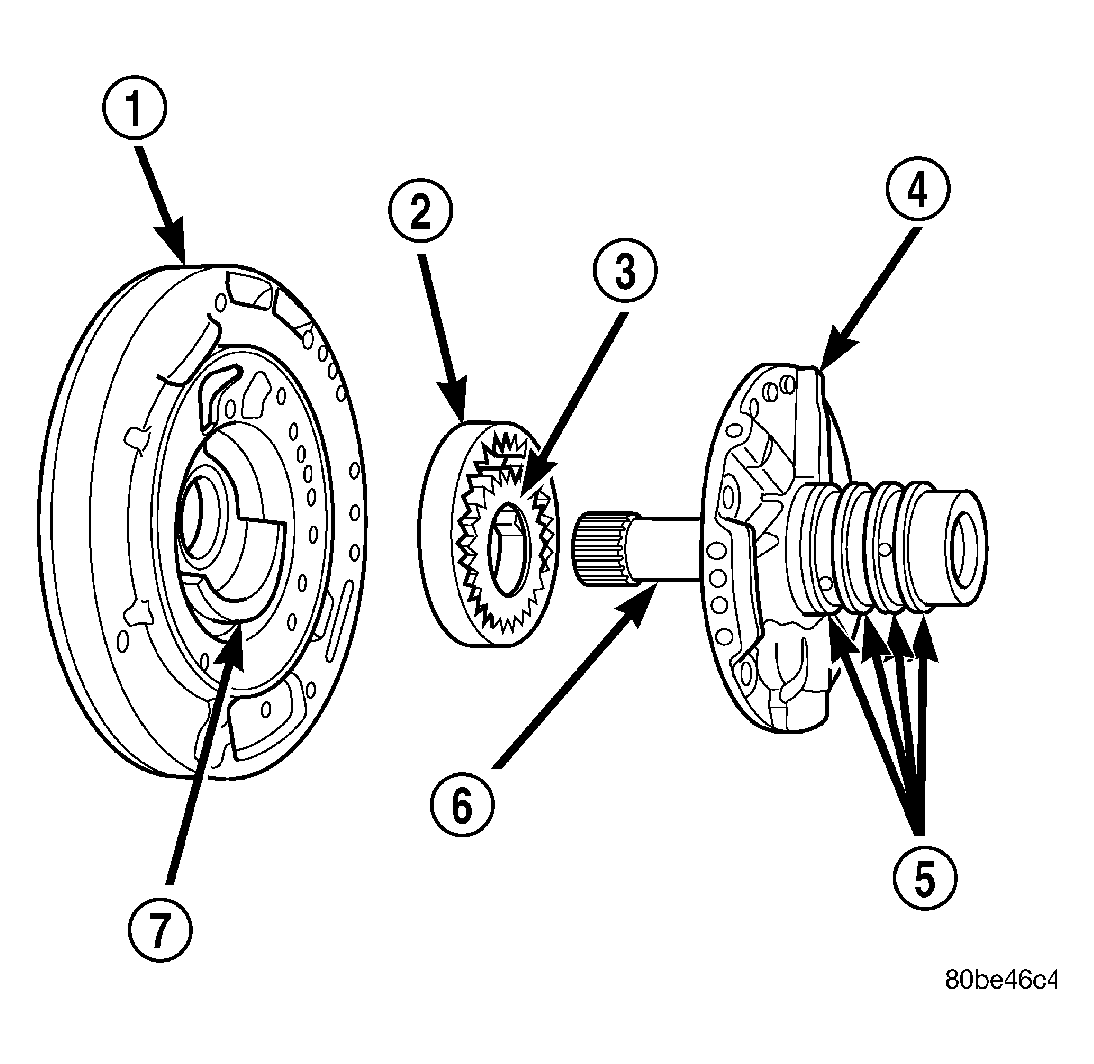

| 1 - PUMP HOUSING |
| 2 - OUTER PUMP GEAR |
| 3 - INNER PUMP GEAR |
| 4 - REACTION SHAFT SUPPORT |
| 5 - SEAL RINGS (4) |
| 6 - REACTION SHAFT |
| 7 - CRESCENT |
The oil pump is located in the pump housing inside the bell housing of the transmission case. The oil pump assembly consists of an inner (3) and outer (2) gear, a housing (1), and a cover that also serves as the reaction shaft support (6). See Fig 1.
