42RLE Automatic Transmission (Service Information): Pump-Oil: Assembly

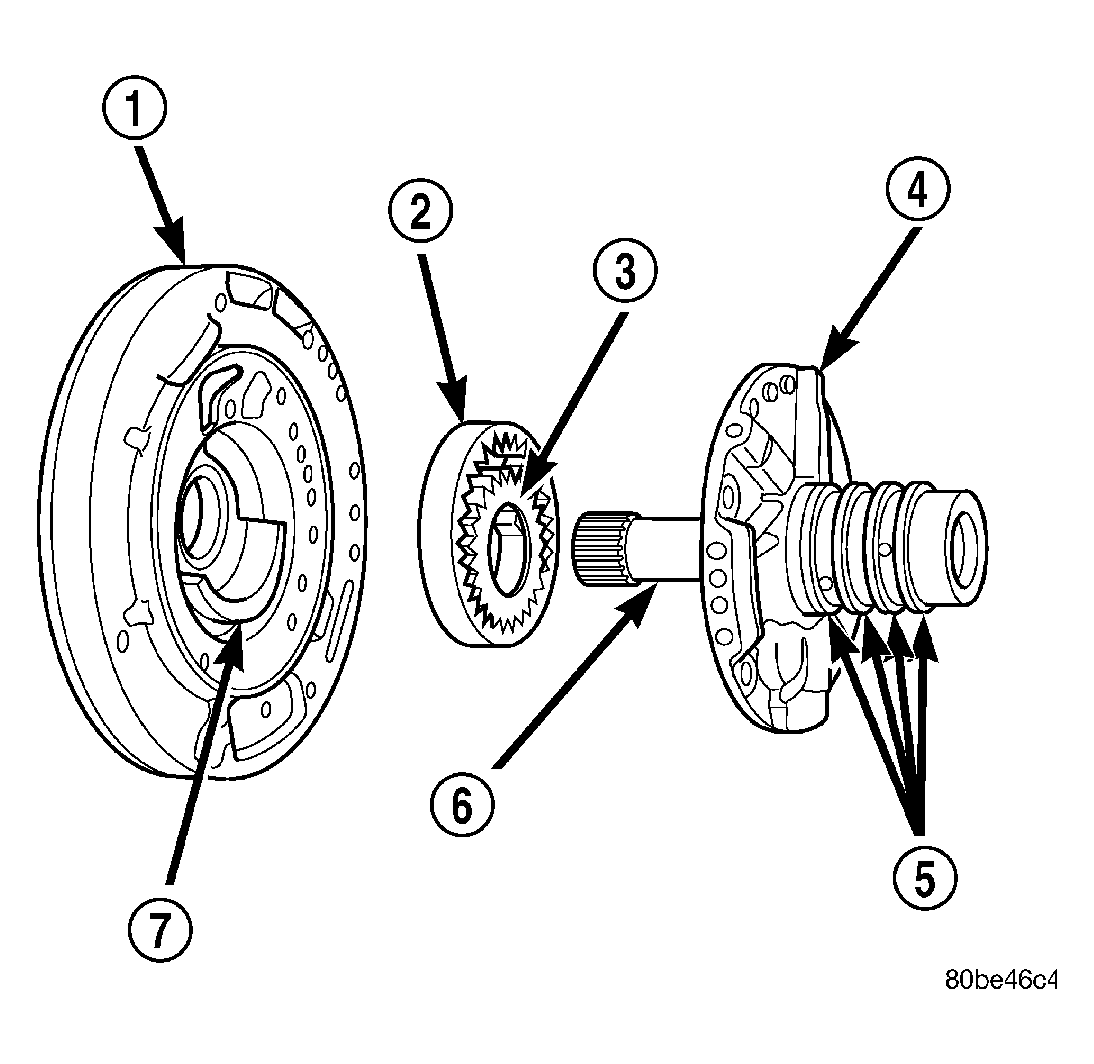

Fig 1: Oil Pump Assembly Components

Courtesy of CHRYSLER LLC

1 - PUMP HOUSING

2 - OUTER PUMP GEAR

3 - INNER PUMP GEAR

4 - REACTION SHAFT SUPPORT

5 - SEAL RINGS (4)

6 - REACTION SHAFT

7 - CRESCENT

1. Assemble oil pump as shown. See Fig 1
2. Install and torque reaction shaft support-to-oil pump housing bolts to 28 N.m (250 in. lbs.) torque.
