42RLE Automatic Transmission (Service Information): Body-Valve: Disassembly

NOTE: If the valve body is being reconditioned or replaced, it is necessary to perform the Quick Learn Procedure using the scan tool. Refer to STANDARD PROCEDURE .

Fig 1: Identifying Variable Line Pressure Sensor & Pressure Control Solenoid

Courtesy of CHRYSLER LLC

1 - PRESSURE CONTROL SOLENOID

2 - LINE PRESSURE SENSOR

3 - SHOULDER SCREW

4 - VARIABLE LINE PRESSURE HEADER

5 - MANUAL SHAFT

6 - SCREWS

1. Remove the electrical connectors from the pressure control solenoid (1) and the line pressure sensor (2). See Fig 1.
2. Remove the screws (6) holding the pressure control solenoid (1) and line pressure sensor (2) to the valve body.
3. Remove the pressure control solenoid and line pressure sensor from the valve body.
4. Remove the shoulder screw (3) holding the variable line pressure header (4) to the valve body.
5. Remove the variable line pressure header from the manual shaft (5).
   Fig 2: Manual Shaft Retaining Screw

   Courtesy of CHRYSLER LLC

   1 - SCREW

   2 - TRS

6. Remove manual shaft seal.
7. Remove manual shaft screw (1). See Fig 2.

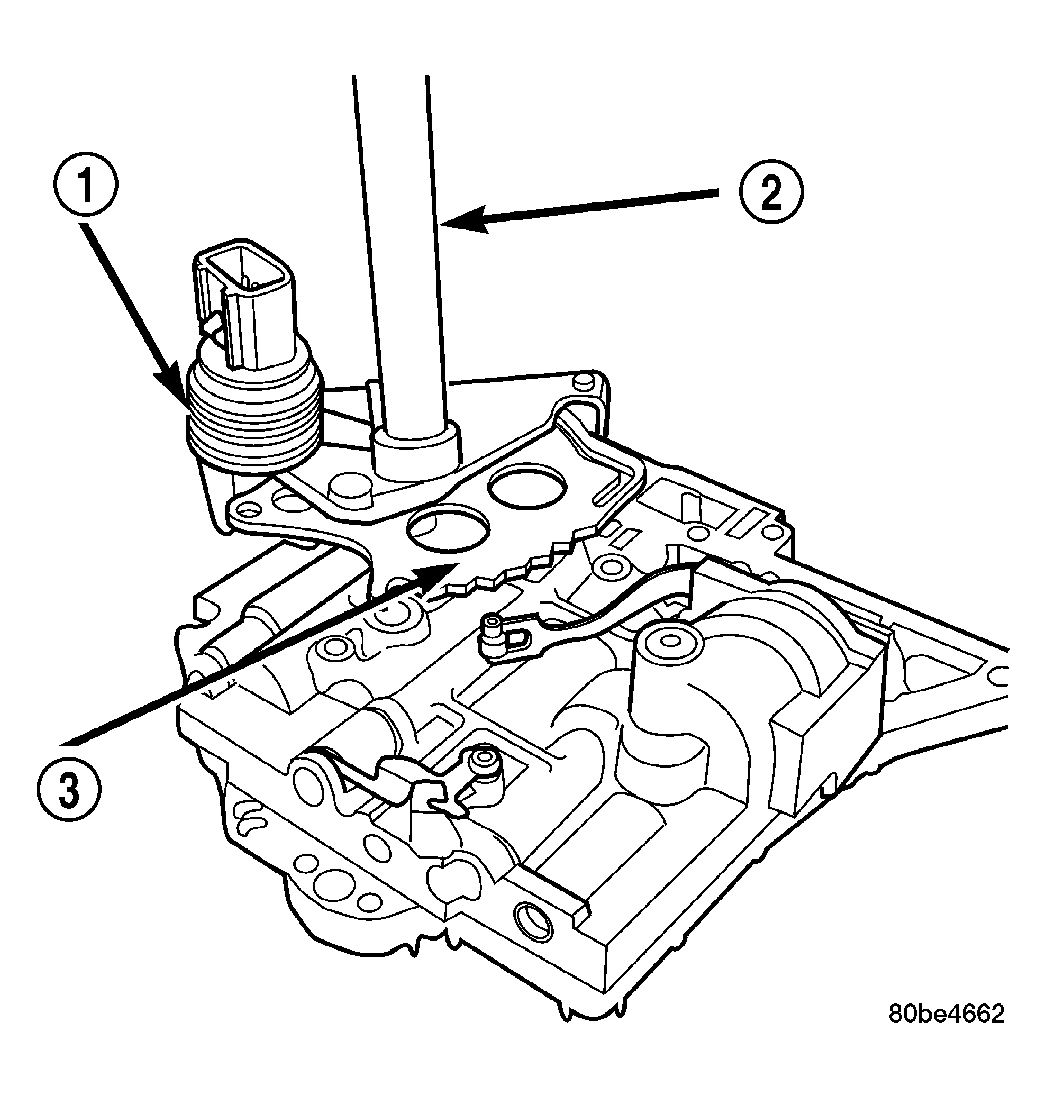

   Fig 3: Manual Shaft/Rooster Comb and Transmission Range Sensor

   Courtesy of CHRYSLER LLC

   1 - TRANSMISSION RANGE SENSOR

   2 - MANUAL SHAFT

   3 - ROOSTER COMB

8. Remove Transmission Range Sensor (TRS) (1) and manual shaft (2). See Fig 3.

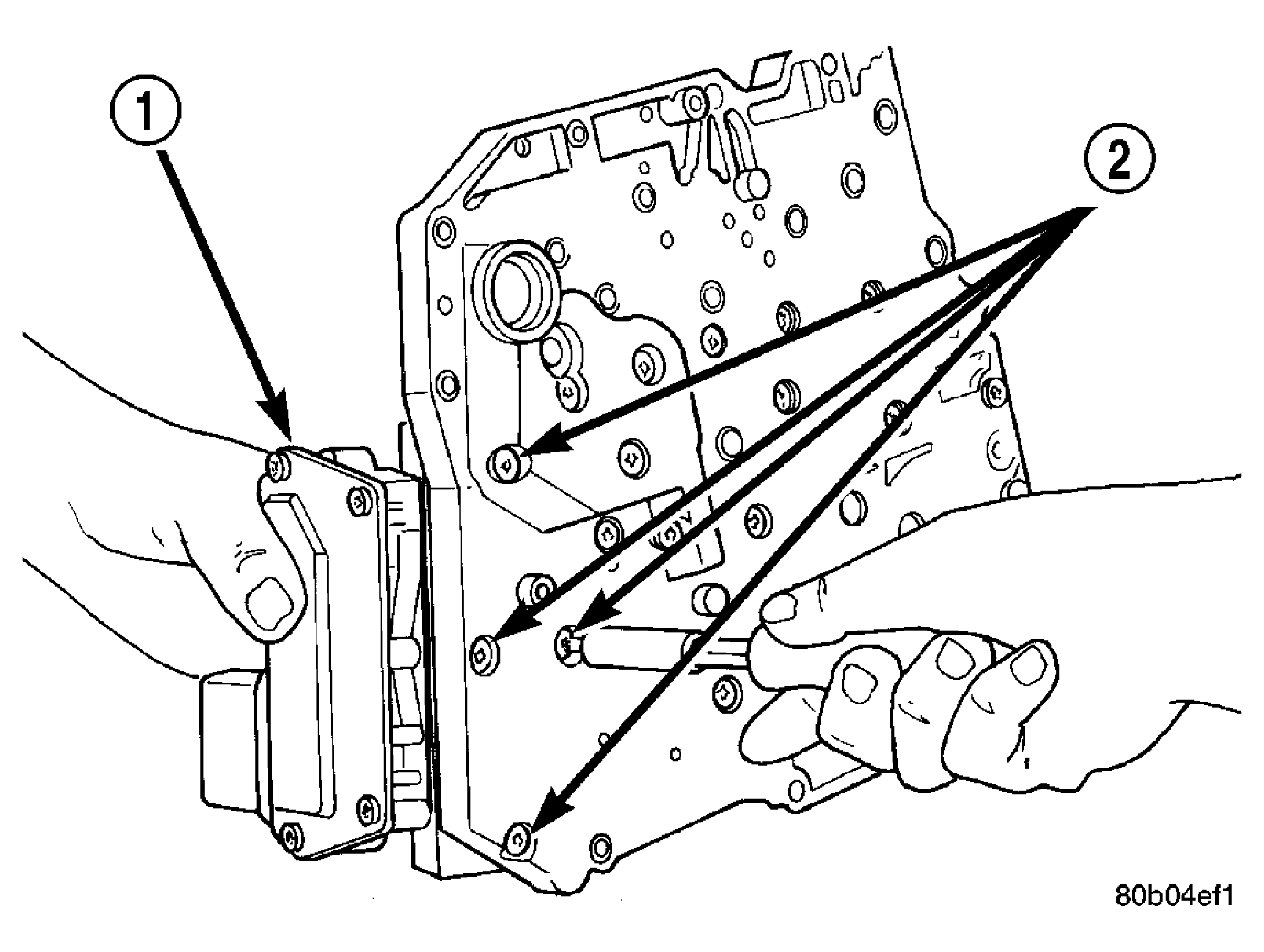

   Fig 4: Solenoid Retaining Screws

   Courtesy of CHRYSLER LLC

   1 - SOLENOID/PRESSURE SWITCH ASSEMBLY

   2 - RETAINING SCREWS

9. Remove Solenoid/Pressure Switch Assembly (1) from valve body. See Fig 4.

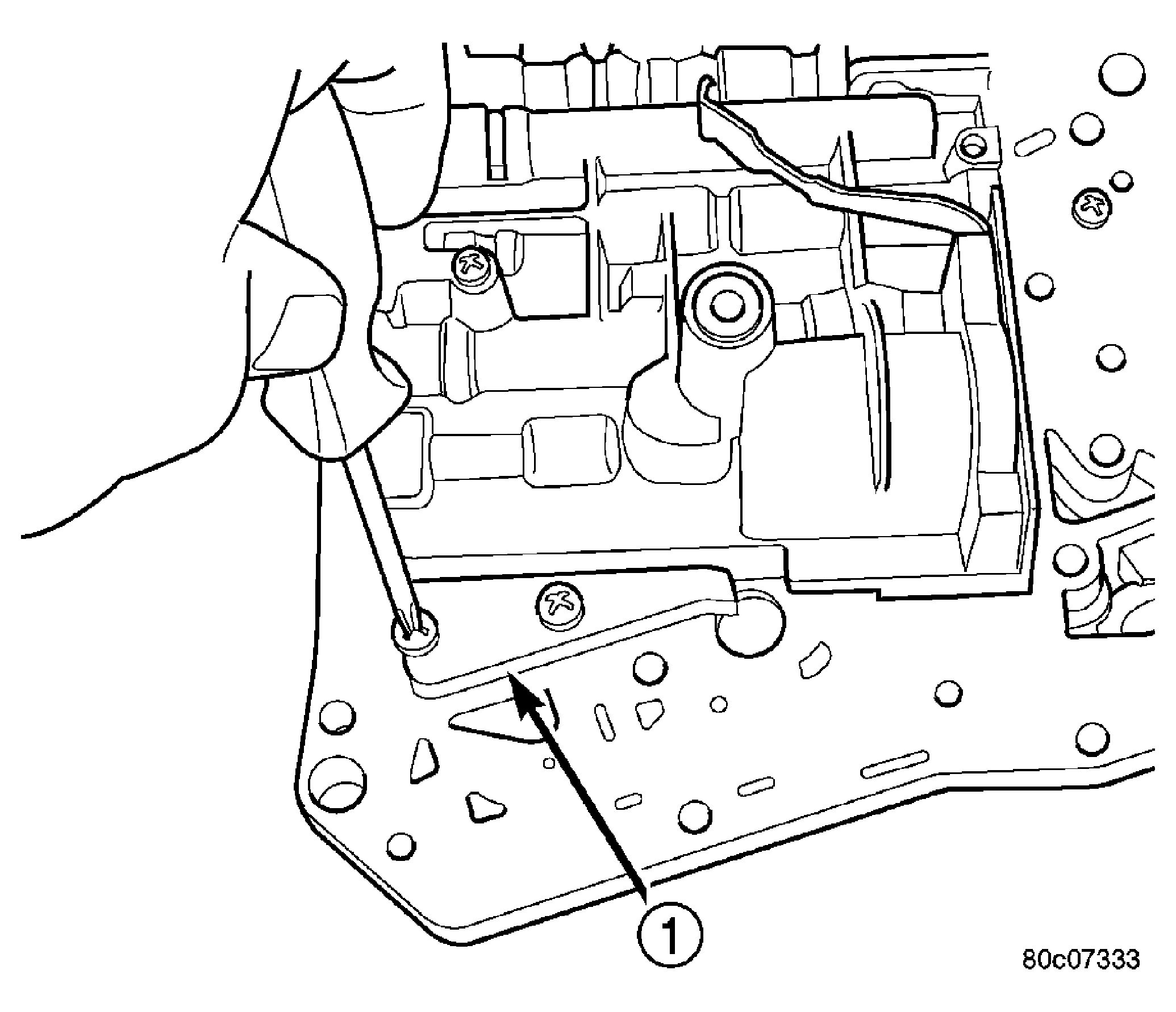

   Fig 5: Removing/Installing Stiffener Plate

   Courtesy of CHRYSLER LLC

   1 - STIFFENER PLATE

10. Remove valve body stiffener plate (1). See Fig 5.

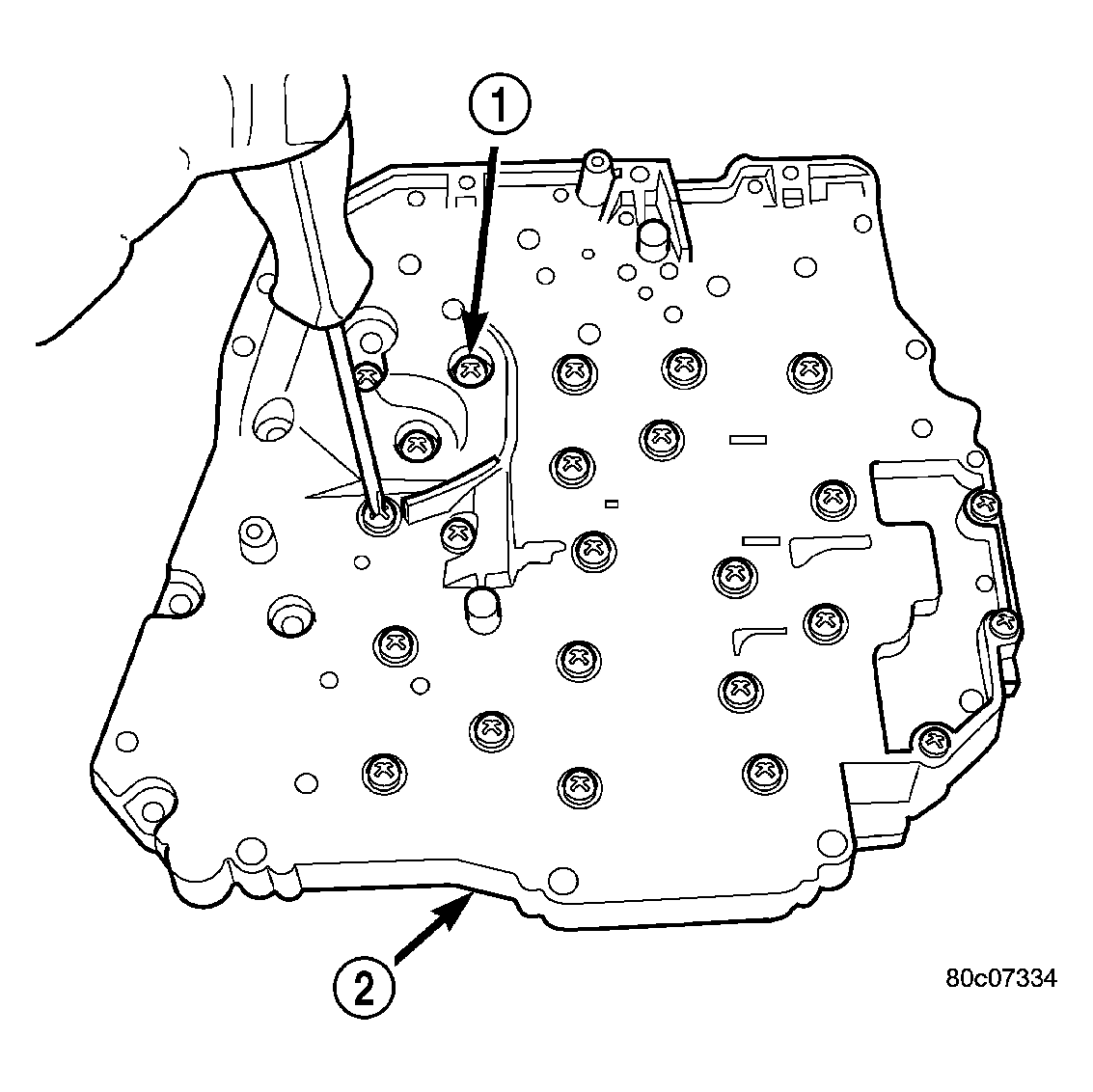

    Fig 6: Removing/Installing Transfer Plate-to-Valve Body Screws

    Courtesy of CHRYSLER LLC

    1 - SCREW (24)

    2 - TRANSFER PLATE

11. Invert valve body assembly and remove transfer plate-to-valve body screws (1). See Fig 6.

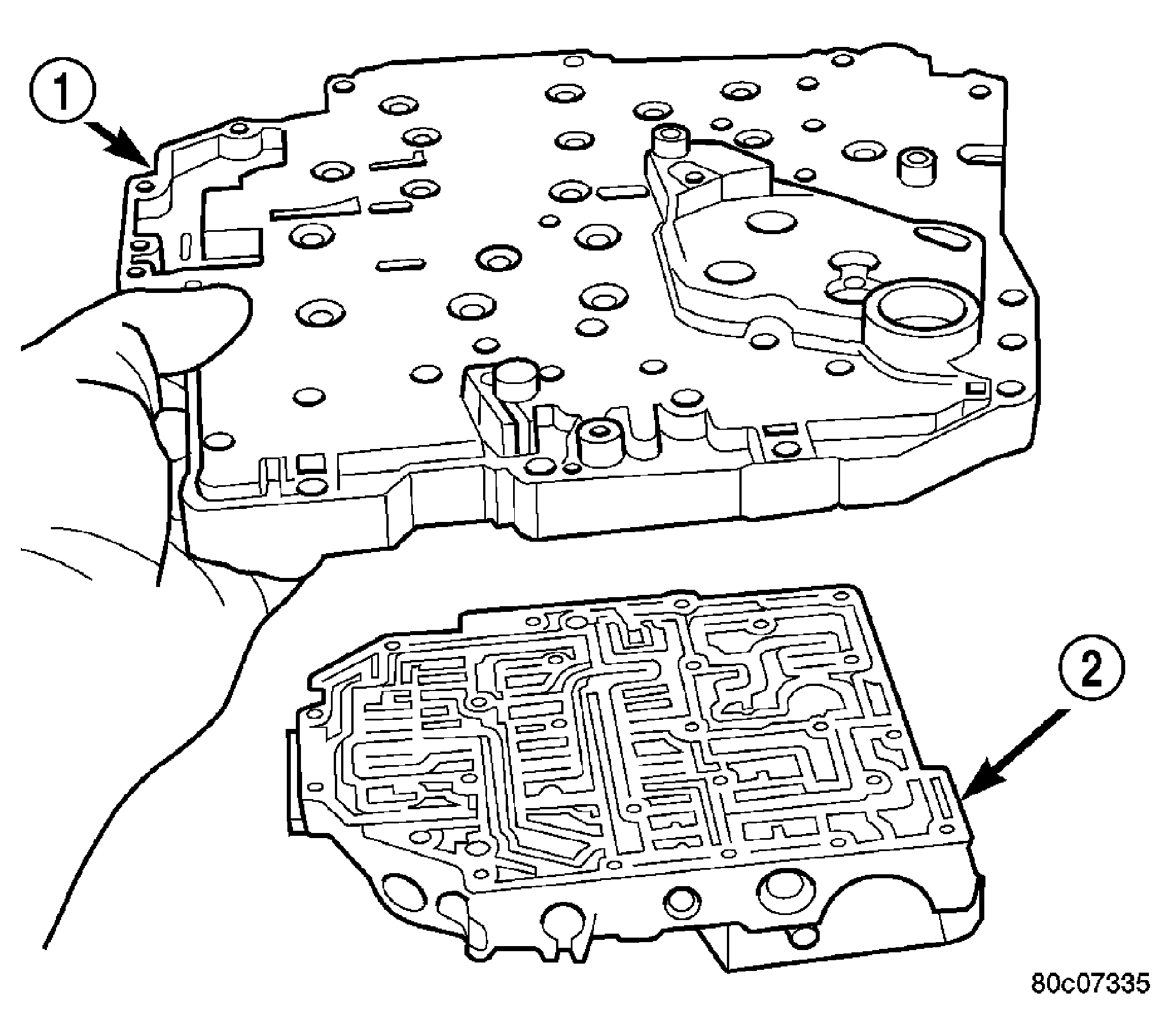

    Fig 7: Removing/Installing Transfer Plate to Valve Body

    Courtesy of CHRYSLER LLC

    1 - TRANSFER PLATE

    2 - VALVE BODY

12. Remove transfer/separator plate (1) from valve body (2).

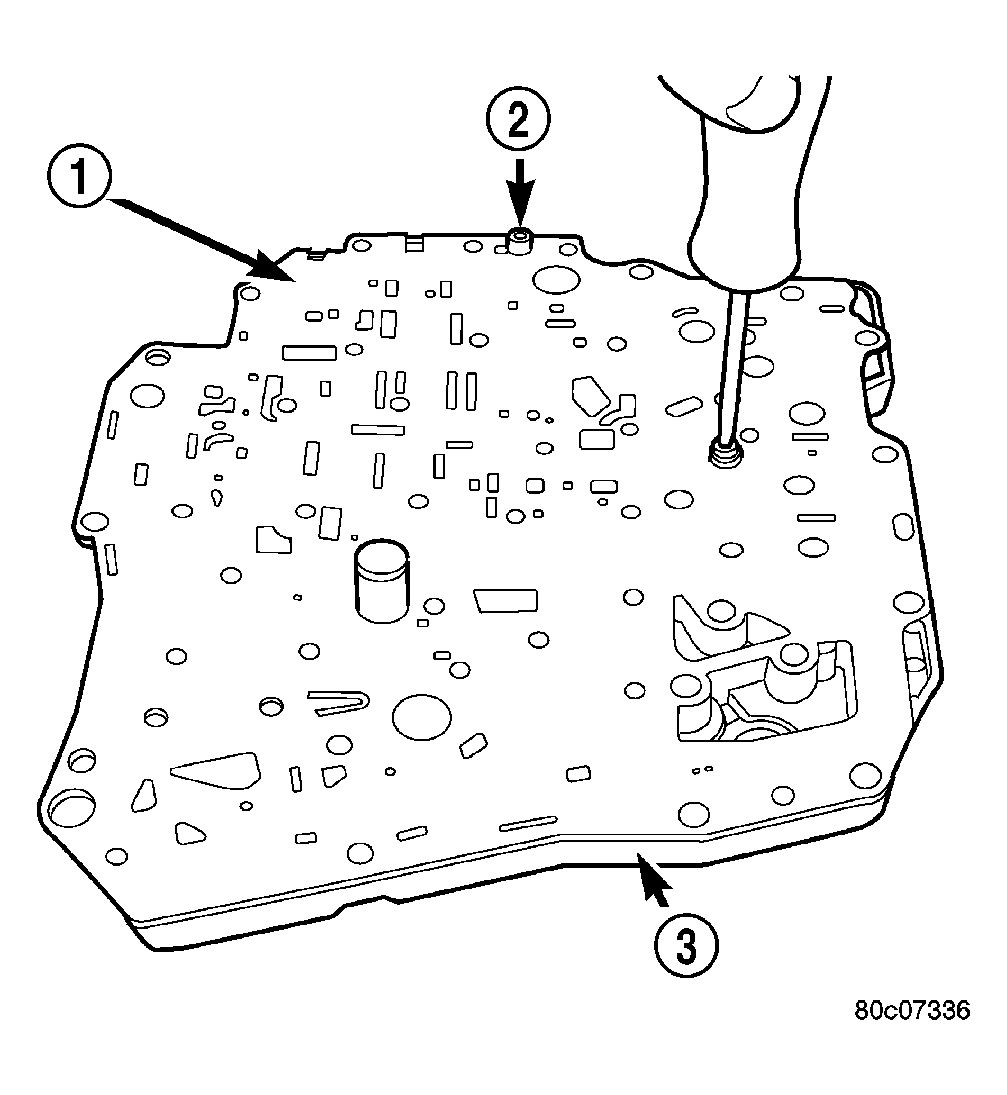

    Fig 8: Removing/Installing Separator Plate-to-Transfer Plate Screws

    Courtesy of CHRYSLER LLC

    1 - SEPARATOR PLATE

    2 - SCREW (2)

    3 - TRANSFER PLATE

13. Remove separator plate-to-transfer plate screws (2). See Fig 8.

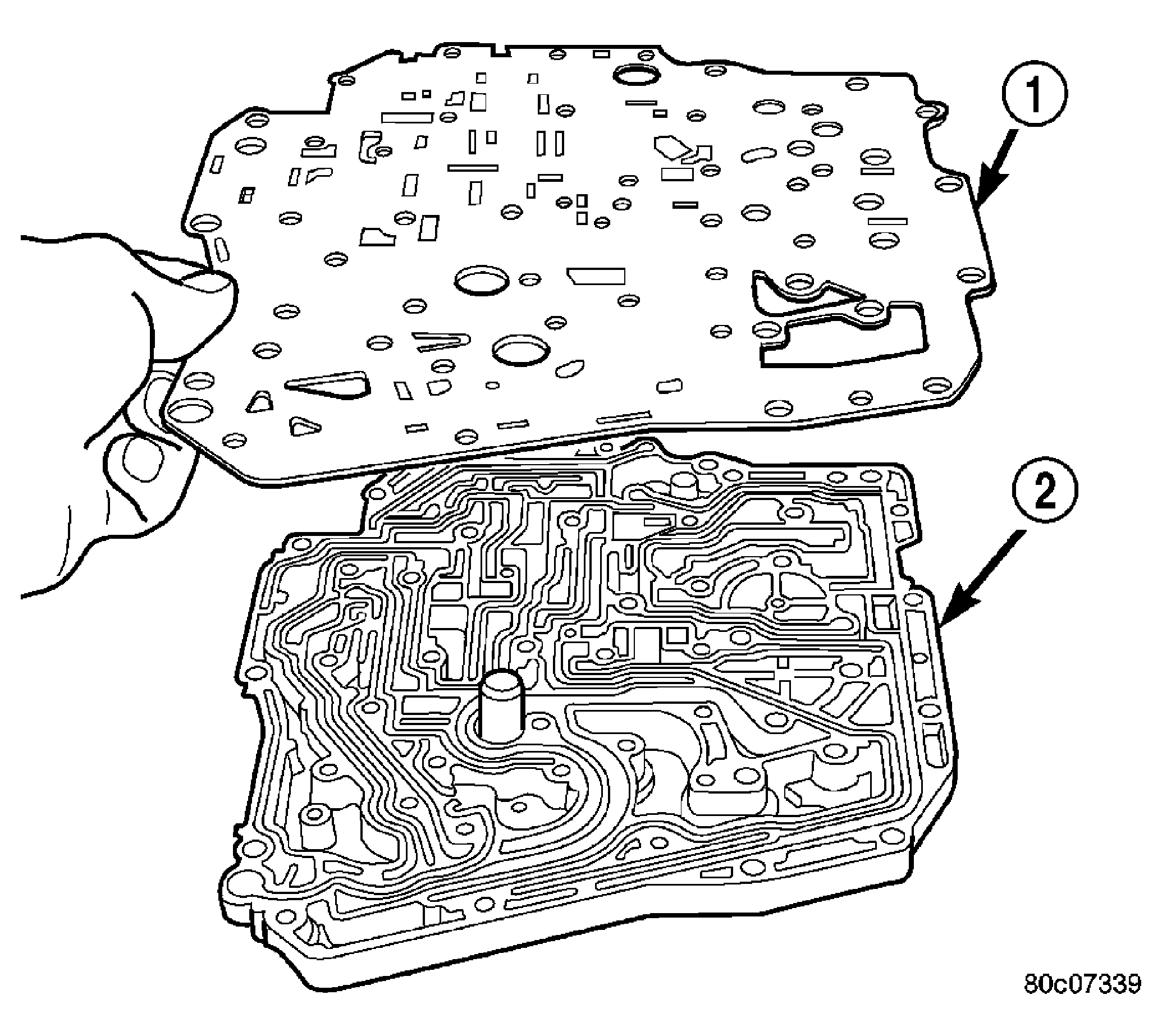

    Fig 9: Removing/Installing Separator Plate to Transfer Plate

    Courtesy of CHRYSLER LLC

    1 - SEPARATOR PLATE

    2 - TRANSFER PLATE

14. Remove separator plate (1) from transfer plate (2). See Fig 9.

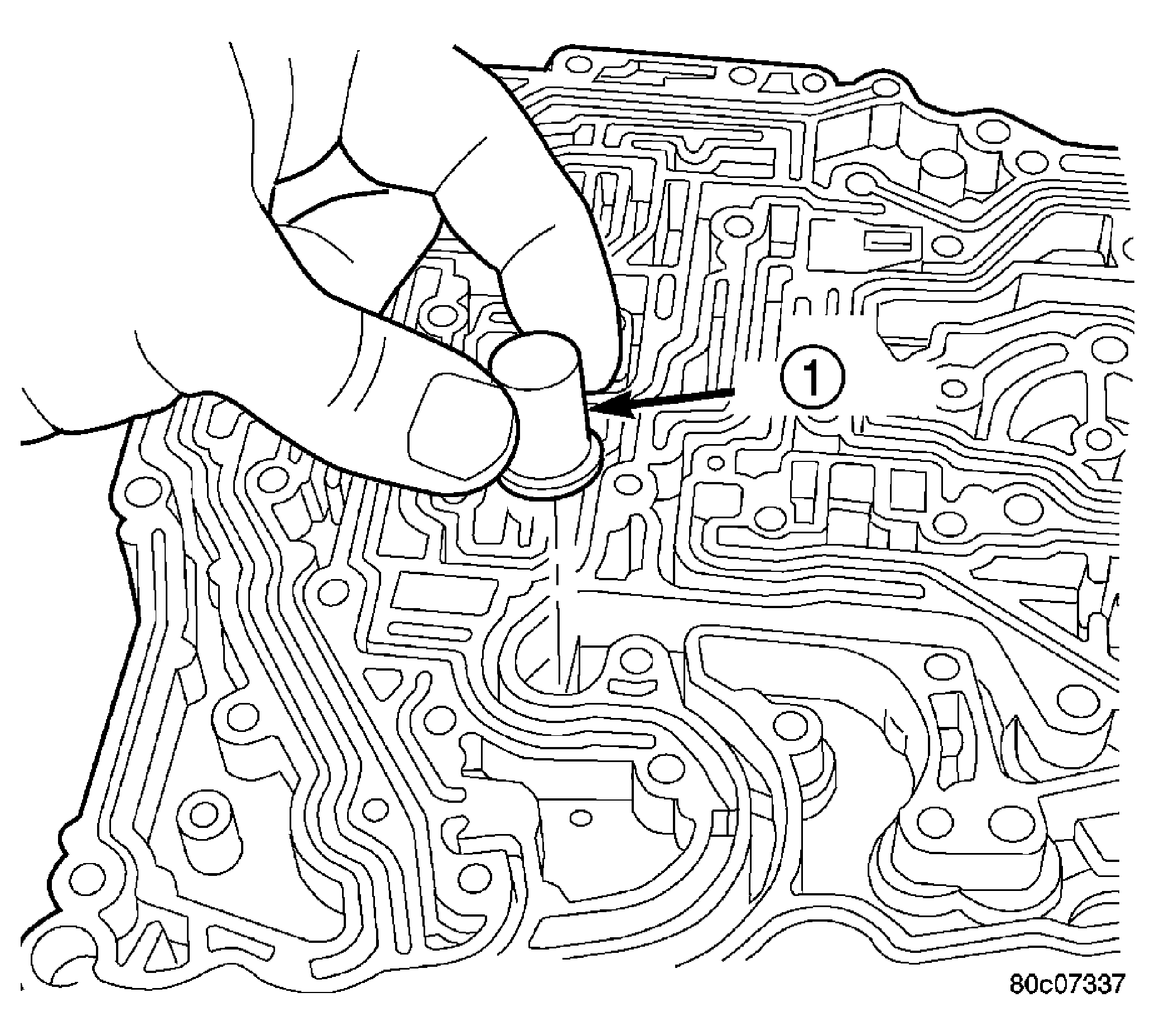

    Fig 10: Removing/Installing Oil Screen to Transfer Plate

    Courtesy of CHRYSLER LLC

    1 - OIL SCREEN

15. Remove the oil screen (1) from the transfer plate. See Fig 10.

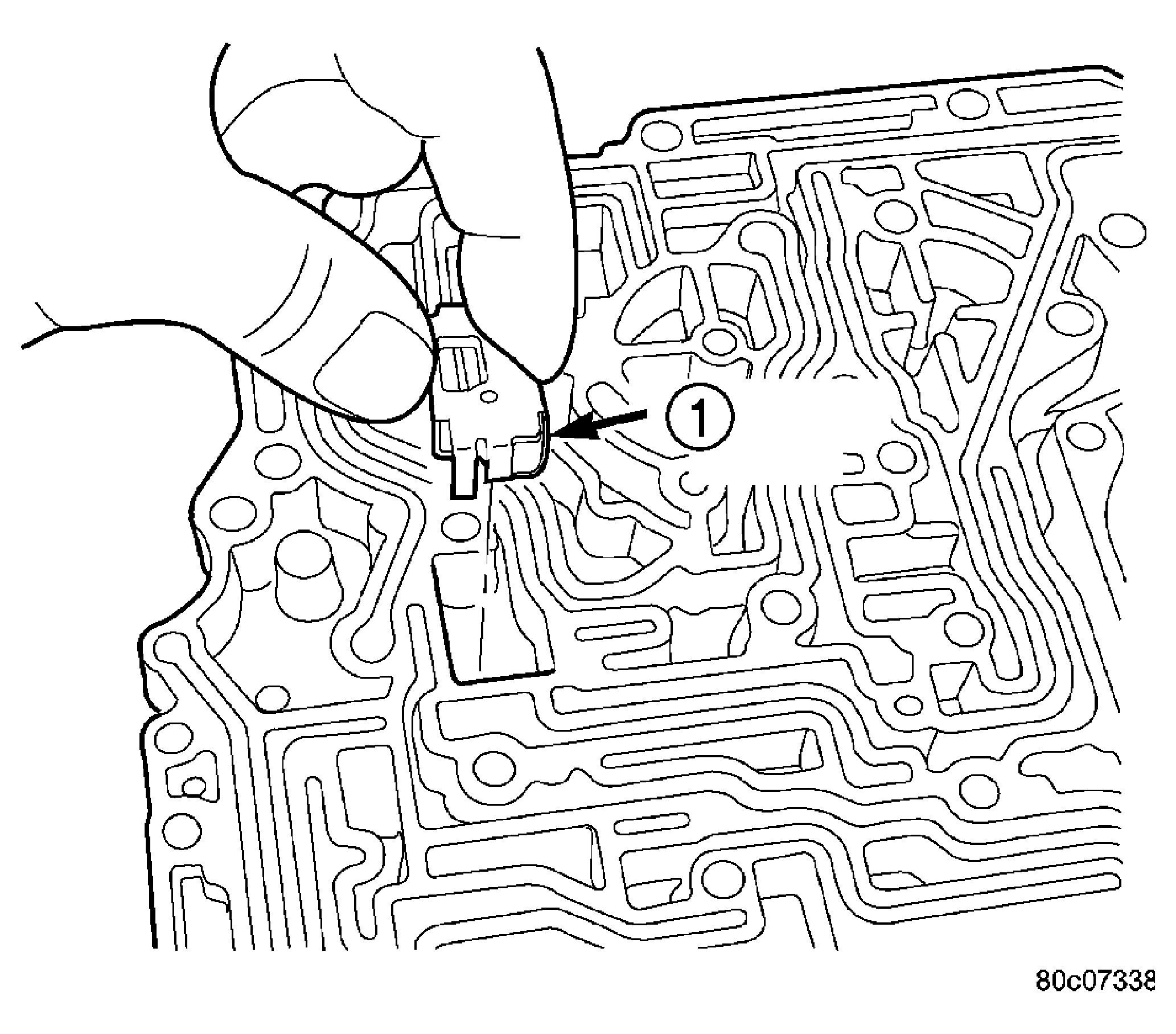

    Fig 11: Removing/Installing Thermal Valve to Transfer Plate

    Courtesy of CHRYSLER LLC

    1 - THERMAL VALVE

16. Remove thermal valve (1) from transfer plate. See Fig 11.

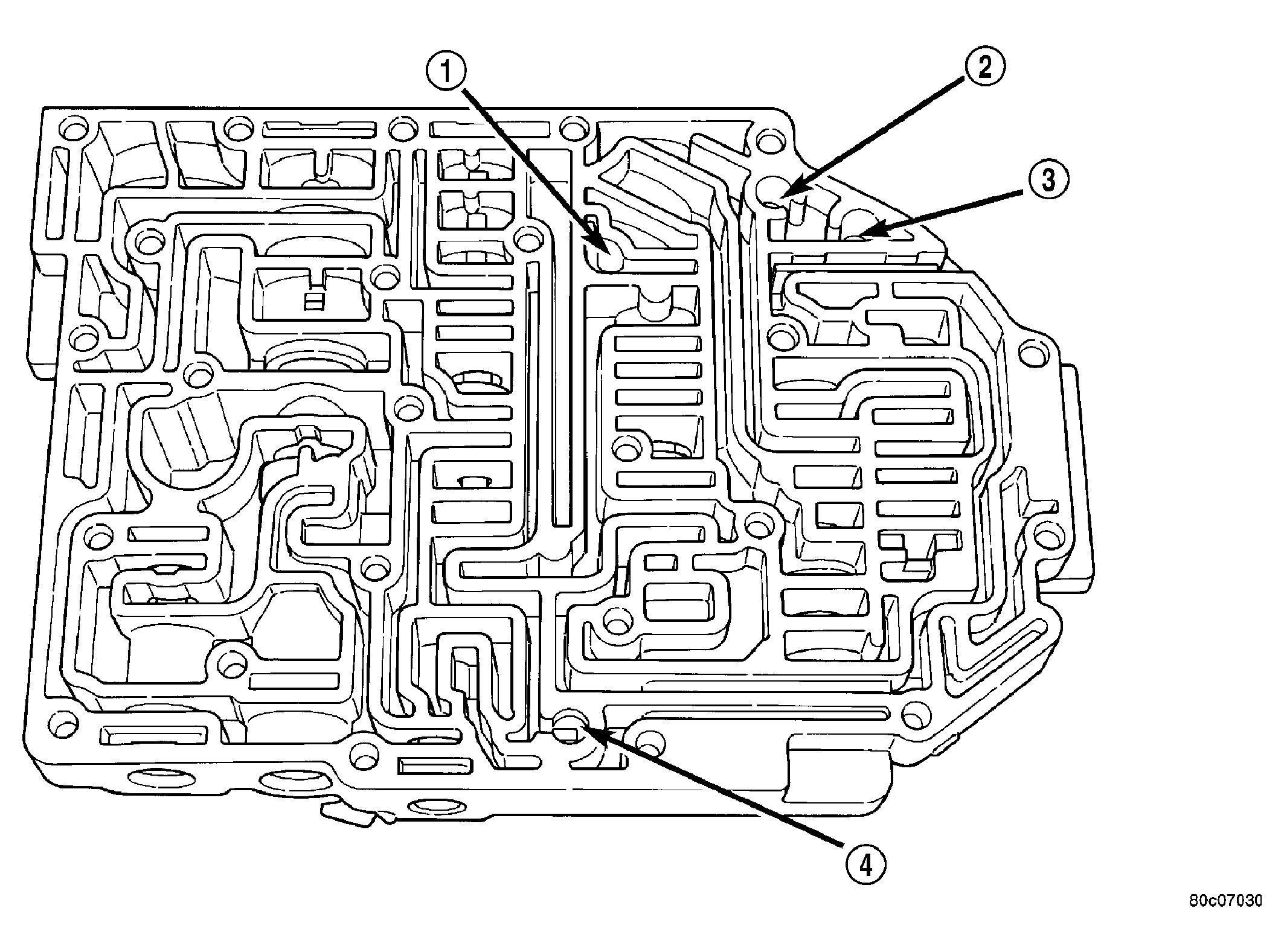

    Fig 12: Check Ball Locations

    Courtesy of CHRYSLER LLC

    1 - (#4) BALL CHECK LOCATION

    2 - (#2) BALL CHECK LOCATION

    3 - (#5) BALL CHECK LOCATION

    4 - (#3) BALL CHECK LOCATION

17. Remove valve body check balls (1-4). Note their location for assembly ease.
    Fig 13: 2/4 Accumulator Assembly

    Courtesy of CHRYSLER LLC

    1 - VALVE BODY

    2 - RETAINER PLATE

    3 - DETENT SPRING

    4 - RETURN SPRINGS

    5 - PISTON

18. Remove 2/4 accumulator assembly (1-5). See Fig 13.

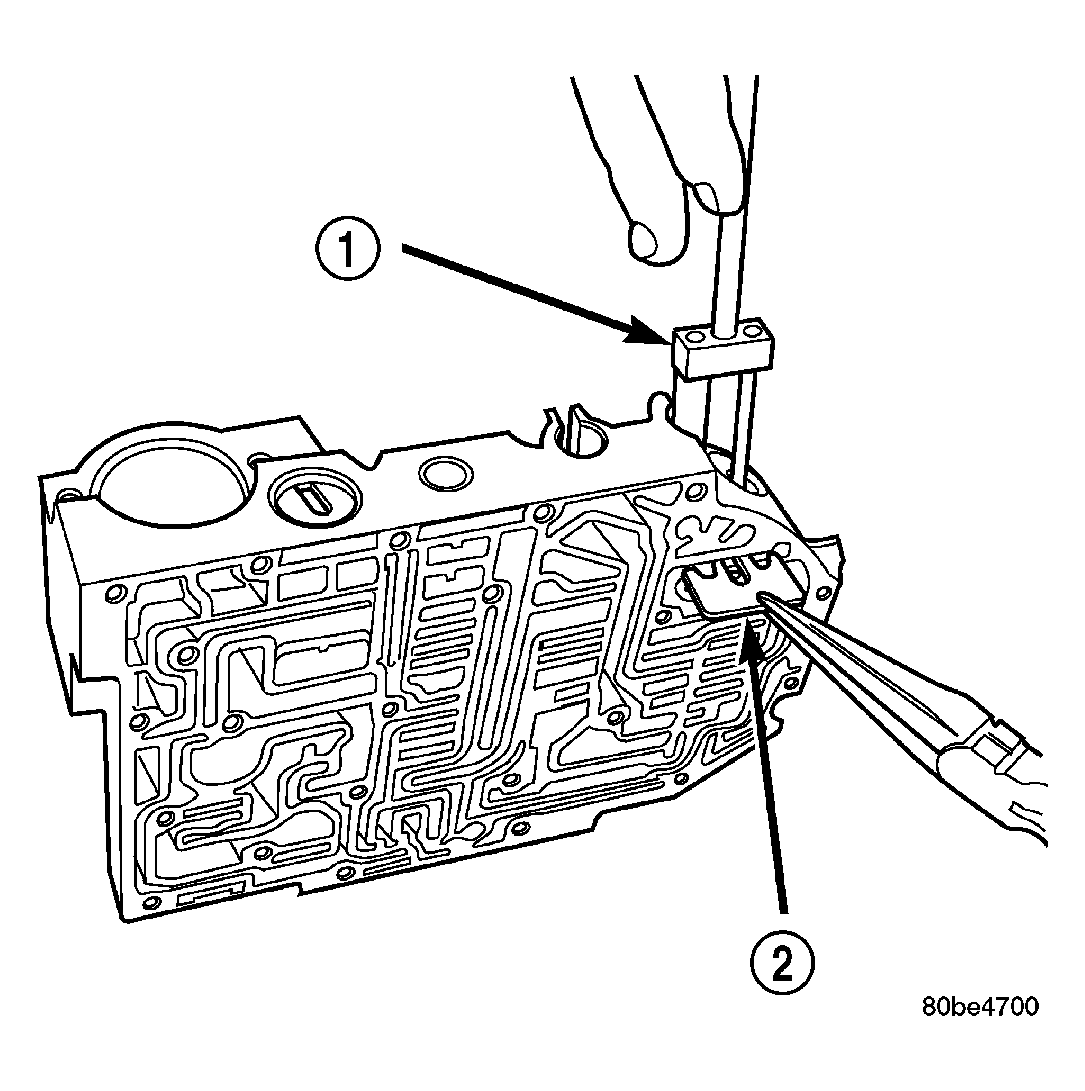

    Fig 14: Removing/Installing Dual Retainer Plate Using Tool 6301

    Courtesy of CHRYSLER LLC

    1 - REMOVER/INSTALLER 6301

    2 - RETAINER

19. Remove dual retainer plate (2) from valve body. Use Remover/Installer 6301 (1) to remove plate (2). See Fig 14.

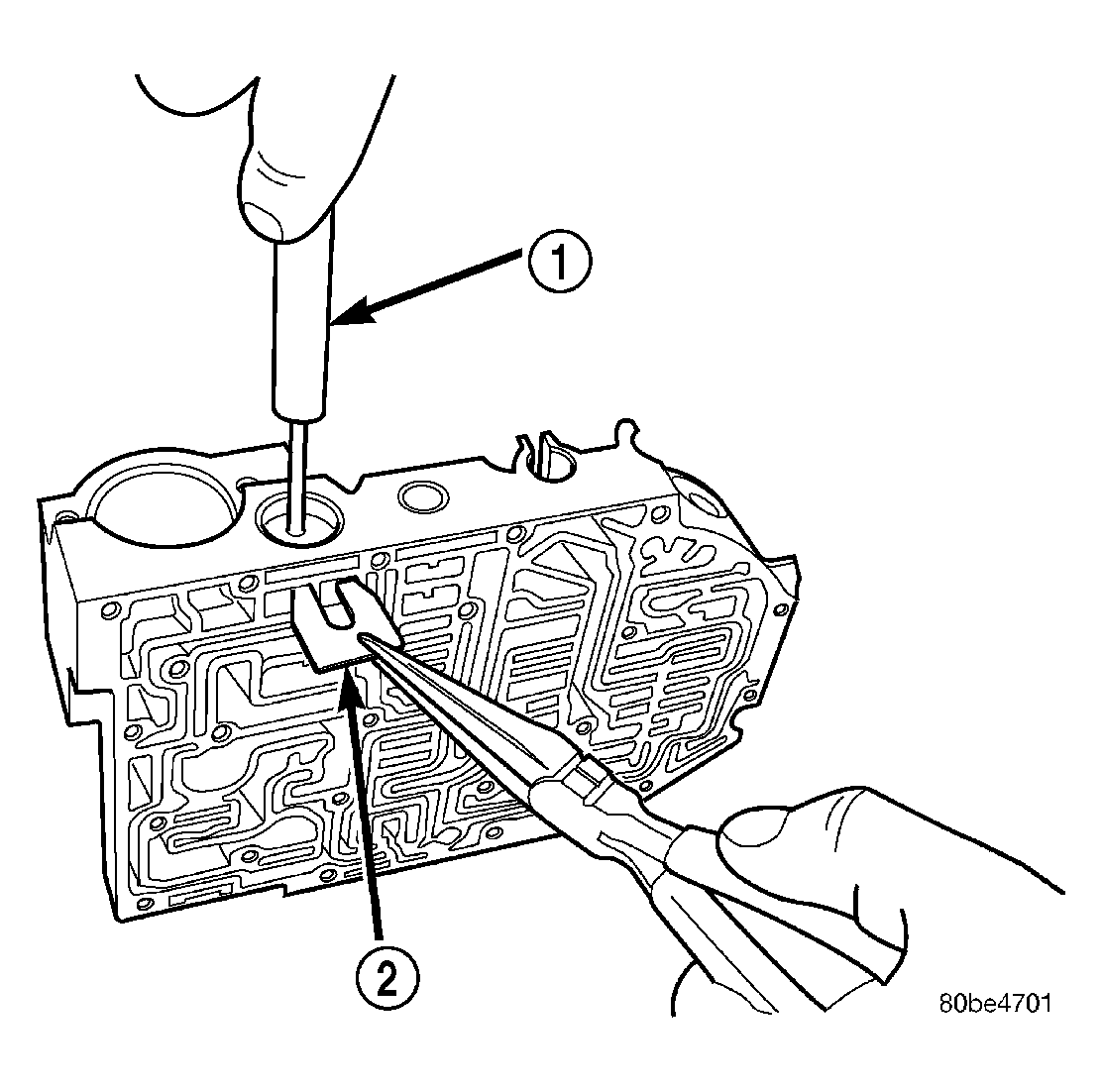

    Fig 15: Removing/Installing Regulator Valve Spring Retainer Using Tool 6302

    Courtesy of CHRYSLER LLC

    1 - TOOL 6302

    2 - RETAINER

20. Remove regulator valve spring retainer (2). See Fig 15.

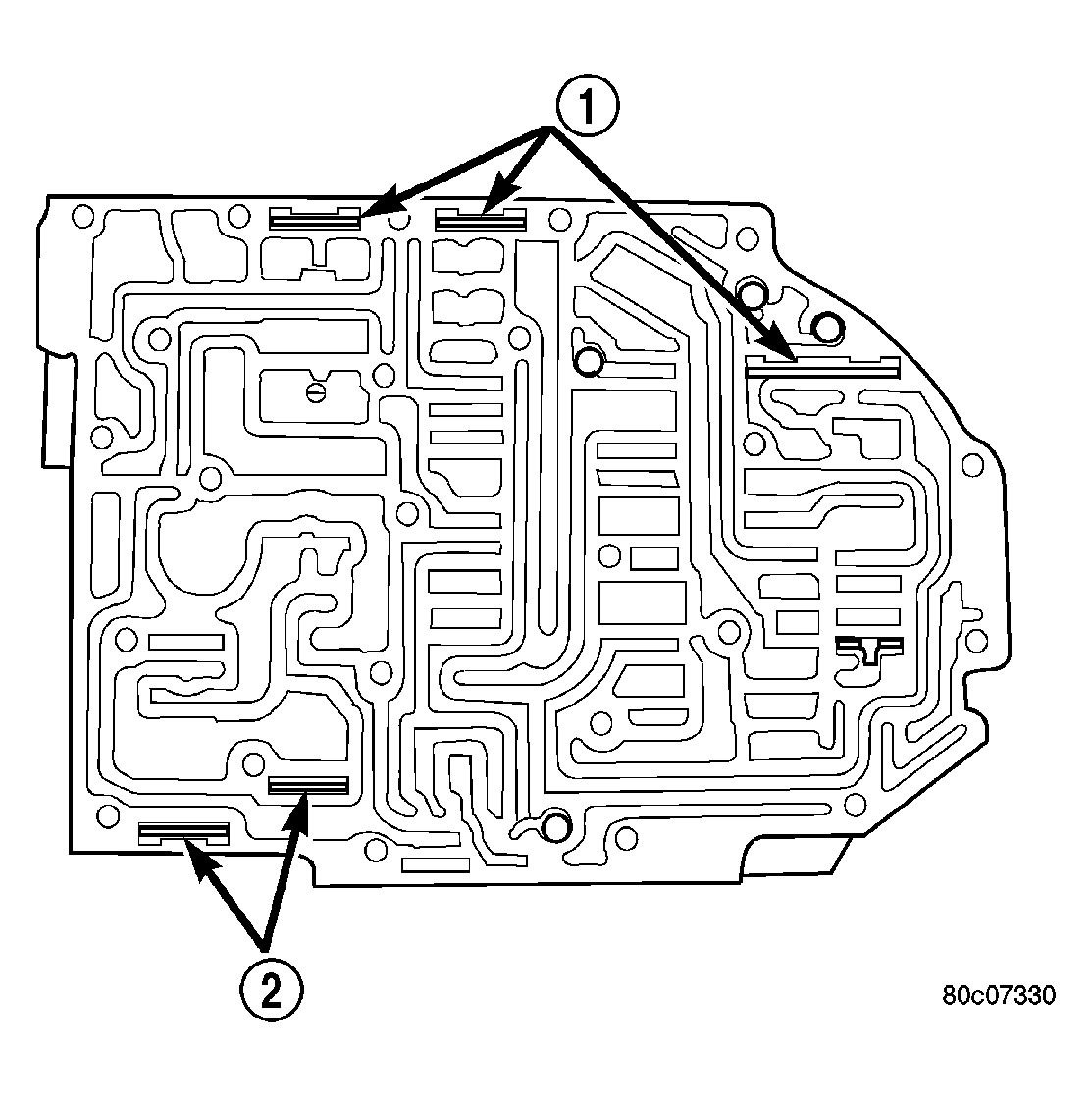

    Fig 16: Valve Retainer Locations

    Courtesy of CHRYSLER LLC

    1 - RETAINER

    2 - RETAINER

21. Remove remaining retainers (1, 2). See Fig 16.

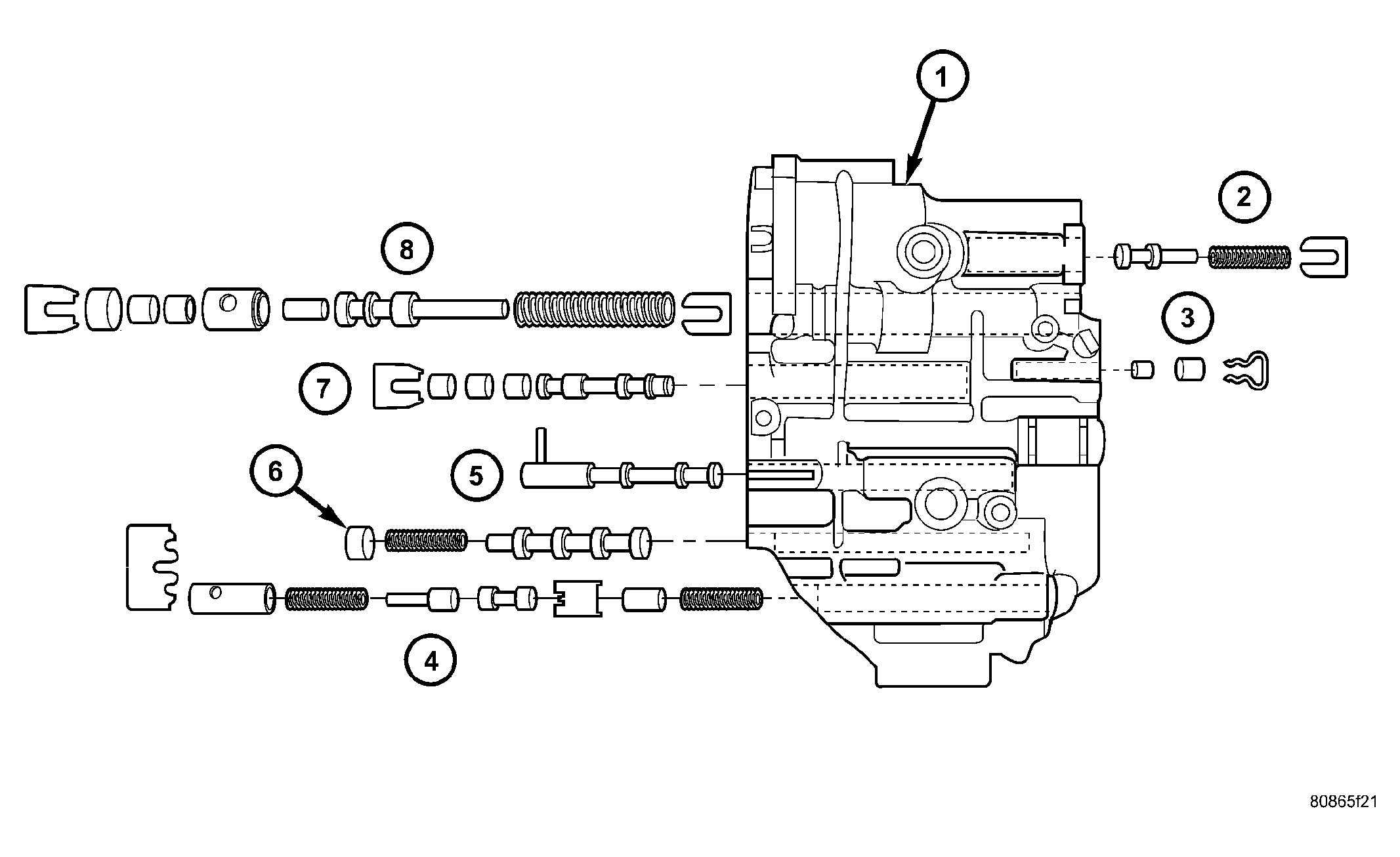

    Fig 17: Locating Springs & Valves

    Courtesy of CHRYSLER LLC

    1 - VALVE BODY

    2 - T/C REGULATOR VALVE

    3 - L/R SWITCH VALVE

    4 - CONVERTER CLUTCH CONTROL VALVE

    5 - MANUAL VALVE

    6 - CONVERTER CLUTCH SWITCH VALVE

    7 - SOLENOID SWITCH VALVE

    8 - REGULATOR VALVE

22. Remove all valves and springs. See Fig 17.
23. Cleanliness through entire disassembly and assembly of the valve body cannot be overemphasized. When disassembling, each part should be washed in a suitable solvent, then dried by compressed air. Do not wipe parts with shop towels.  All mating surfaces in the valve body are accurately machined; therefore, careful handling of all parts must be exercised to avoid nicks or burrs.
