42RLE Automatic Transmission (Service Information): Body-Valve: Description

Fig 1: Valve Body Assembly

Courtesy of CHRYSLER LLC

1 - SOLENOID/PRESSURE SWITCH ASSEMBLY

2 - TRS

3 - TRANSFER PLATE

4 - SEPARATOR PLATE

5 - VALVE BODY

The valve body assembly consists of a cast aluminum valve body (5), separator plate (4), and transfer plate (3). The valve body contains valves and check balls that control fluid delivery to the torque converter clutch, solenoid/pressure switch assembly, and frictional clutches. See Fig 1.

Also mounted to the valve body assembly are the solenoid/pressure switch assembly and the transmission range sensor (2). See Fig 1.

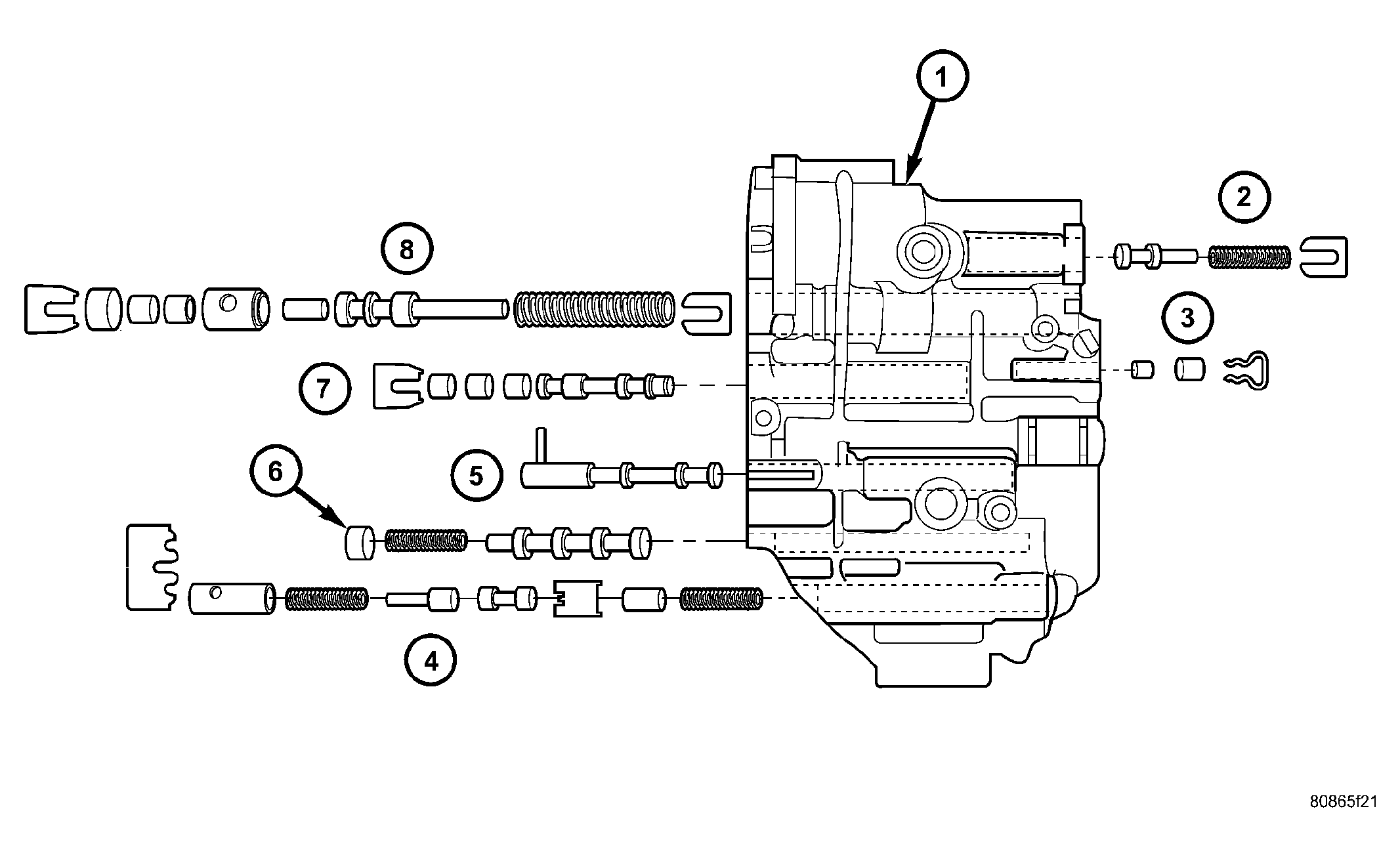

Fig 2: Exploded View Of Valve Body Components

Courtesy of CHRYSLER LLC

1 - VALVE BODY

2 - T/C REGULATOR VALVE

3 - L/R SWITCH VALVE

4 - CONVERTER CLUTCH CONTROL VALVE

5 - MANUAL VALVE

6 - CONVERTER CLUTCH SWITCH VALVE

7 - SOLENOID SWITCH VALVE

8 - REGULATOR VALVE

The valves contained within the valve body (1) include the following:

Regulator valve (8)
Solenoid switch valve (7)
Manual valve (5)
Converter clutch switch valve (6)
Converter clutch control valve (4)
Torque converter regulator valve (2)
Low/Reverse switch valve (3)

In addition, the valve body also contains the thermal valve, #2, 3, 4 & 5 check balls and the 2/4 accumulator assembly.
