Assembly-Input Clutch: Disassembly

NOTE: If the input clutch assembly is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the Quick Learn Procedure using the scan tool. Refer to STANDARD PROCEDURE .

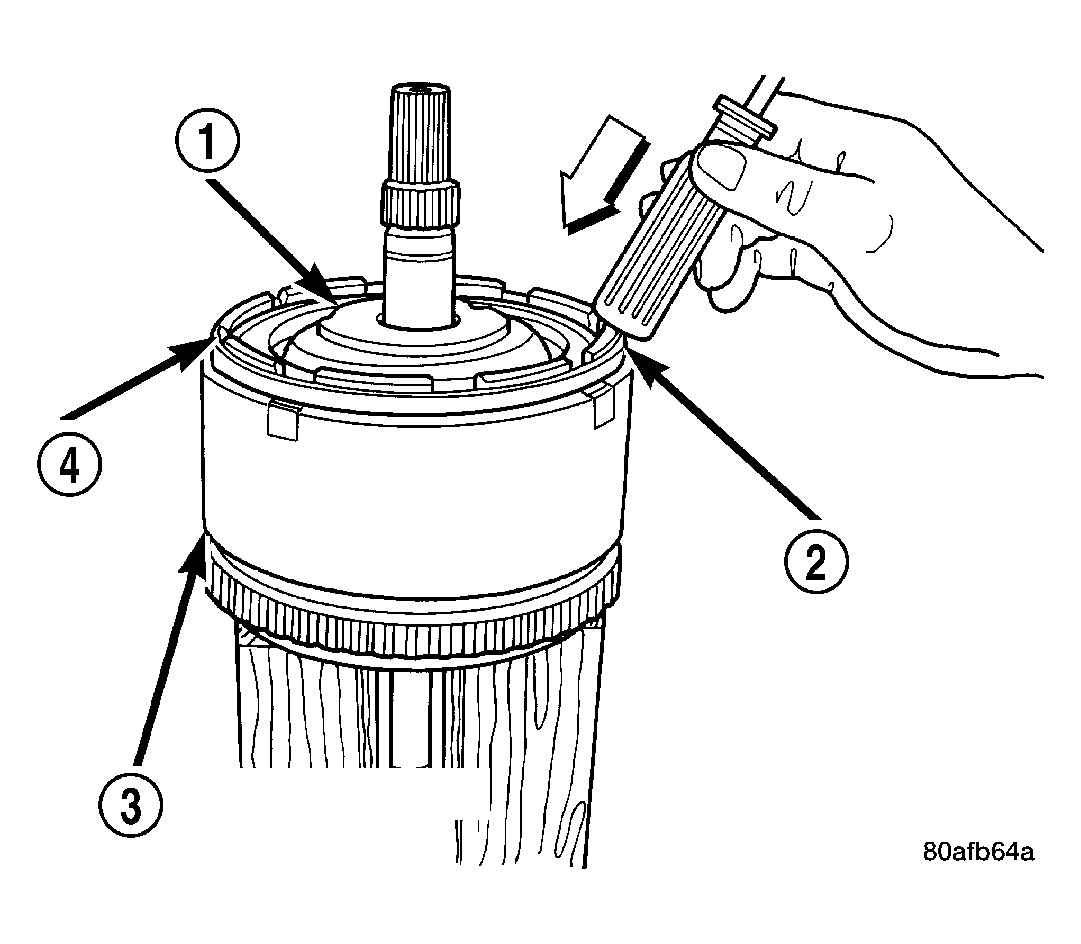

Fig 1: Tapping Reaction Plate

Courtesy of CHRYSLER LLC

1 - #4 THRUST PLATE (SELECT)

2 - TAP DOWN REVERSE CLUTCH REACTION PLATE TO REMOVE OR INSTALL SNAP RING

3 - INPUT CLUTCH RETAINER

4 - REVERSE CLUTCH REACTION PLATE

Mount input clutch assembly to Input Clutch Pressure Fixture (Tool 8391).

Tap down (2) reverse clutch reaction plate (4) to release pressure from snap ring.

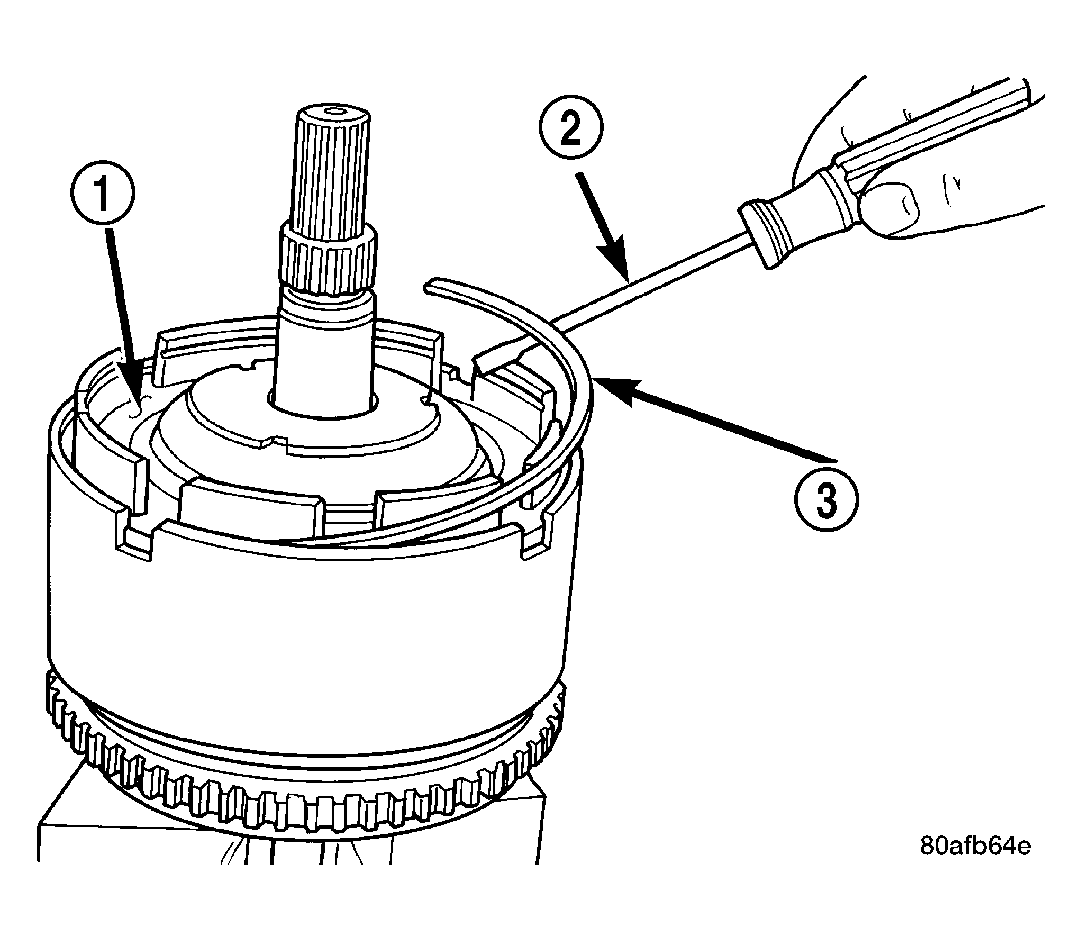

Fig 2: Removing Reverse Clutch Snap Ring

Courtesy of CHRYSLER LLC

1 - REACTION PLATE

2 - SCREWDRIVER

3 - REVERSE CLUTCH SNAP RING (SELECT)

Remove reverse clutch snap ring (3). See Fig 2.

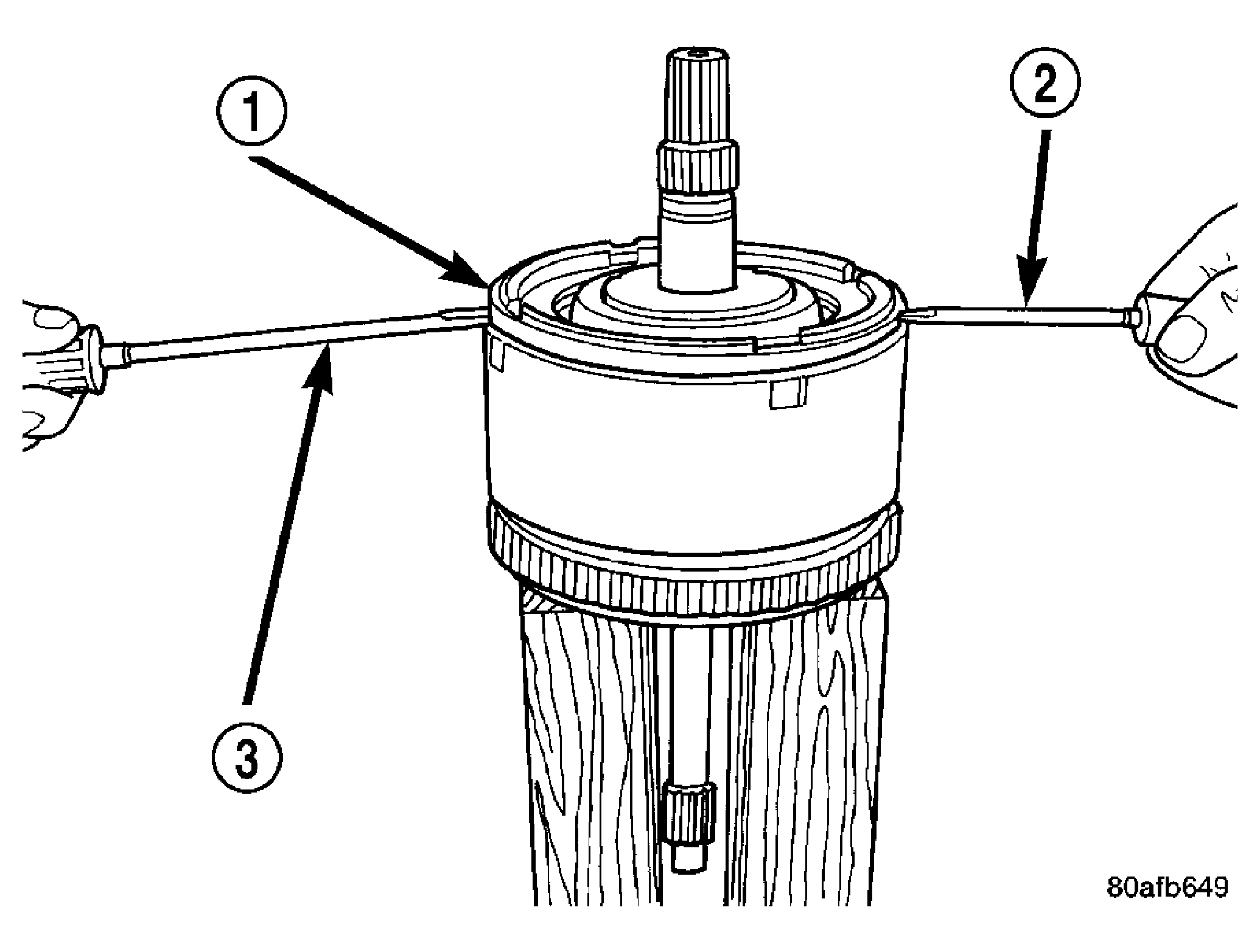

Fig 3: Pry Reverse Clutch Reaction Plate

Courtesy of CHRYSLER LLC

1 - REVERSE CLUTCH REACTION PLATE

2 - SCREWDRIVER

3 - SCREWDRIVER

Pry up reverse clutch reaction plate (1). See Fig 3.

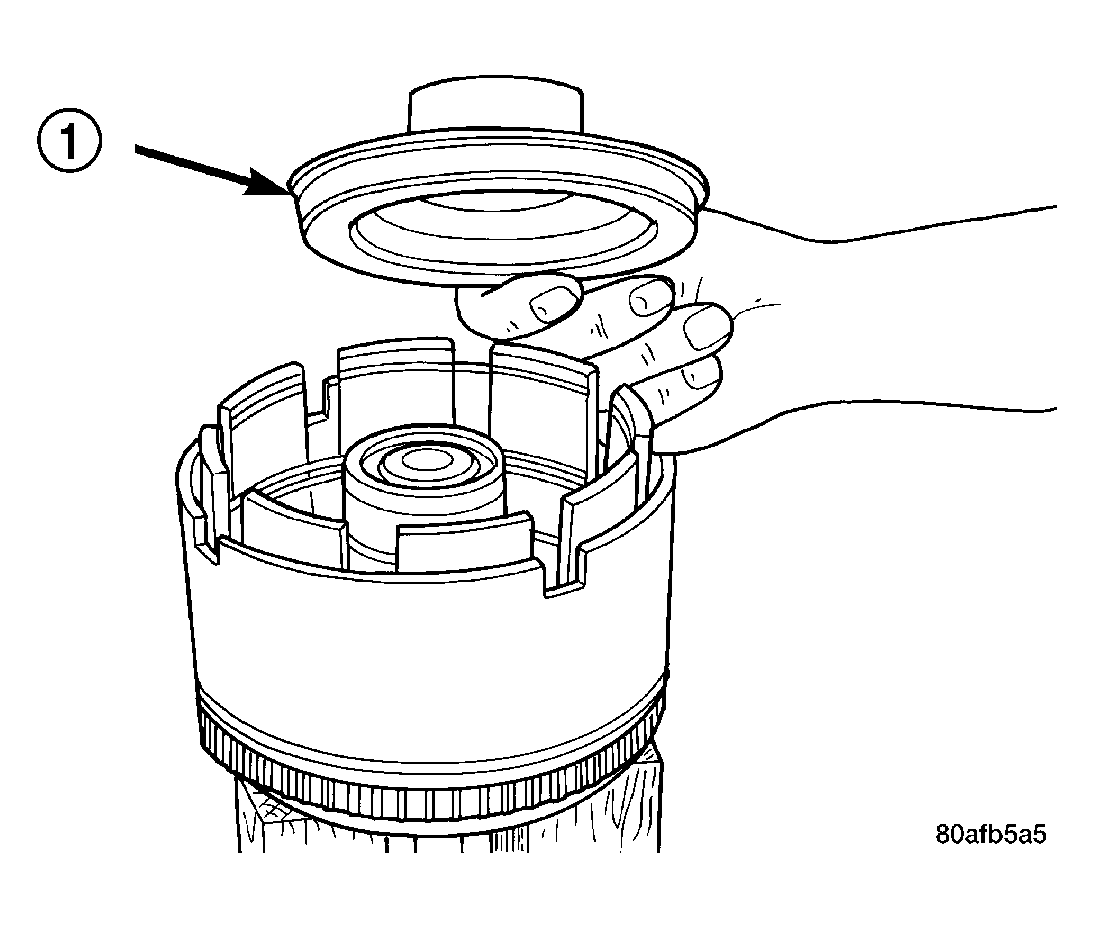

Fig 4: Reverse Clutch Reaction Plate
Courtesy of CHRYSLER LLC

1 - REVERSE CLUTCH REACTION PLATE (INSTALL FLAT SIDE DOWN)
Remove reverse clutch reaction plate (1). See Fig 4.

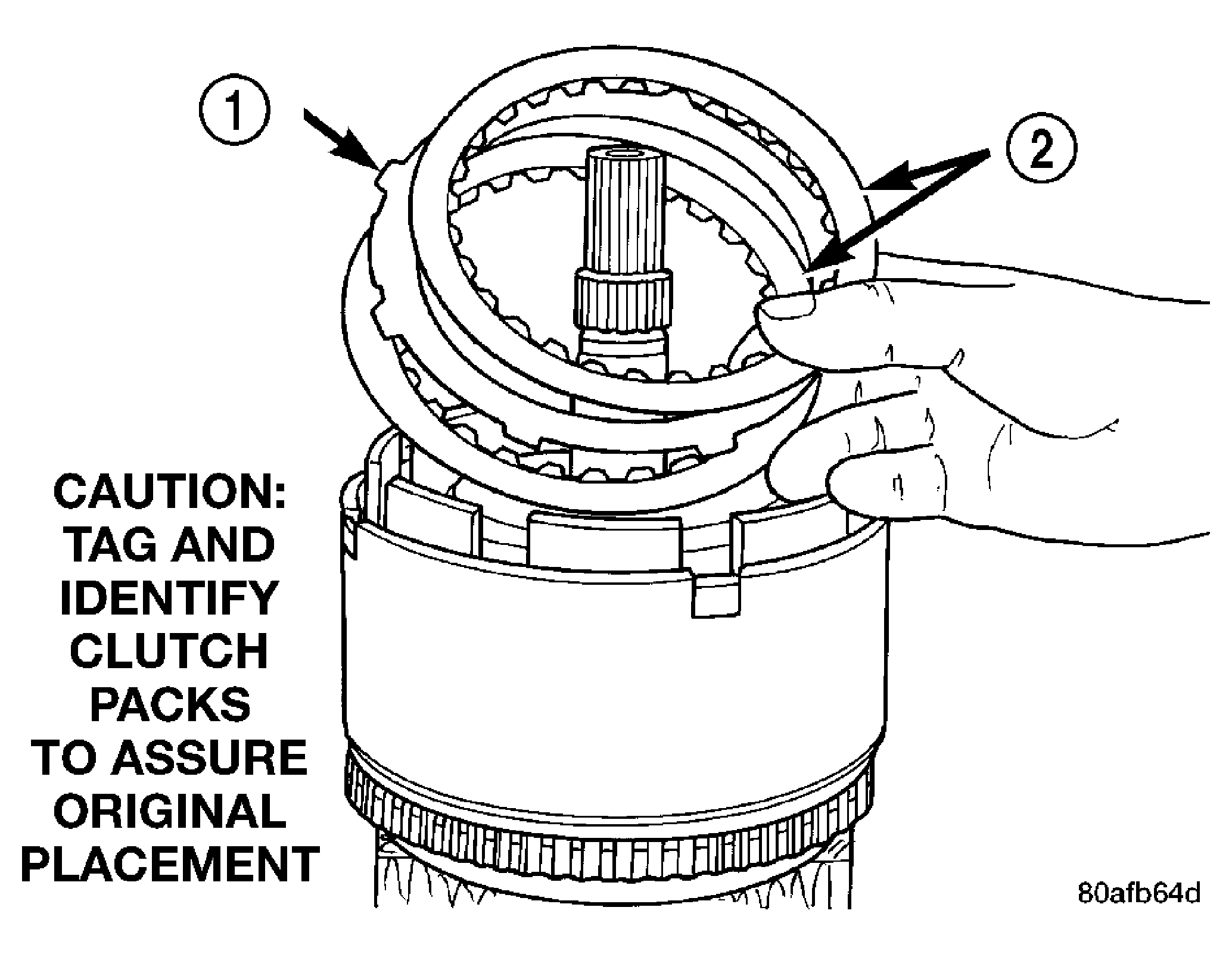

Fig 5: View Of Reverse Clutch Pack
Courtesy of CHRYSLER LLC

1 - REVERSE CLUTCH PLATE

2 - REVERSE CLUTCH DISC

NOTE: Tag reverse clutch pack for reassembly identification.

Remove the reverse clutch pack (two fibers/one steel) (1, 2). See Fig 5.

Fig 6: OD/Reverse Pressure Plate Snap Ring

Courtesy of CHRYSLER LLC

1 - OD/REVERSE PRESSURE PLATE

2 - SCREWDRIVER

3 - OD/REVERSE PRESSURE PLATE SNAP RING

Remove the OD/Reverse reaction plate (1) snap ring (3). See Fig 6.

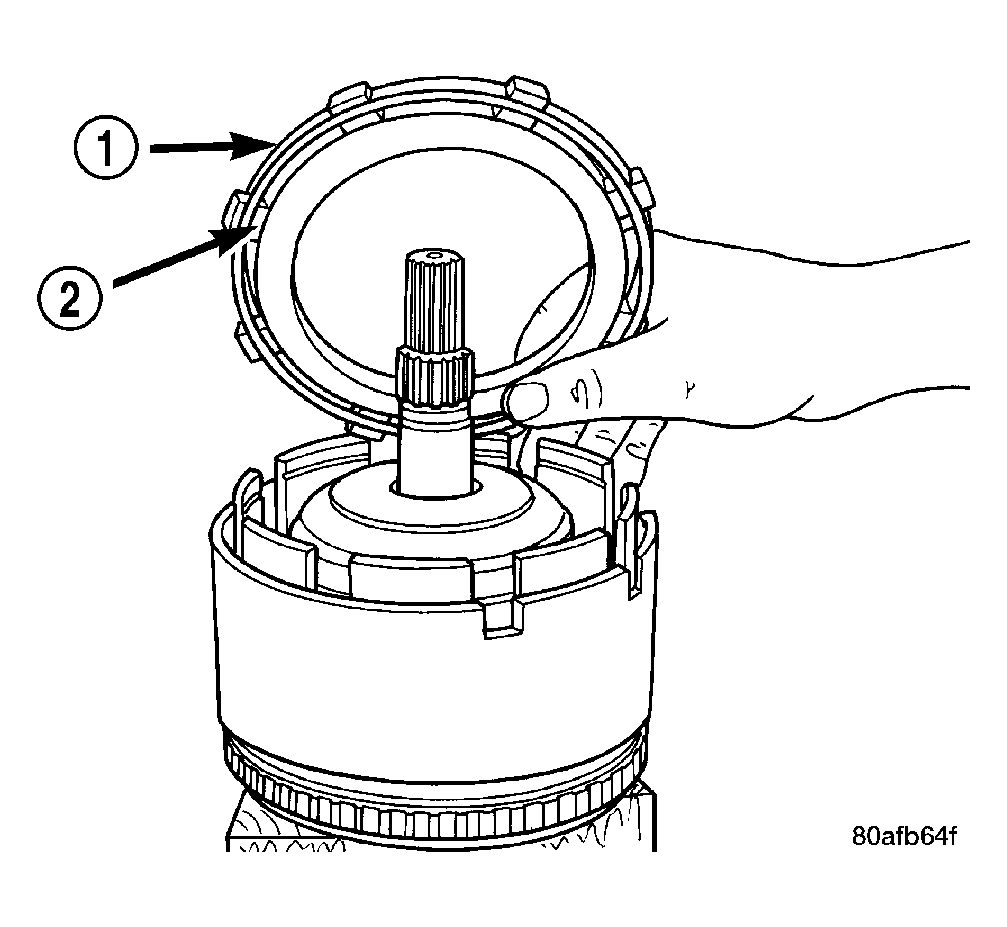

Fig 7: OD/Reverse Reaction Plate
Courtesy of CHRYSLER LLC

1 - OD/REVERSE PRESSURE PLATE (STEP SIDE DOWN)

2 - (STEP SIDE DOWN)

Remove OD/Reverse pressure plate (1). See Fig 7.

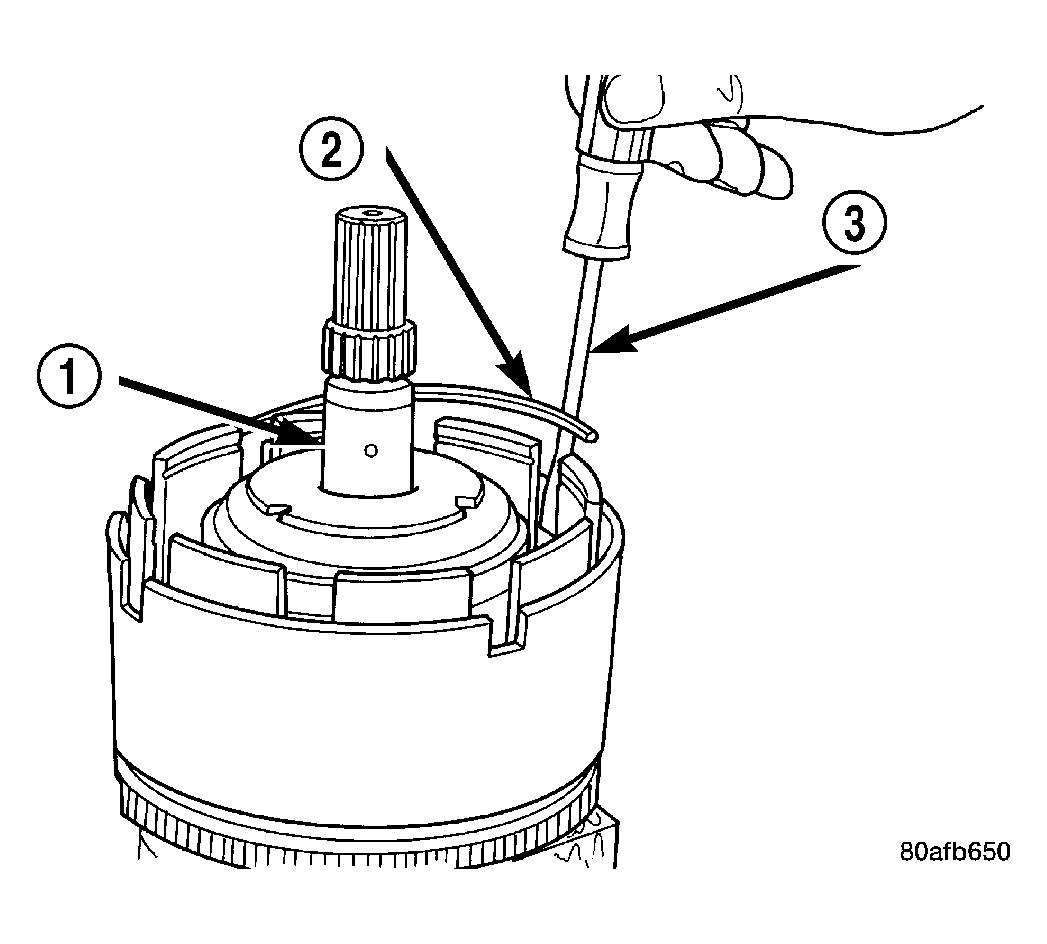

Fig 8: OD/Reverse Reaction Plate Waved Snap Ring

Courtesy of CHRYSLER LLC

1 - OVERDRIVE SHAFT ASSEMBLY

2 - OD/REVERSE CLUTCH WAVED SNAP RING

3 - SCREWDRIVER

Remove OD/Reverse reaction plate wave snap ring (2). See Fig 8.

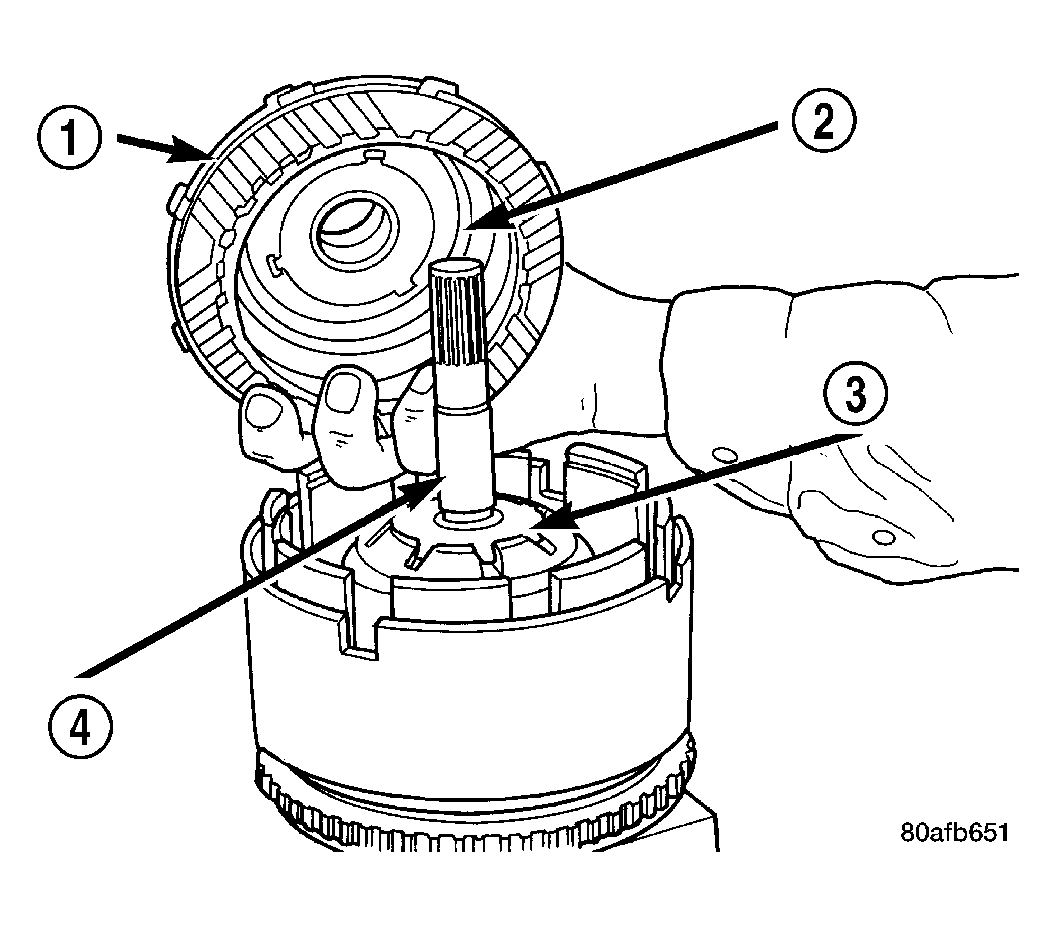

Fig 9: Removing Overdrive Shaft Assembly And OD Clutch Pack

Courtesy of CHRYSLER LLC

1 - OVERDRIVE SHAFT ASSEMBLY AND OD CLUTCH PACK

2 - #3 THRUST PLATE

3 - #3 THRUST WASHER

4 - UNDERDRIVE SHAFT ASSEMBLY

Remove OD shaft/hub and OD clutch pack (1). See Fig 9.

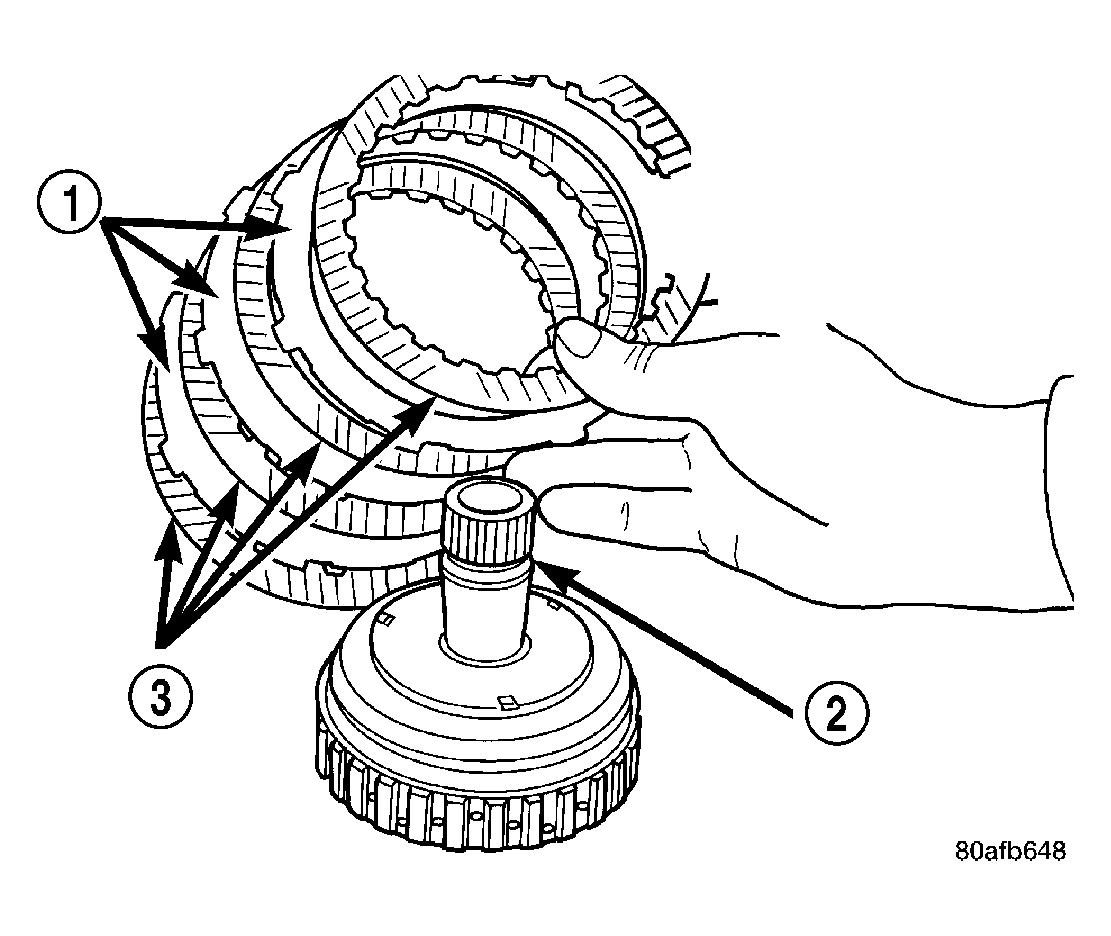

Fig 10: Overdrive Clutch Pack Components

Courtesy of CHRYSLER LLC

1 - OVERDRIVE CLUTCH PLATE

2 - OVERDRIVE SHAFT ASSEMBLY

3 - OVERDRIVE CLUTCH DISC

NOTE: Tag overdrive clutch pack for reassembly identification.

Remove the overdrive clutch (1, 3) from the overdrive hub/shaft (2). See Fig 10.

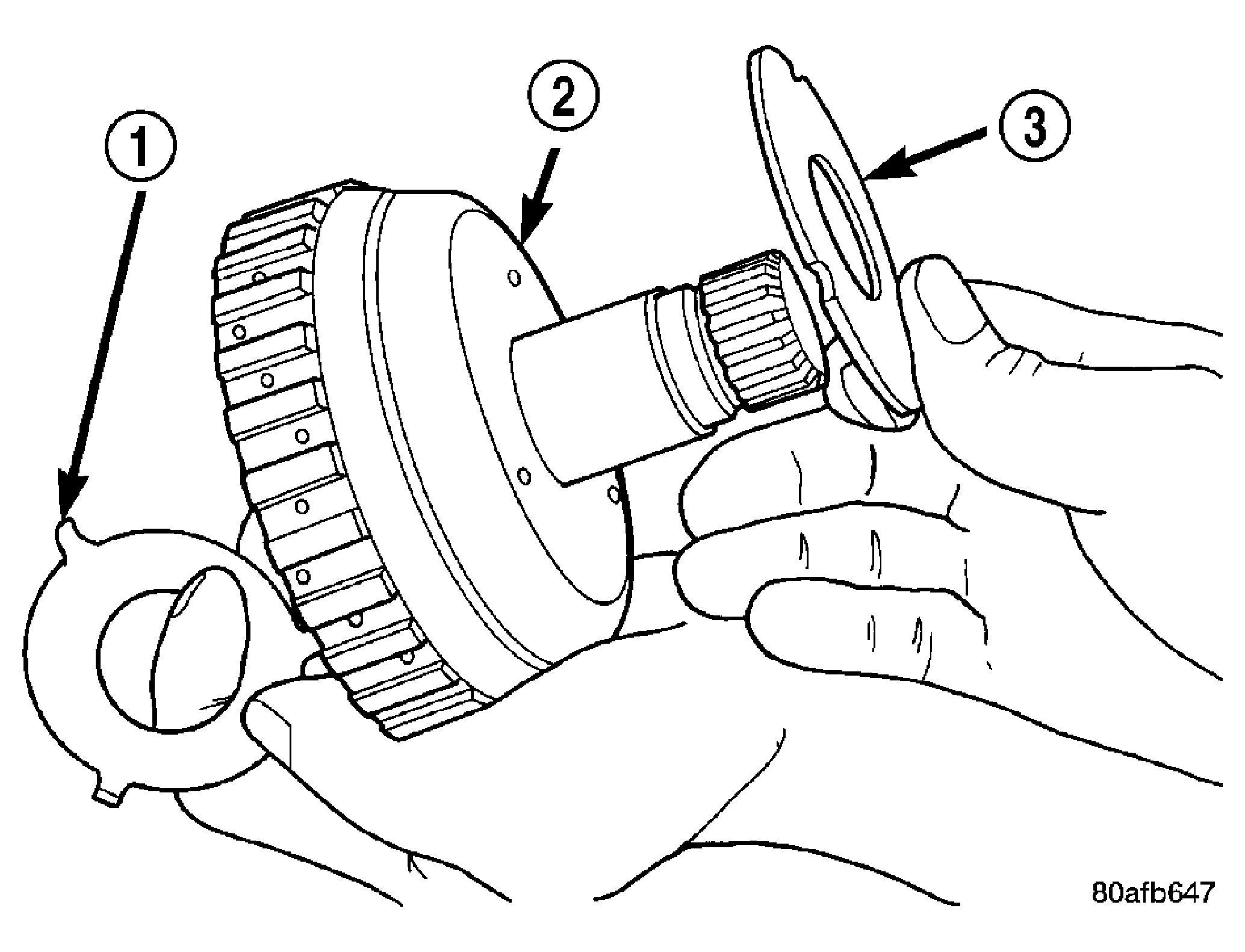

Fig 11: No. 3 And No. 4 Thrust Plates

Courtesy of CHRYSLER LLC

1 - #3 THRUST PLATE (3 TABS)

2 - OD SHAFT ASSEMBLY

3 - #4 THRUST PLATE (3 SLOTS)

Remove and inspect number 3 and 4 thrust plates (1, 3). See Fig 11.

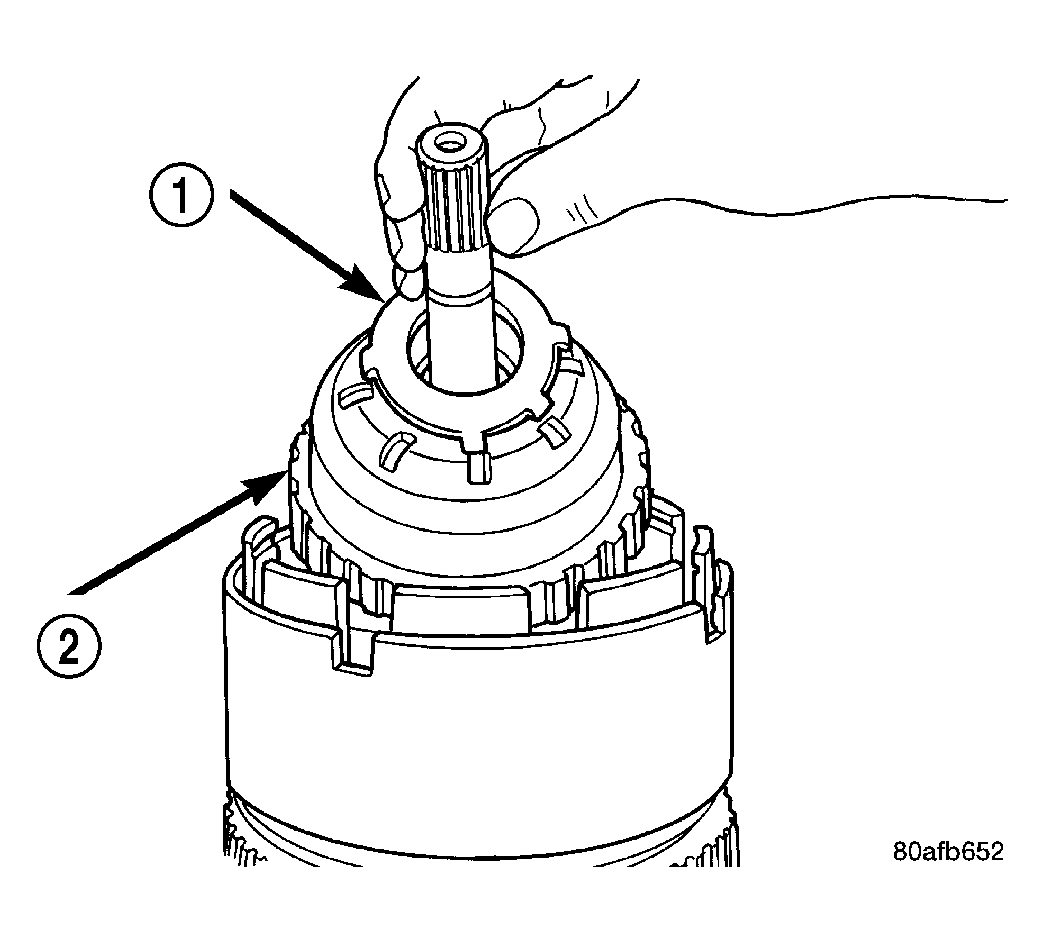

Fig 12: Underdrive Shaft Assembly
Courtesy of CHRYSLER LLC

1 - #3 THRUST WASHER (5 TABS)

2 - UNDERDRIVE SHAFT ASSEMBLY
Remove the underdrive shaft assembly (2). See Fig 12.

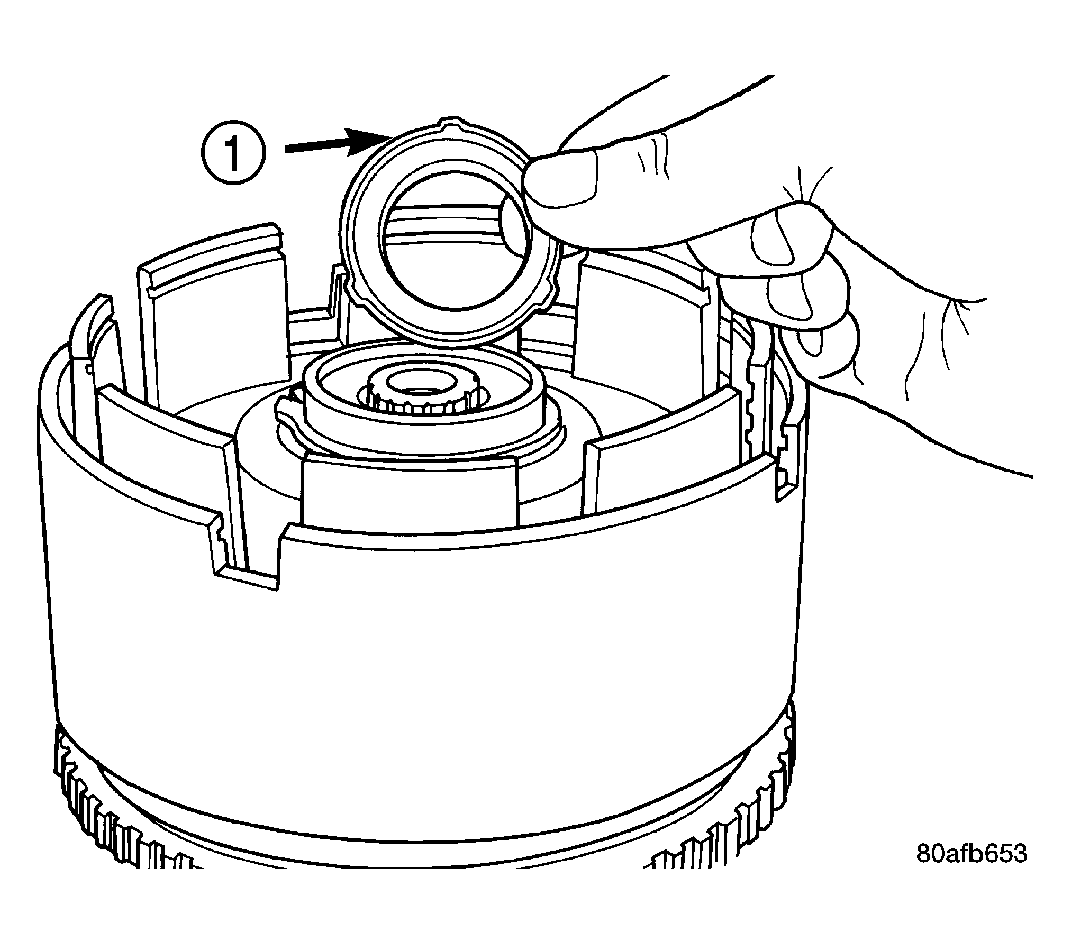

Fig 13: No. 2 Needle Bearing
Courtesy of CHRYSLER LLC

1 - #2 NEEDLE BEARING (NOTE 3 TABS)

Remove the number 2 needle bearing (1). See Fig 13.

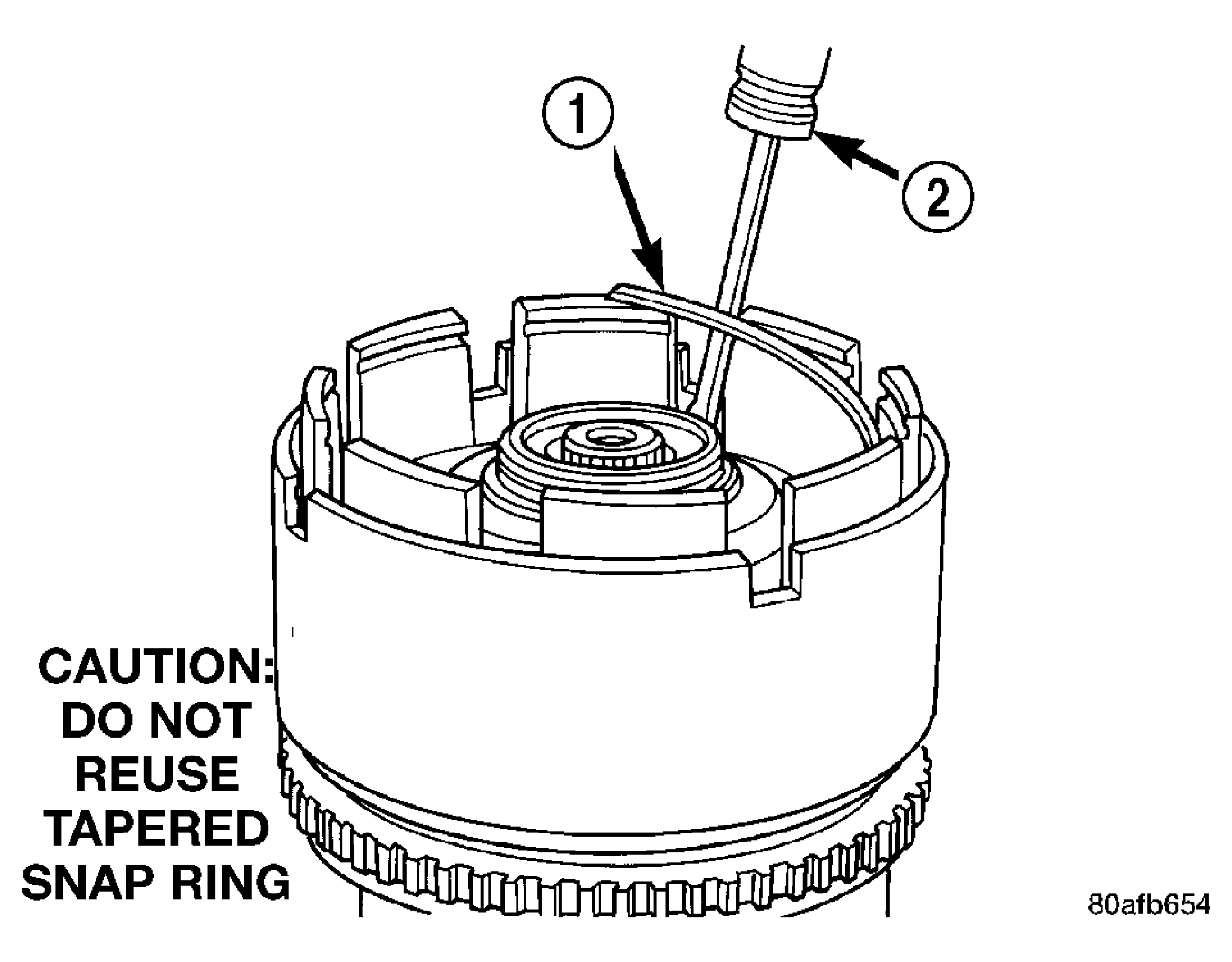

Fig 14: Removing Tapered Snap Ring

Courtesy of CHRYSLER LLC

1 - OVERDRIVE/UNDERDRIVE CLUTCHES REACTION PLATE TAPERED SNAP RING

2 - SCREWDRIVER (DO NOT SCRATCH REACTION PLATE)

Remove the OD/UD reaction plate tapered snap ring (1). See Fig 14.

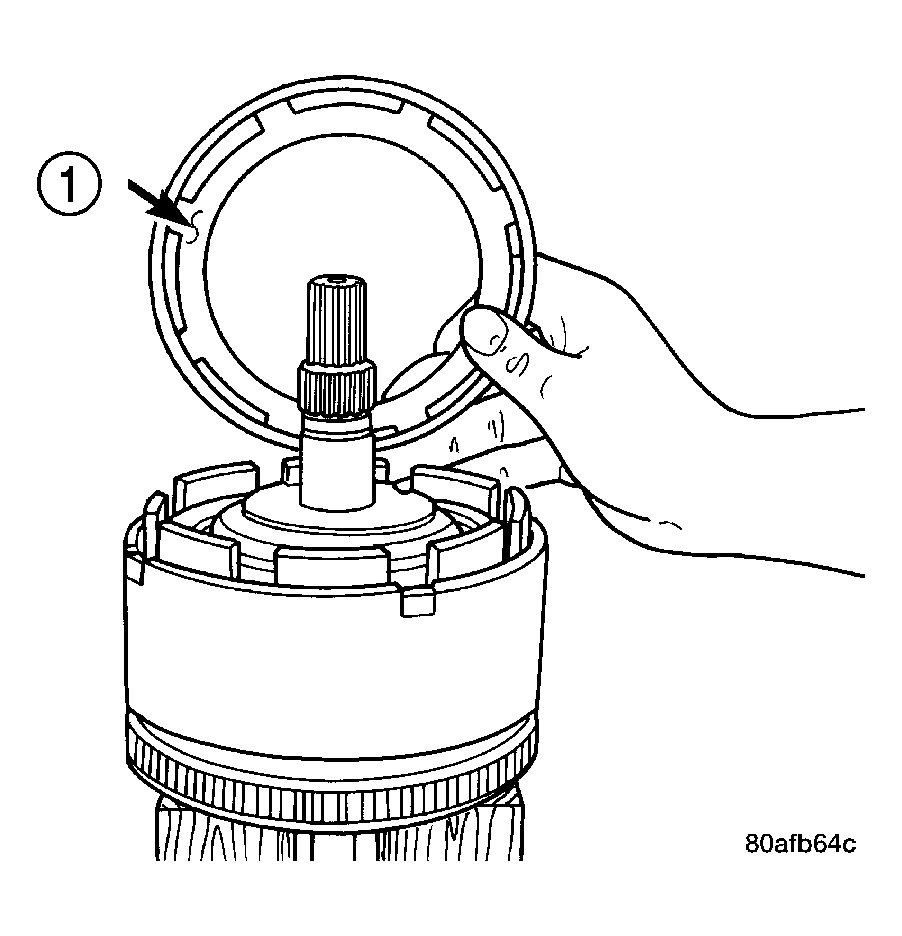

Fig 15: OD/UD Reaction Plate
Courtesy of CHRYSLER LLC

1 - OD/UD CLUTCH REACTION PLATE (STEP SIDE DOWN)

NOTE: The OD/UD clutch reaction plate has a step on both sides. The OD/UD clutches reaction plate goes tapered step side up.
Remove the OD/UD reaction plate (1). See Fig 15.

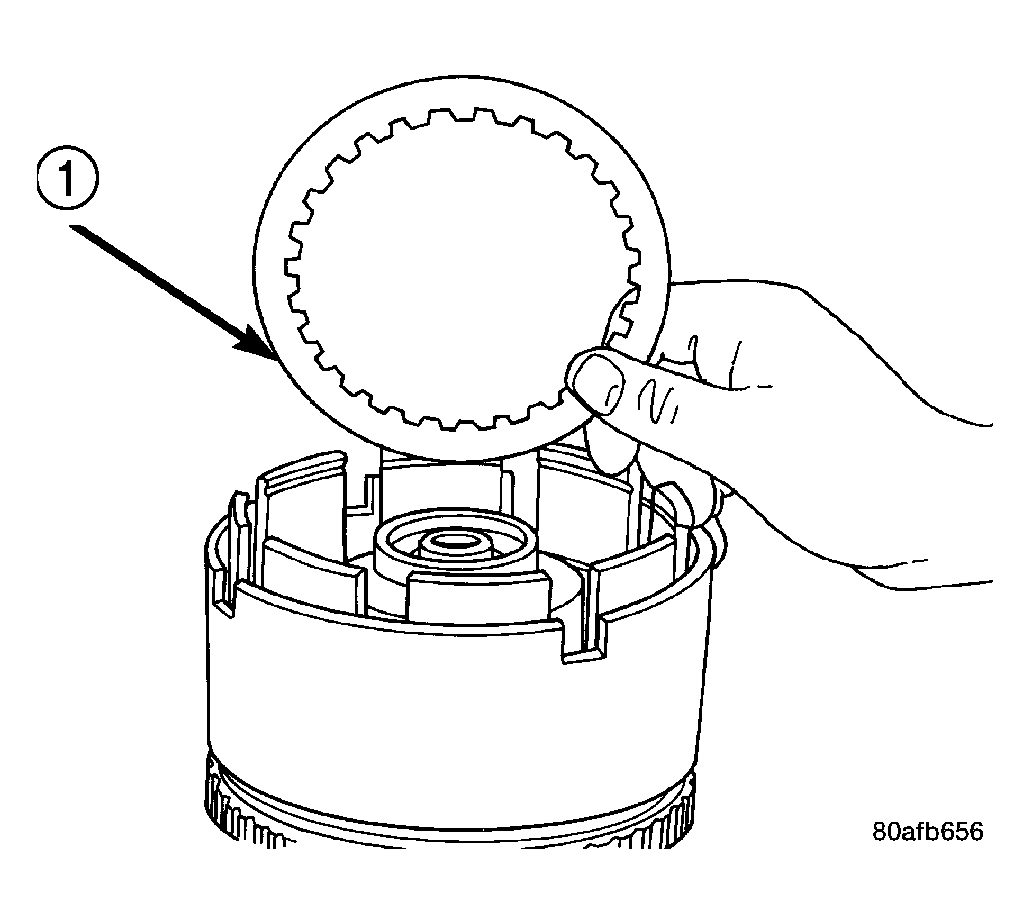

Fig 16: Removing/Installing Last UD Clutch Disc
Courtesy of CHRYSLER LLC

1 - ONE UNDERDRIVE CLUTCH DISC
Remove the first UD clutch disc (1). See Fig 16.

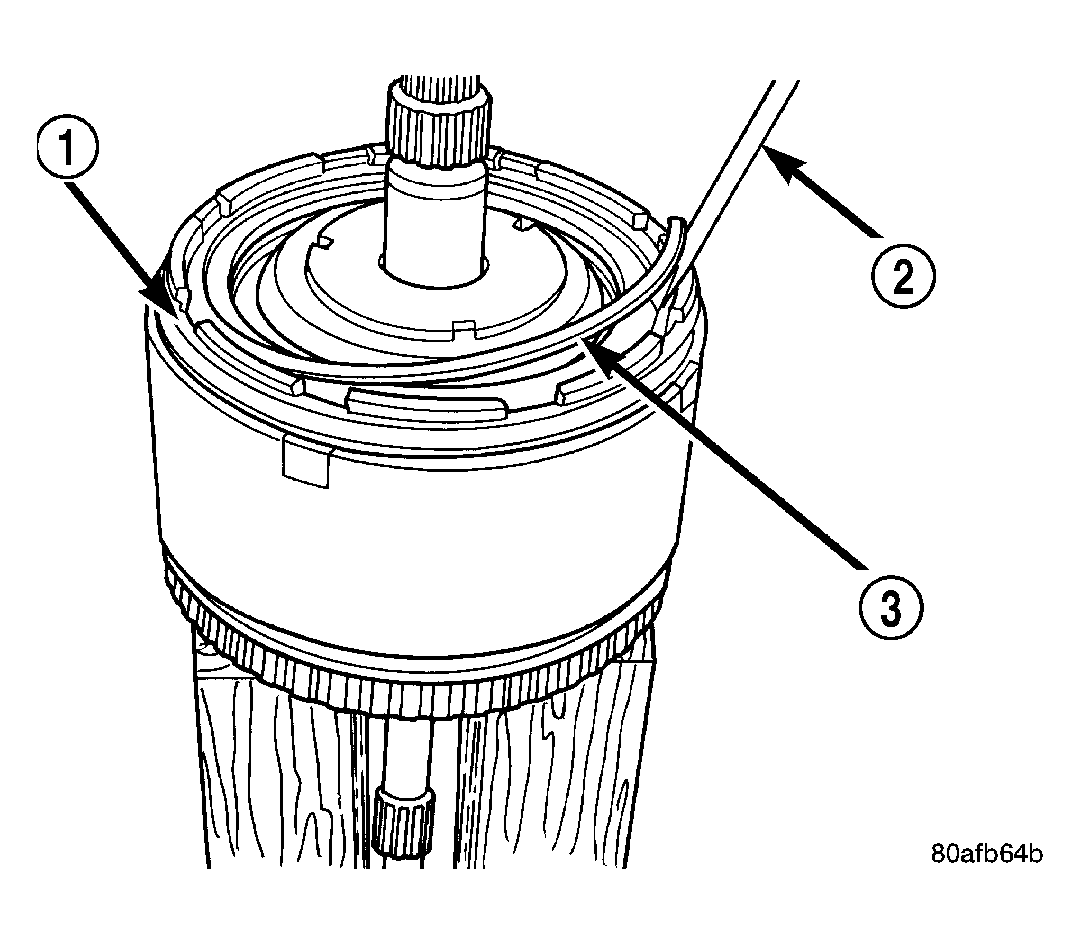

Fig 17: UD Clutch Flat Snap Ring
Courtesy of CHRYSLER LLC

1 - UNDERDRIVE CLUTCH REACTION PLATE FLAT SNAP RING

2 - SCREWDRIVER

Remove the UD clutch flat snap ring (1). See Fig 17.

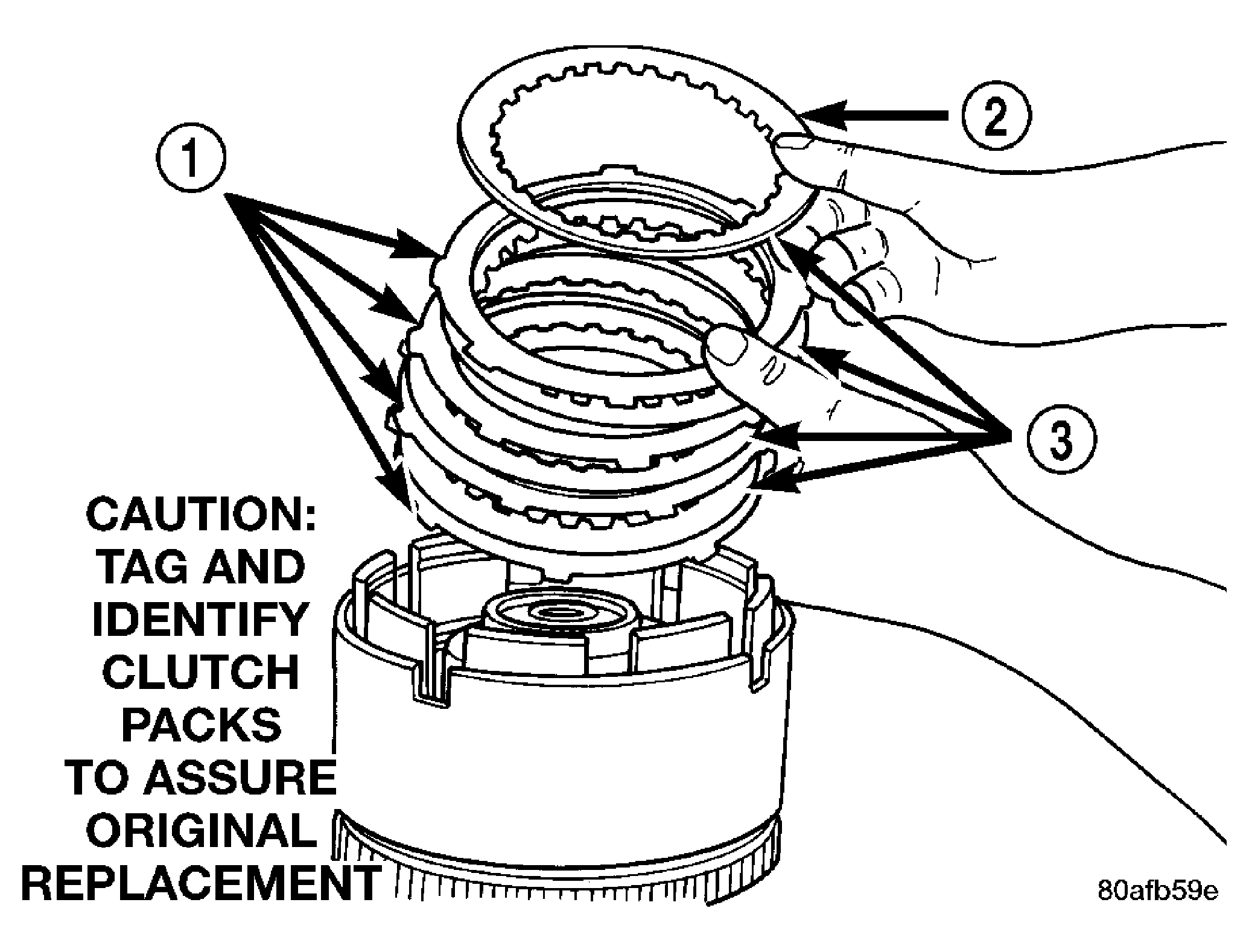

Fig 18: Identifying Underdrive Clutch Pack Components

Courtesy of CHRYSLER LLC

1 - CLUTCH PLATE

2 - ONE UD CLUTCH DISC

3 - CLUTCH DISC

NOTE: Tag underdrive clutch pack for reassembly identification.

Remove the UD clutch pack (1, 3). See Fig 18.

Fig 19: Removing/Installing UD Spring Retainer Snap Ring

Courtesy of CHRYSLER LLC

1 - SNAP RING PLIERS

2 - ARBOR PRESS RAM

3 - SNAP RING

4 - COMPRESSOR 5059A

CAUTION: Compress return spring just enough to remove or install snap ring.

Using Compressor 5059A (4) and an arbor press (2), compress UD clutch piston enough to remove snap ring (3). See Fig 19.

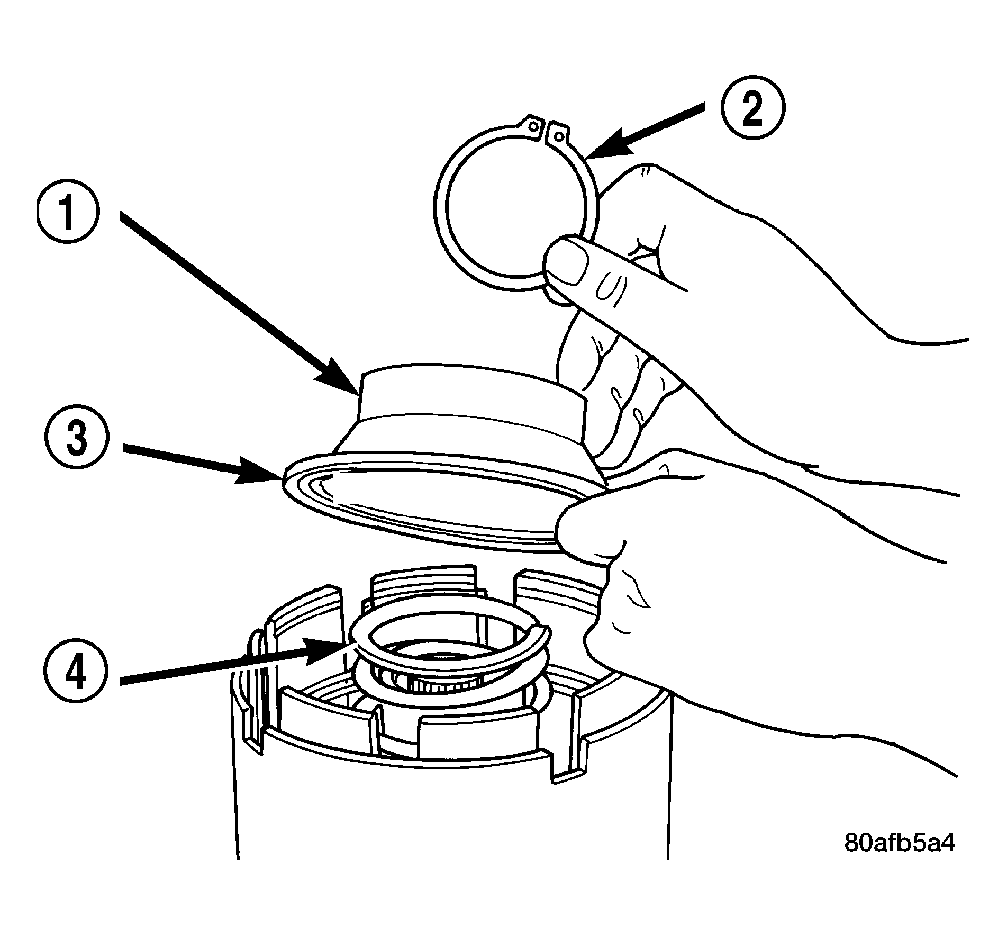

Fig 20: UD Return Spring & Retainer

Courtesy of CHRYSLER LLC

1 - UNDERDRIVE SPRING RETAINER

2 - SNAP RING

3 - SEAL

4 - PISTON RETURN SPRING

Remove the underdrive spring retainer snap ring (2), spring retainer (1), and spring (4). See Fig 20.

Fig 21: Underdrive Clutch Piston
Courtesy of CHRYSLER LLC

1 - PISTON

Remove the UD clutch piston (1). See Fig 21.

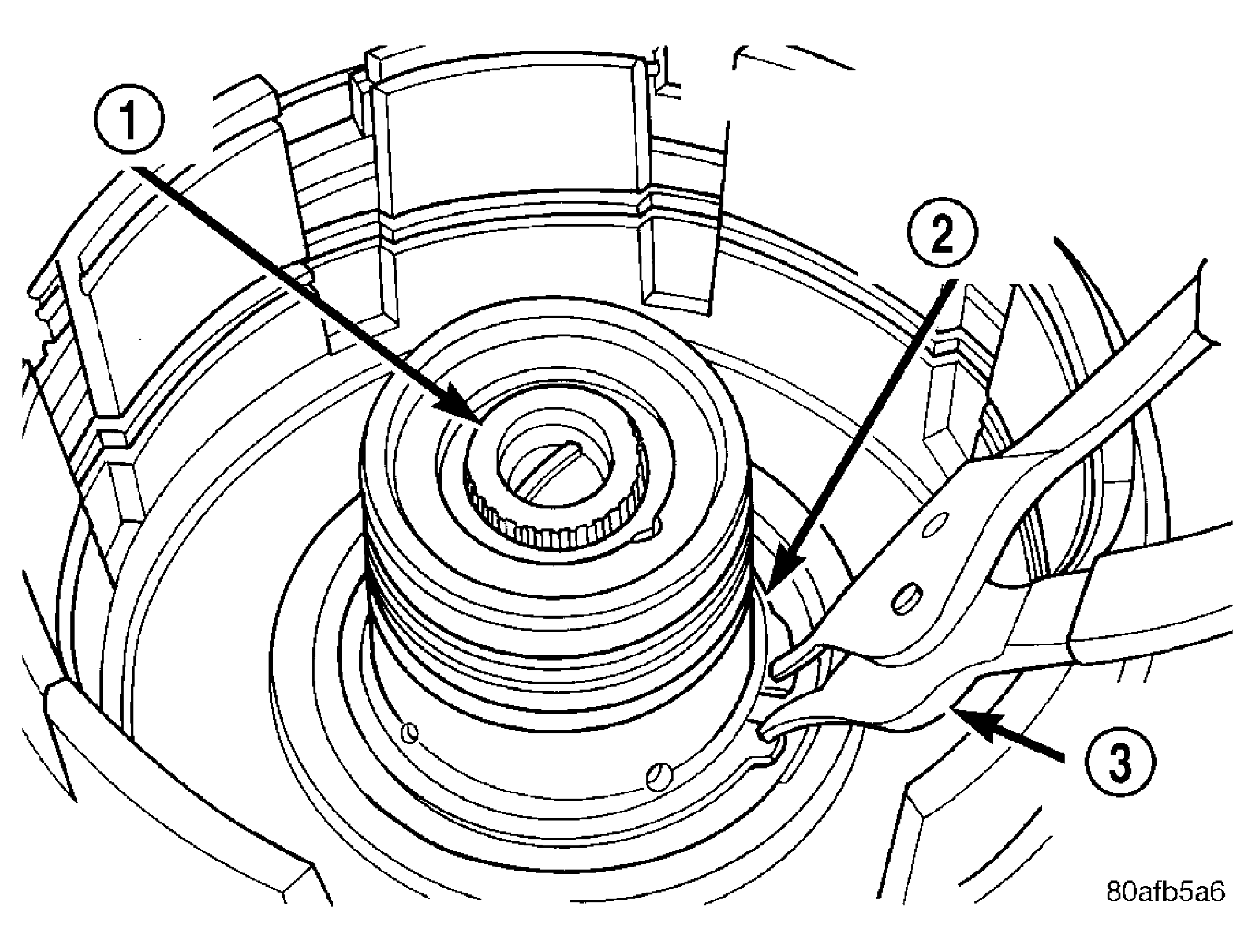

Fig 22: View Of Input Hub Tapered Snap Ring

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - INPUT HUB SNAP RING (TAPERED SIDE UP WITH TABS IN CAVITY)

3 - SNAP RING PLIERS

Remove the input hub tapered snap ring (2). See Fig 22.

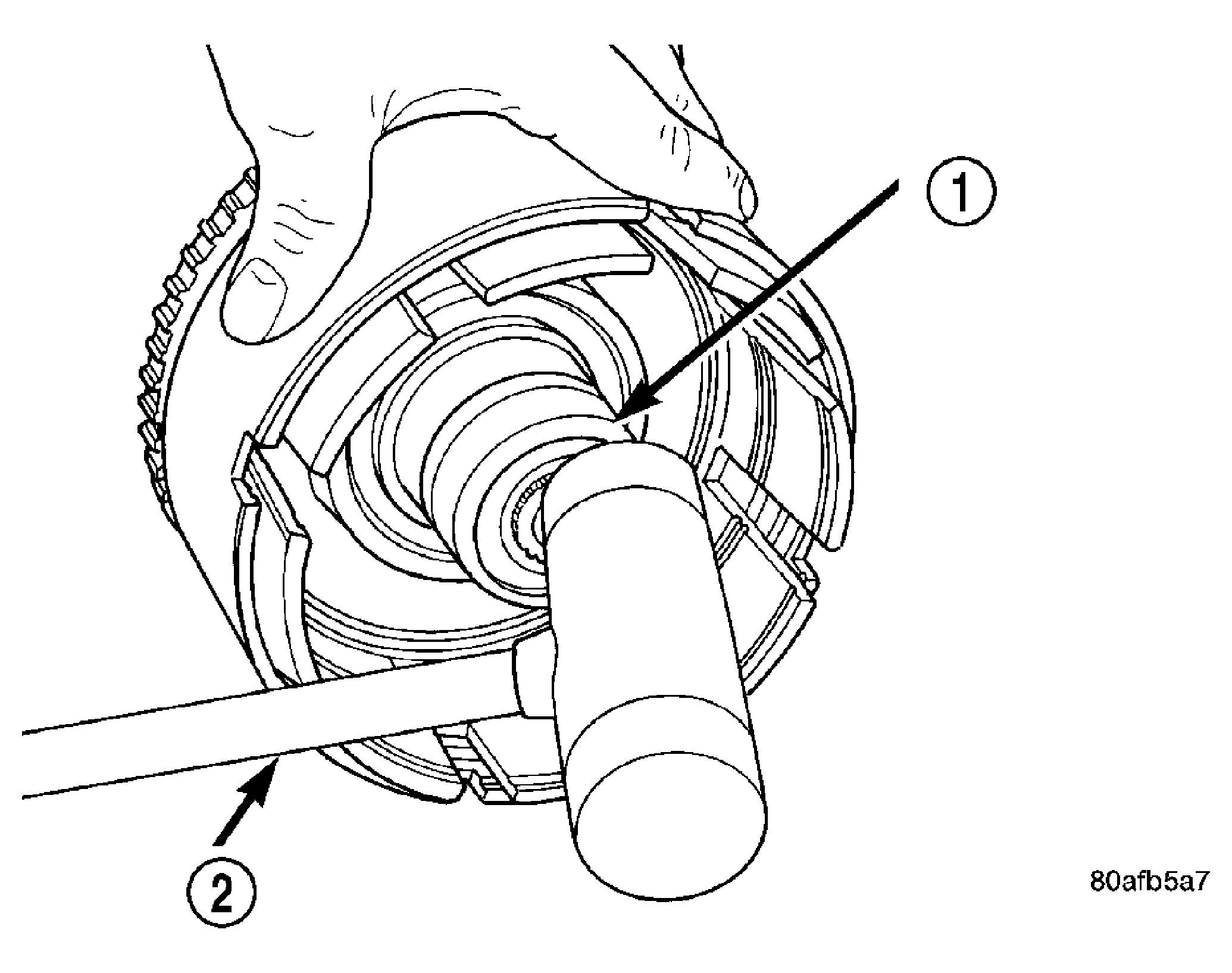

Fig 23: Tapping Out Input Hub
Courtesy of CHRYSLER LLC

1 - INPUT SHAFT AND HUB ASSEMBLY

2 - PLASTIC HAMMER

Tap on input hub (1) with soft faced hammer (2) and separate input hub from OD/Reverse piston and clutch retainer.

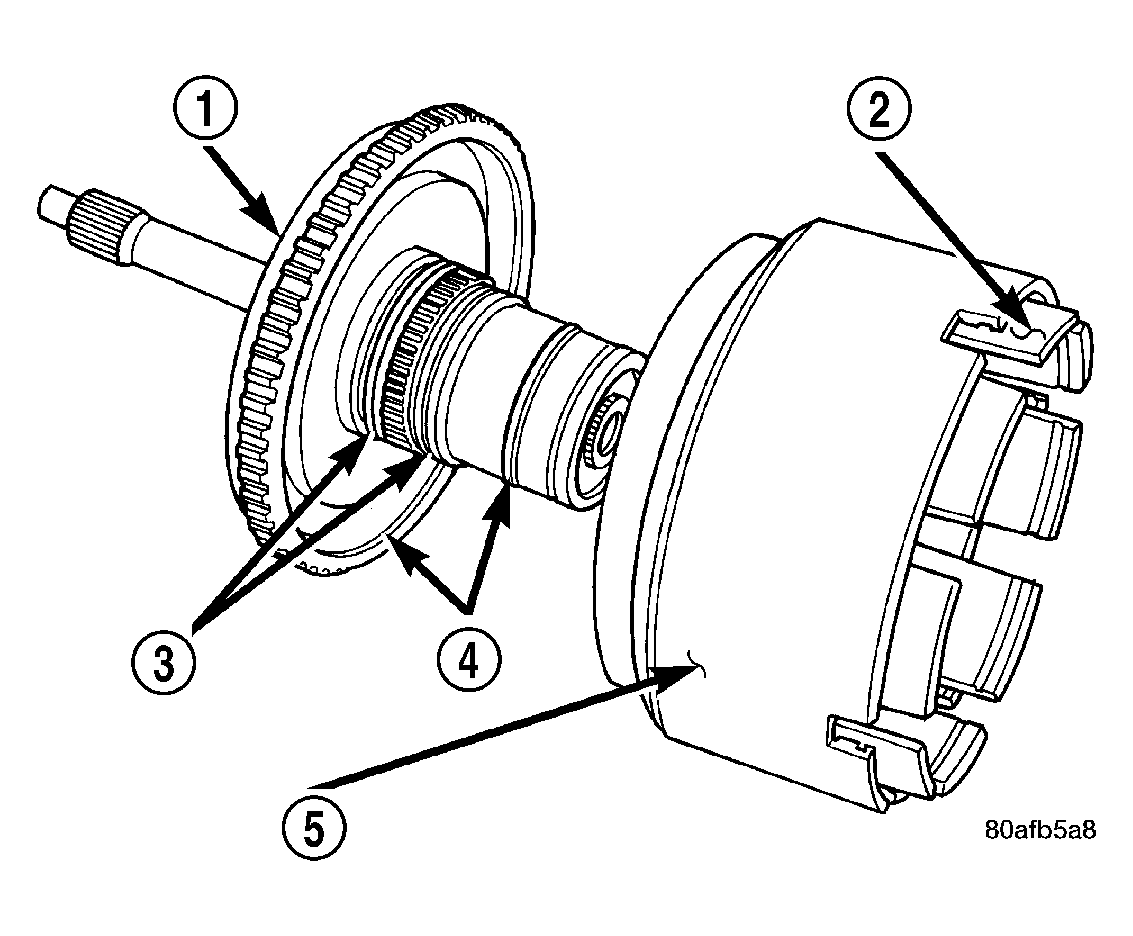

Fig 24: Identifying Input Hub And OD/Reverse Piston

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT AND HUB ASSEMBLY

2 - INPUT CLUTCH RETAINER

3 - O-RING

4 - SEAL

5 - OVERDRIVE/REVERSE PISTON

Separate the input hub from OD/Reverse piston (5) and clutch retainer (2). See Fig 24.

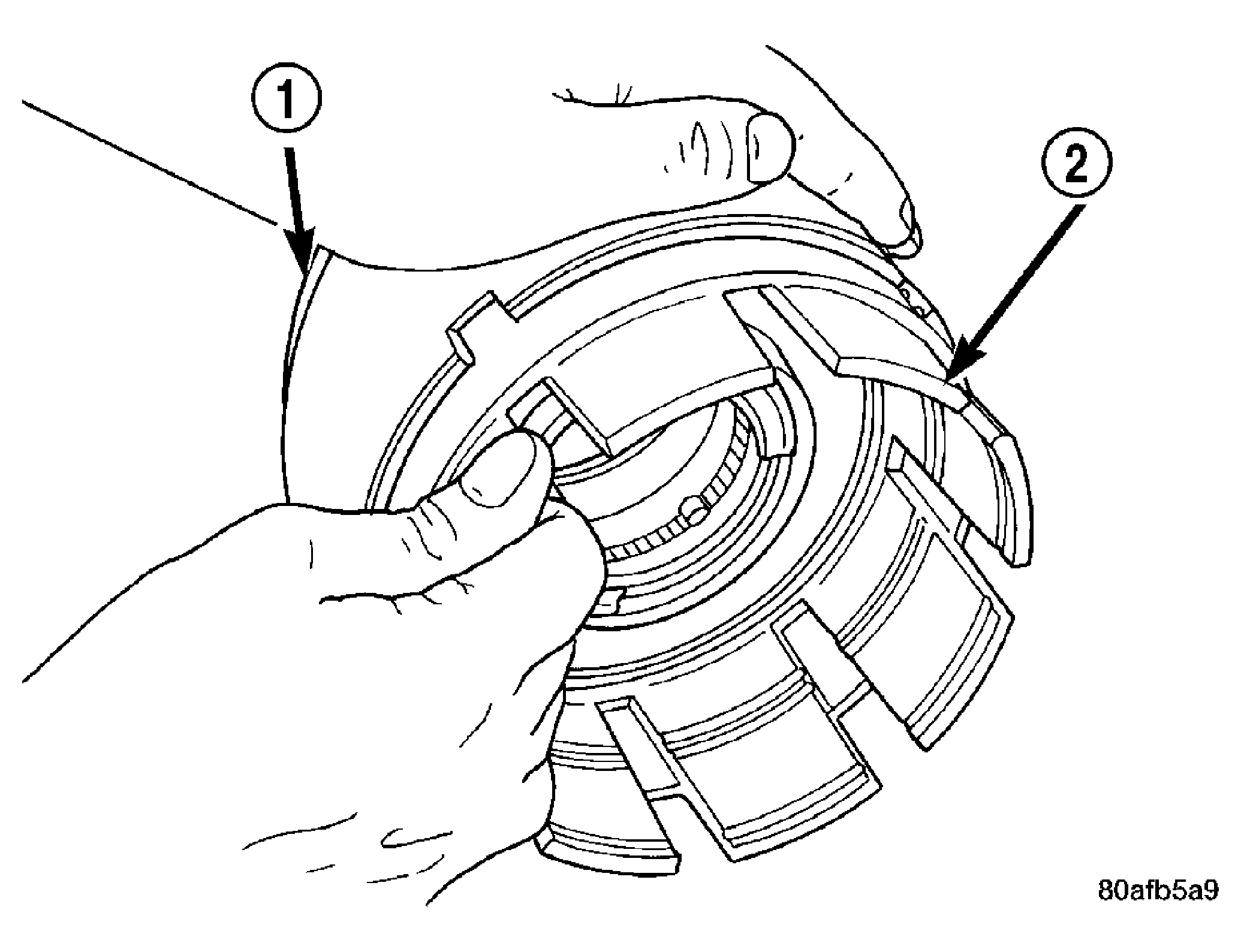

Fig 25: Pulling Retainer from Piston
Courtesy of CHRYSLER LLC

1 - OVERDRIVE/REVERSE PISTON

2 - INPUT CLUTCH RETAINER

Separate clutch retainer (2) from OD/Reverse piston (1). See Fig 25.

Fig 26: Removing/Installing OD/Reverse Piston Snap Ring

Courtesy of CHRYSLER LLC

1 - ARBOR PRESS RAM (COMPRESS RETURN SPRING JUST ENOUGH TO REMOVE OR INSTALL SNAP RING)

2 - SCREWDRIVER

3 - SNAP RING

4 - SPECIAL TOOL 6057

5 - OD/REVERSE PISTON

6 - RETURN SPRING

Using Disc 6057 (4) and an arbor press (1), compress OD/Reverse piston (5) return spring just enough to remove snap ring (3). See Fig 26.

Fig 27: Return Spring & Snap Ring

Courtesy of CHRYSLER LLC

1 - OD/REVERSE PISTON

2 - RETURN SPRING

3 - SNAP RING

4 - O-RING

Remove the OD/Reverse piston return spring (2) and snap ring (3). See Fig 27.

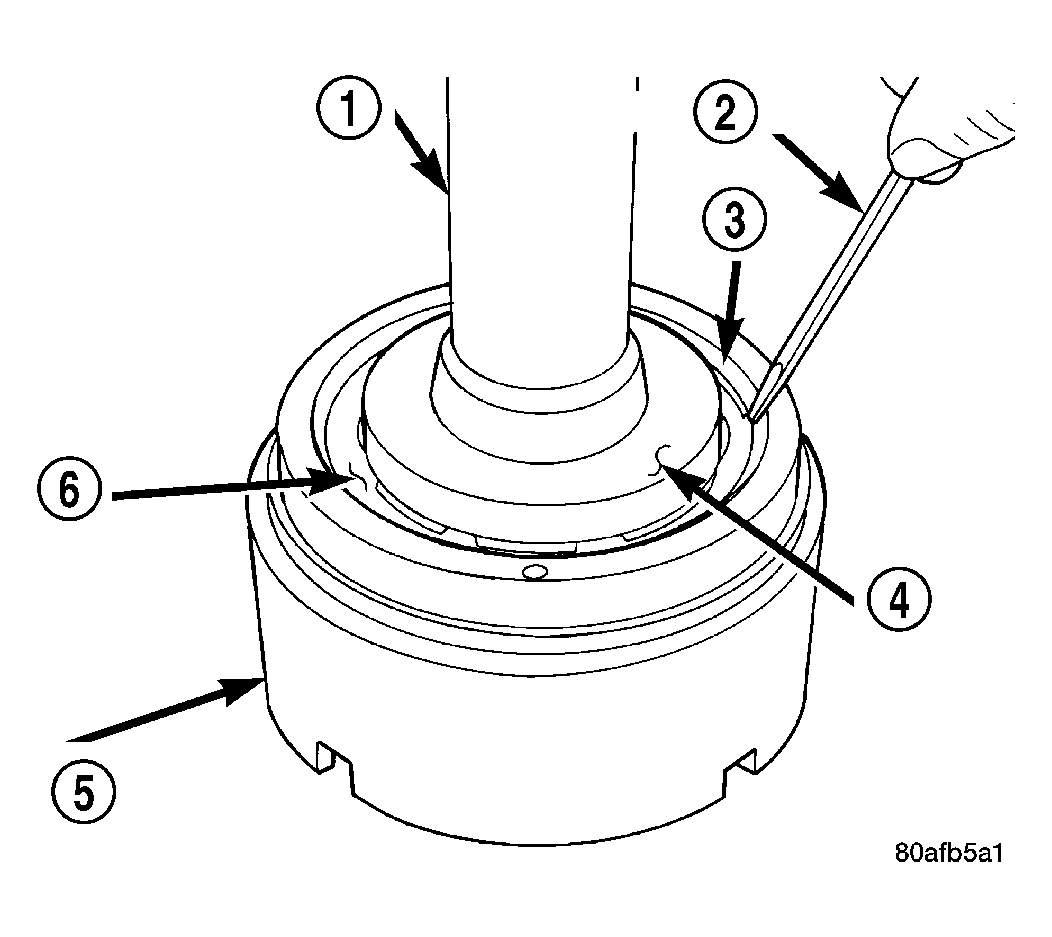

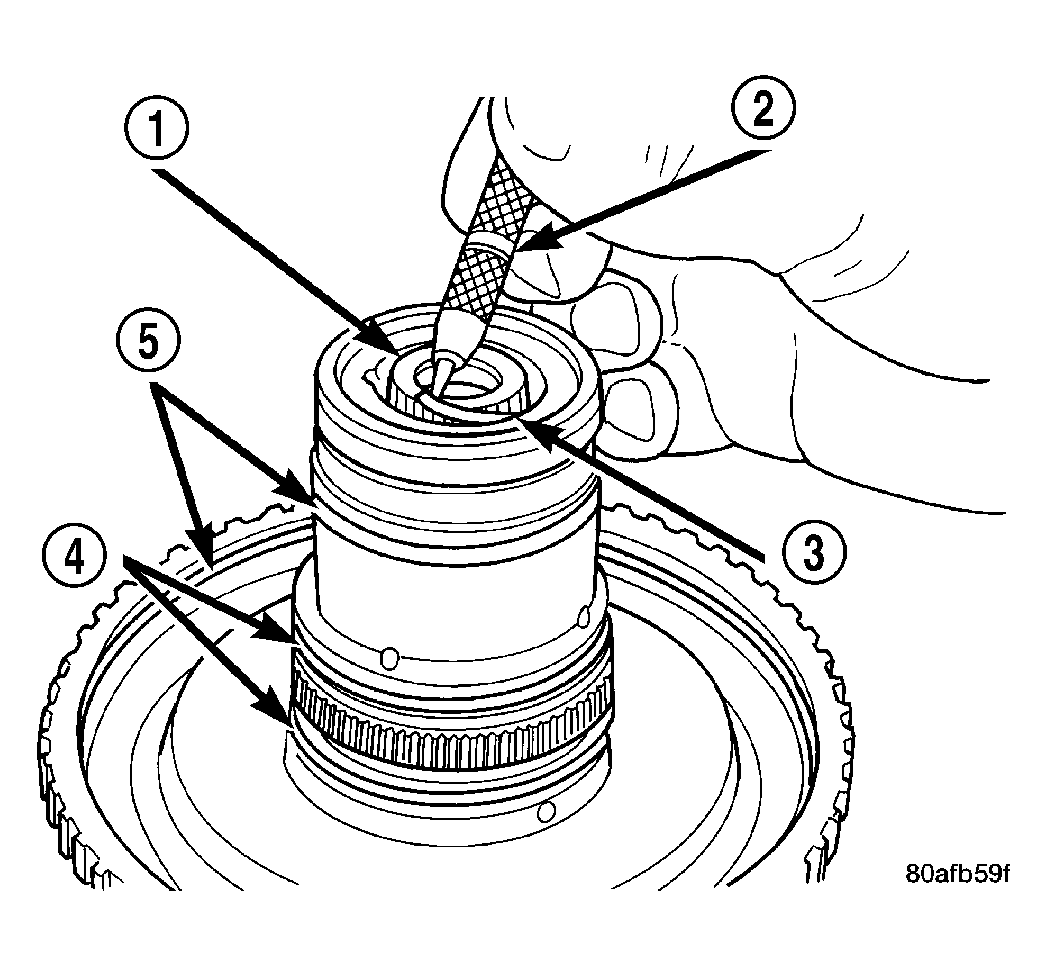

Fig 28: Removing Input Shaft Snap Ring

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - SHARP-POINTED TOOL

3 - SNAP RING

4 - O-RINGS

5 - SEALS

Remove input shaft (1) to input clutch hub snap ring (3). See Fig 28.

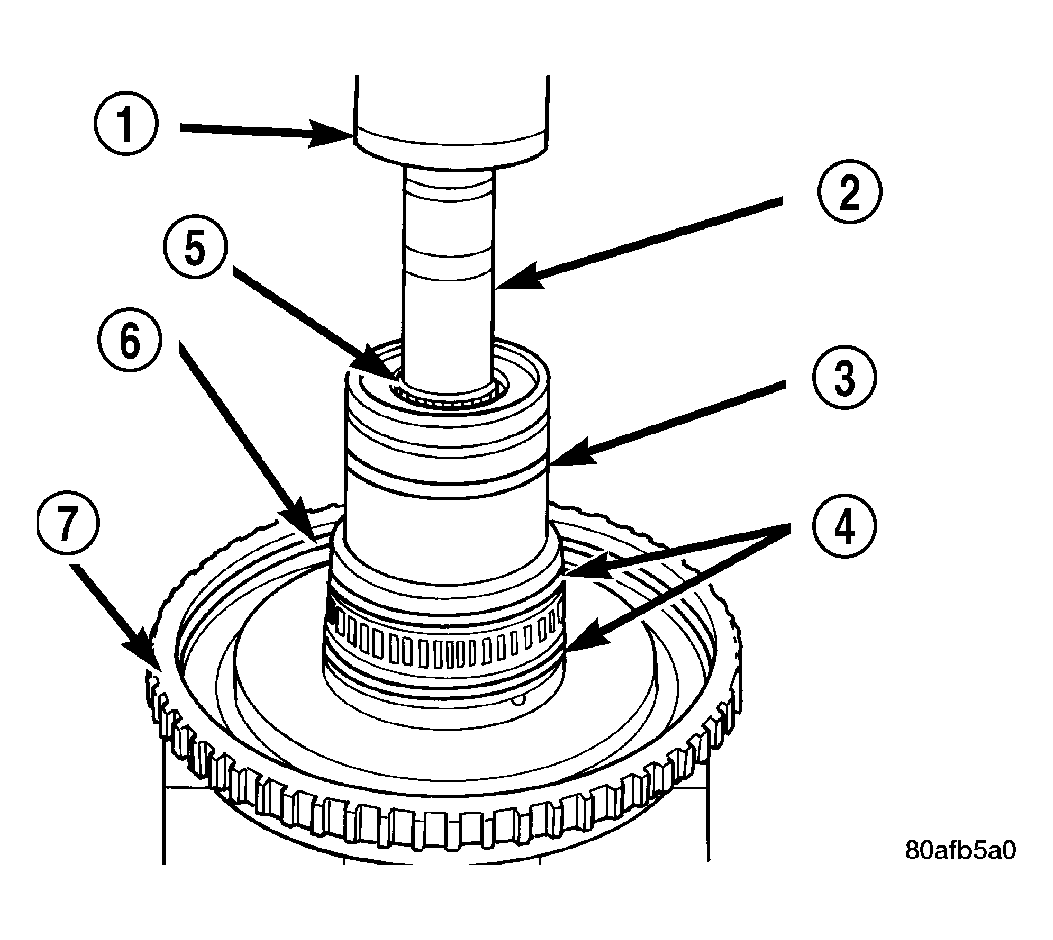

Fig 29: Remove Input Shaft

Courtesy of CHRYSLER LLC

1 - ARBOR PRESS RAM

2 - SOCKET

3 - SEAL

4 - O-RINGS

5 - INPUT SHAFT

6 - SEAL

7 - INPUT CLUTCH HUB

Using a suitably sized socket (2) and an arbor press (1), remove input shaft (5) from input shaft hub.
