Pump - Power Steering, 2.7L/3.5L

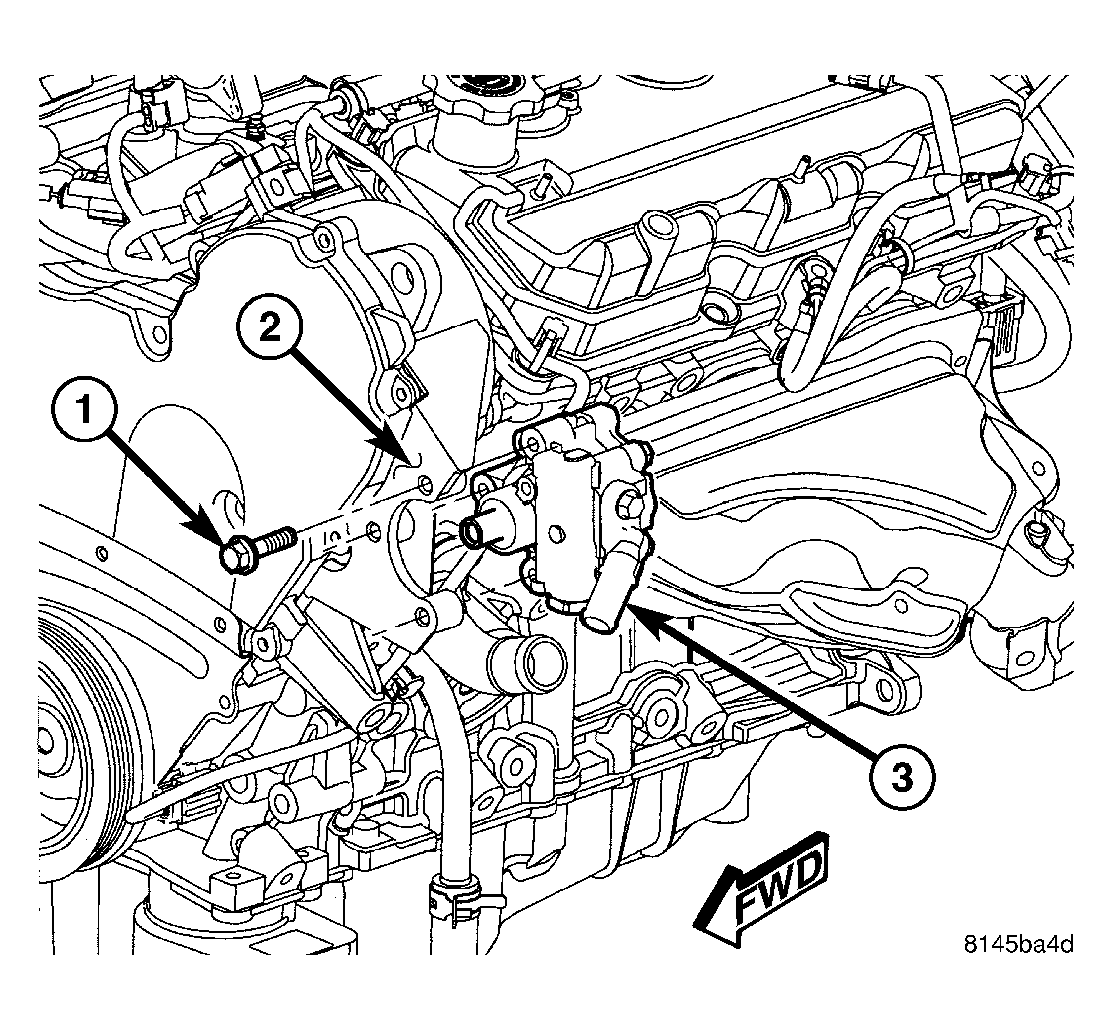

- Align pump (3) with mounting holes on engine bracket (2).
- Install three pump mounting bolts (1) through access holes in pulley and engine bracket. Tighten bolts to 28 N.m (21 ft. lbs.) torque.
NOTE: Always use a NEW O-ring on the end of the pressure hose.
- Lubricate NEW O-ring on end of pressure hose with clean power steering fluid.
- Install pressure hose (2) to pump (1). Tighten pressure hose tube nut to 47 N.m (35 ft. lbs.) torque.

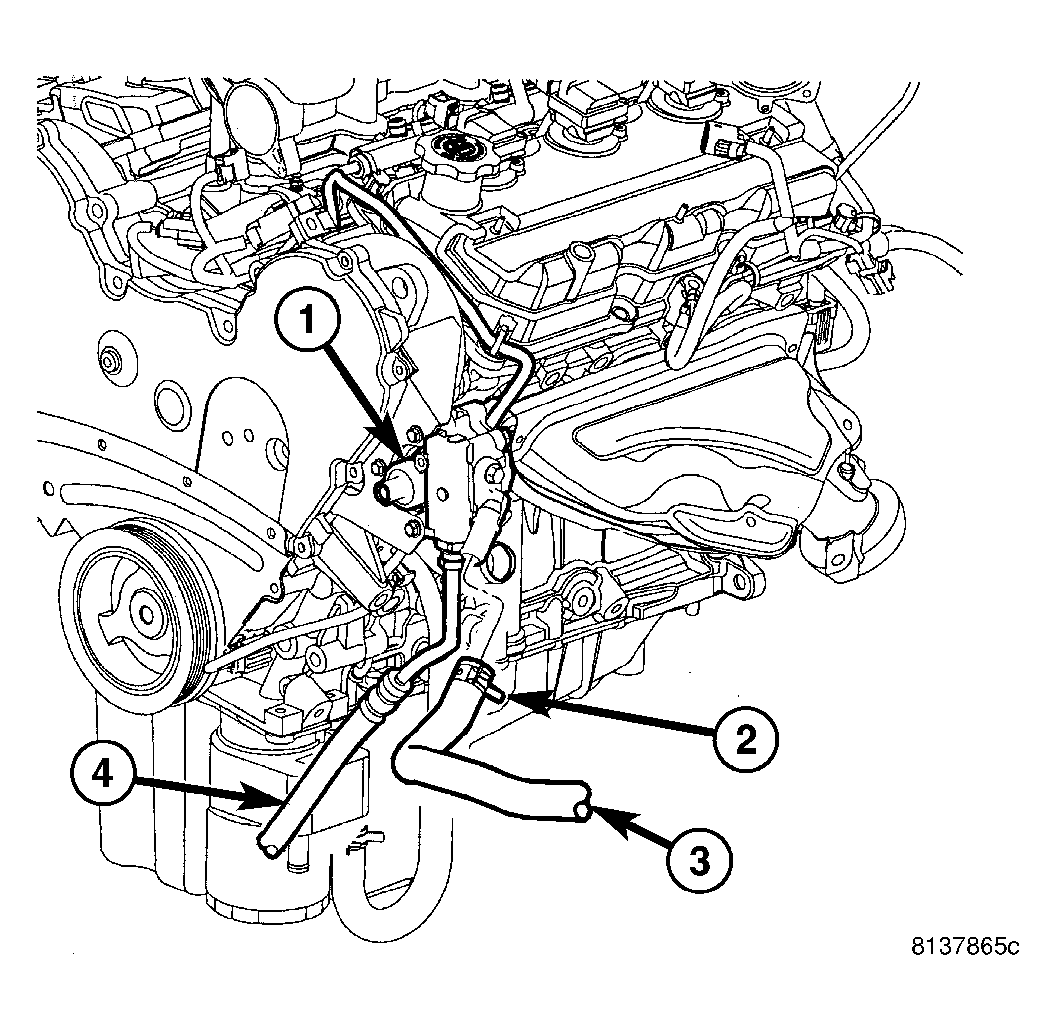

- Install supply hose (3) on pump. Install clamp (2) securing hose in place.
- Install serpentine drive belt. Refer to INSTALLATION .
- Install air cleaner housing and inlet tube. Refer to INSTALLATION .
- Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to STANDARD PROCEDURE .
- Fill and bleed power steering system. See STANDARD PROCEDURE .
