Sensor - Seat Track Position: Installation

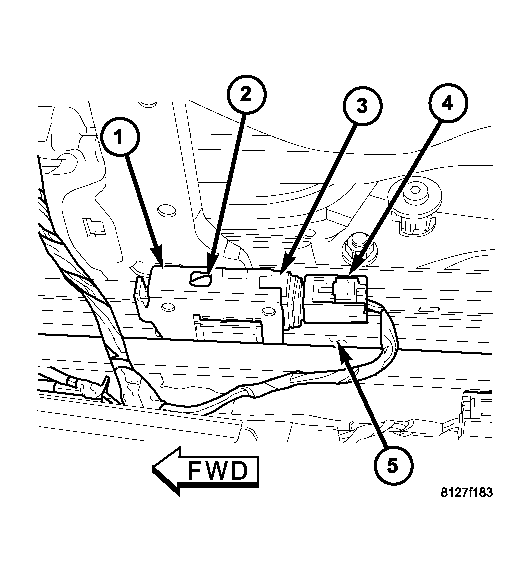

Fig 1: Removing/Installing Seat Track Position Sensor

Courtesy of CHRYSLER LLC

1. Position the seat track position sensor (3) on the end of the bracket (1) located on the lower outboard seat track (5).
2. Push the sensor firmly into the bracket until the snap feature (2) locks into place.
3. Connect the electrical connector (4) to the sensor.

WARNING: Do not connect the battery negative cable. Refer to DIAGNOSIS AND TESTING . Personal injury or death may result if the system test is not performed first.

WARNING: Following successful completion of the Airbag System test procedure, the Occupant Classification System Verification Test must be done using a scan tool and the appropriate diagnostic information.
