Mount - Right: Installation

WARNING: This page is about a different variant/trim than selected.

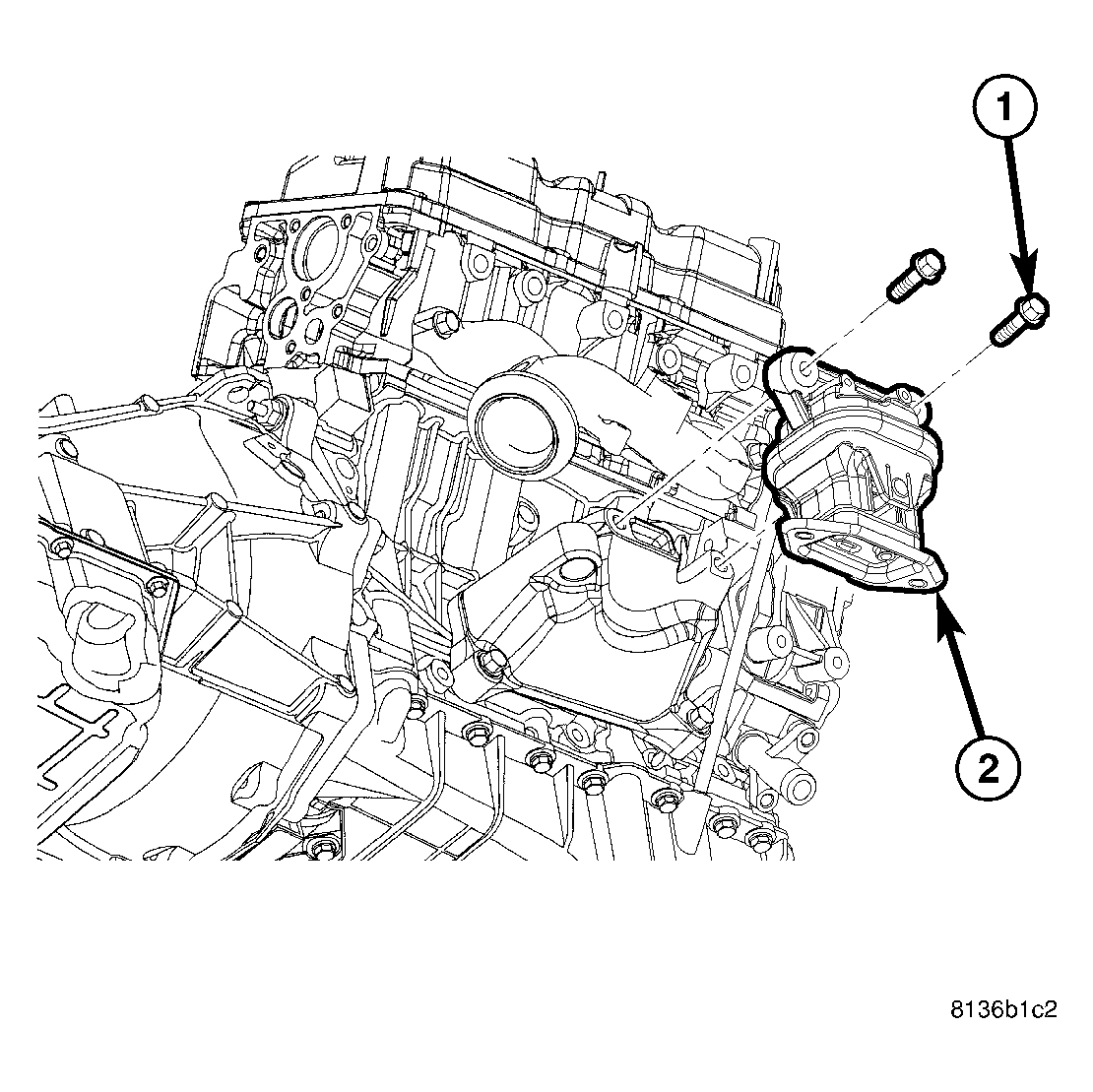

Fig 1: Right Engine Mount
GC0015431Courtesy of CHRYSLER LLC
1 - BOLT
2 - RIGHT ENGINE MOUNT
  1. Install the engine mount to the engine bracket and hand tighten. See Fig 1. Tighten bolts to 54 N.m (40 lbs. ft.).
  2. Install and hand tighten the engine mount through studs.
  3. Tighten the engine mount to engine bracket fasteners to 75 N.m (55 lbs. ft.).

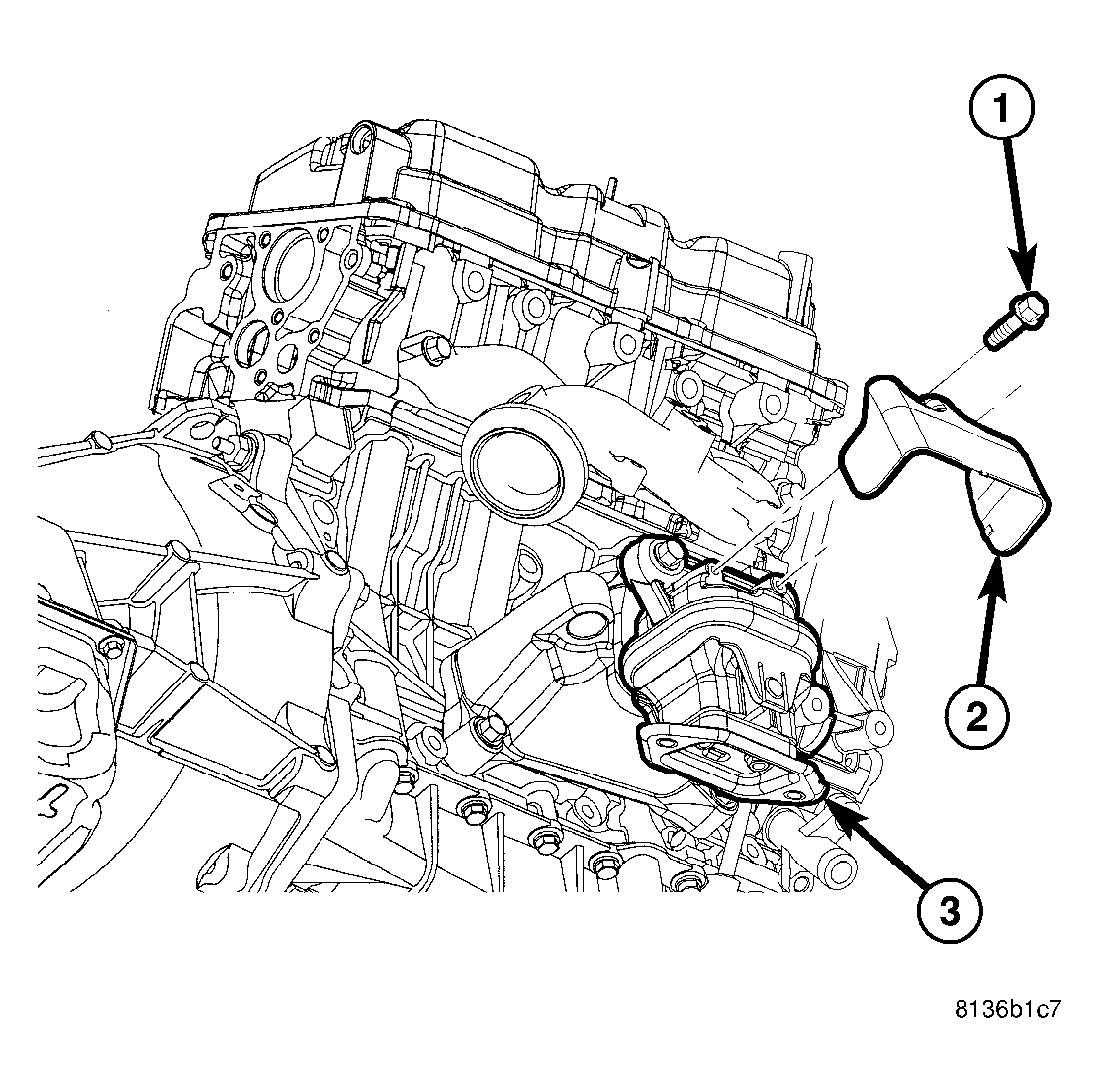

    Fig 2: Right Engine Mount Heat Shield
    GC0015432Courtesy of CHRYSLER LLC
    1 - BOLT
    2 - SHIELD
    3 - RIGHT ENGINE MOUNT
  4. Install the engine mount heat shield (2). See Fig 2. Tighten the fasteners to 11 N.m (97 in. lbs.).
  5. Lower the engine and remove the lifting devise.
  6. Tighten the engine mount through studs to 12 N.m (106 in. lbs.).
  7. Install the right engine mount to cradle nuts and tighten both engine mount fasteners to 75 N.m (55 lbs. ft.).
  8. Lower the vehicle.
  9. Connect the negative battery cable.
