Mount - Left: Installation

WARNING: This page is about a different variant/trim than selected.

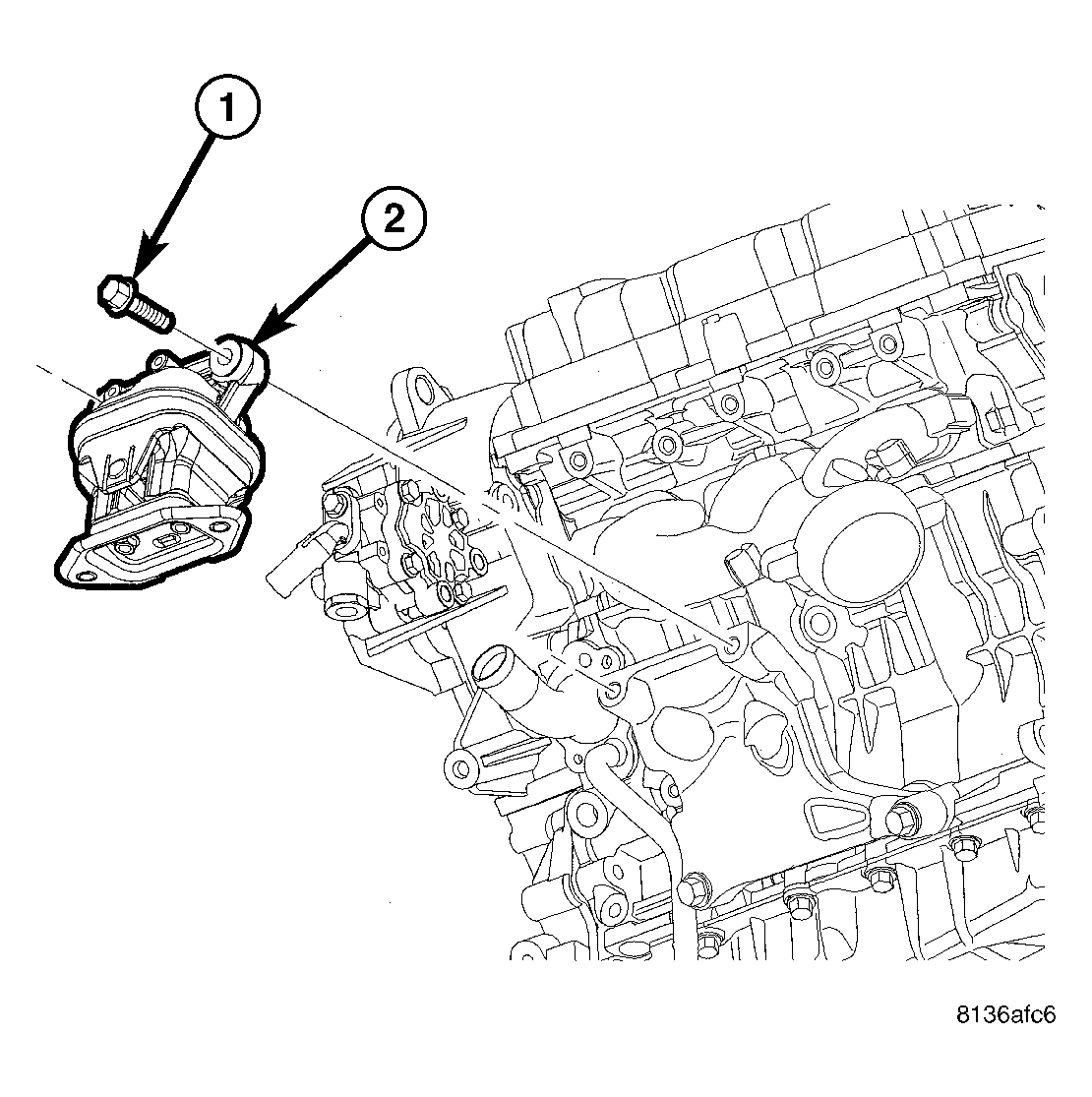

Fig 1: Left Engine Mount
GC0015427Courtesy of CHRYSLER LLC
1 - ENGINE MOUNT
2 - BOLT
  1. Install the left mount (2) to the engine mounting bracket. See Fig 1. Hand tighten fasteners.
  2. Install and hand tighten the engine mount through studs.
  3. Tighten the engine mount to mounting bracket fasteners to 75 N.m (55 ft.lbs.).
  4. Lower the engine and remove lifting device.
  5. Tighten the engine mount through studs to nut to 12 N.m (06 in. lbs.).

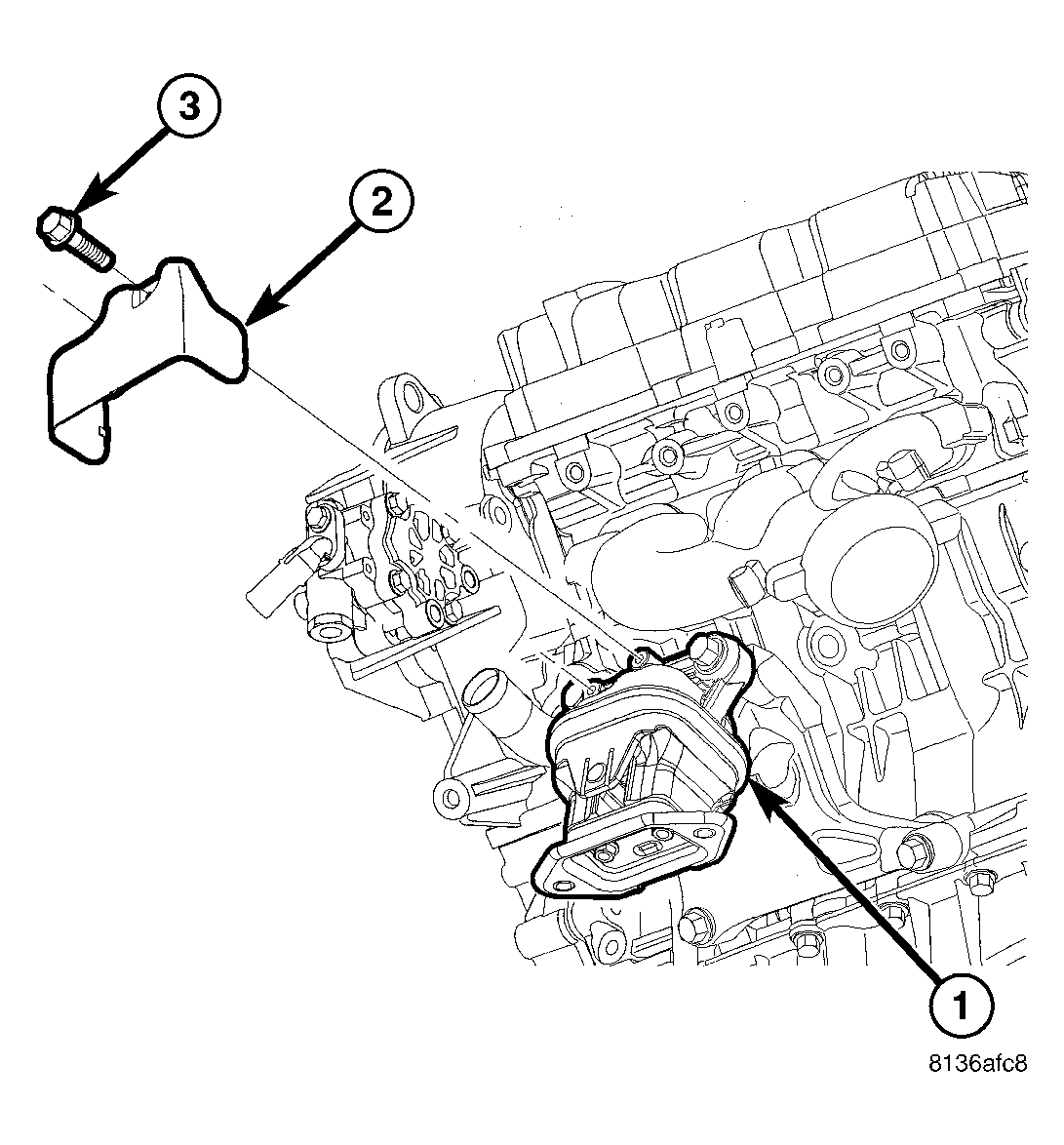

    Fig 2: Left Engine Mount Heat Shield
    GC0015428Courtesy of CHRYSLER LLC
    1 - LEFT ENGINE MOUNT
    2 - HEAT SHIELD
    3 - BOLT
  6. Install the engine mount heat shield (2). See Fig 2. Tighten fasteners to 11 N.m (7 in. lbs.).
  7. Install the left engine mount to cradle nuts and tighten both to 75 N.m (55 ft. lbs.).
  8. Lower the vehicle.
  9. Connect the negative battery cable.
