Section 2 (3.5L Engine (Service Information)): Description

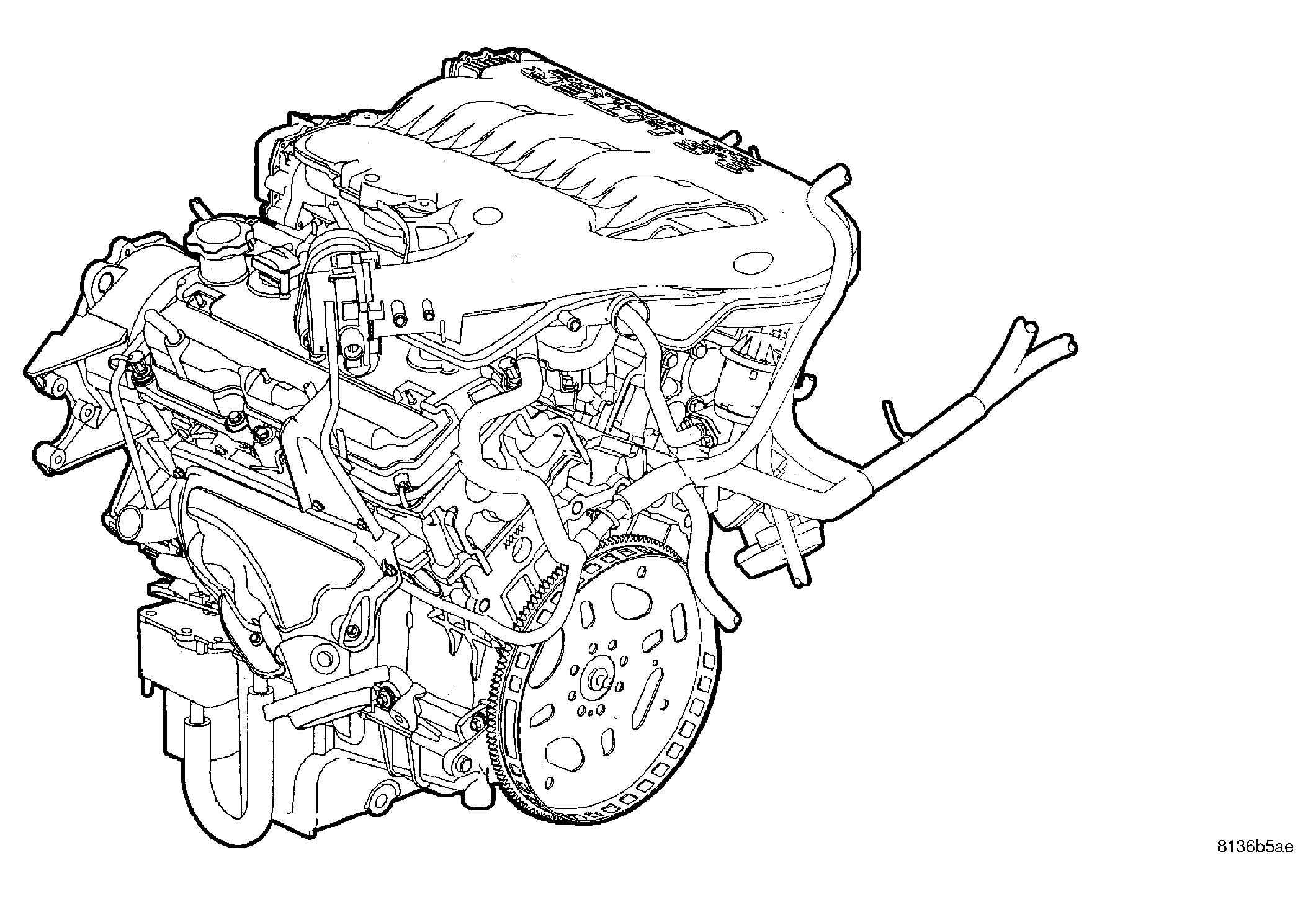

Fig 1: 3.5L Engine

Courtesy of CHRYSLER LLC

The 3.5 Liter (214 Cubic Inches) 60°V-6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder. The engine does not have provisions for a free wheeling valve train. See Fig 1.

Fig 2: Cylinder Numbering & Firing Order

Courtesy of CHRYSLER LLC

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered The firing order is 1-2-3-4-5-6. See Fig 2.

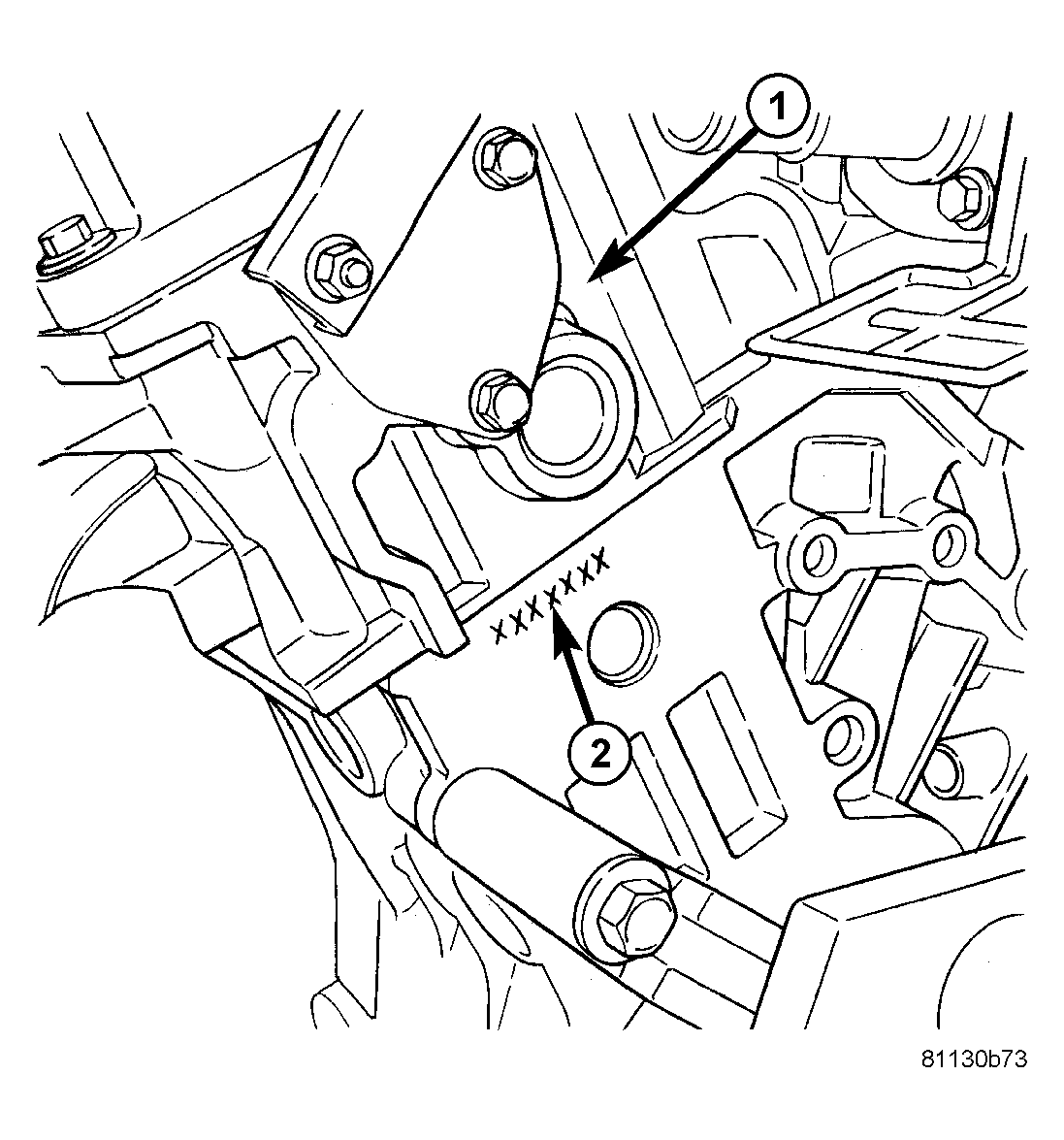

Fig 3: Engine Identification

Courtesy of CHRYSLER LLC

The engine identification number (2) is located on the rear of engine block just below the left cylinder head (1). See Fig 3.
