Intrusion Module: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

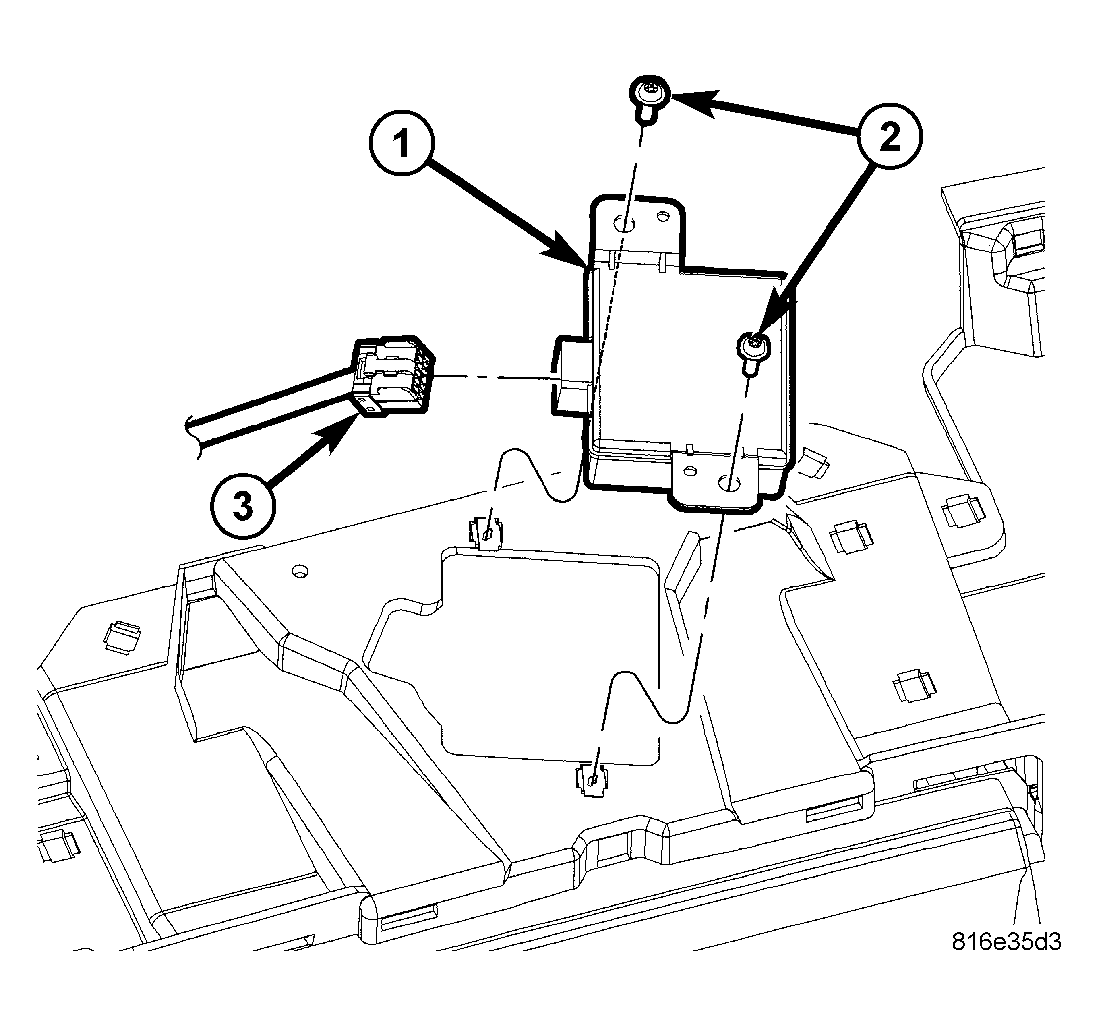

Fig 1: Removing/ Installing Intrusion Module
GC0041438Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel top cover (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL) .
  3. Remove the two screws (2) that secure the module (1) to the instrument panel.
  4. Disconnect the module electrical connector (3).
  5. Remove the module from the instrument panel.
