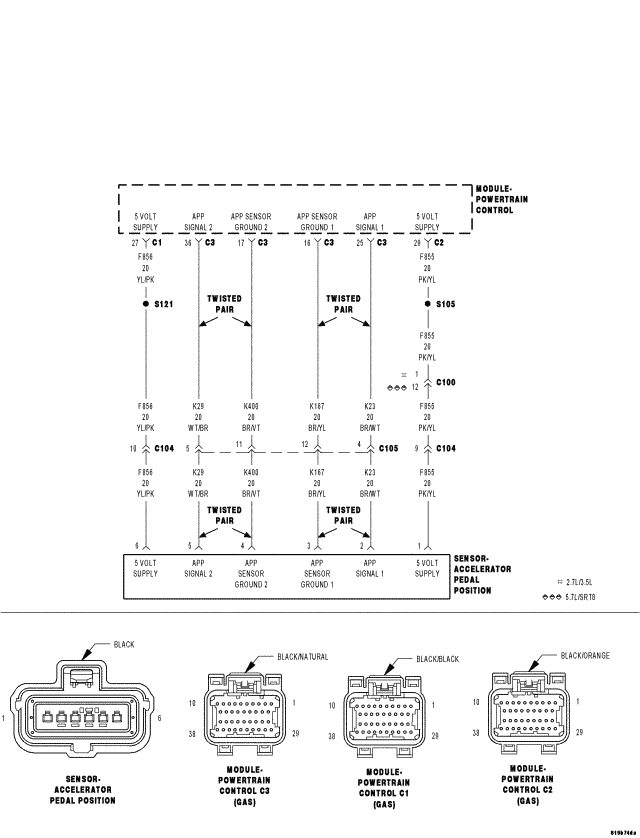

Home >> Chrysler >> 2007 >> 300 Base >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2098 To P2175 >> P2116-Accelerator Pedal Position Sensor 2 Minimum Stop Performance >> Circuit Schematic
