Circuit Schematic

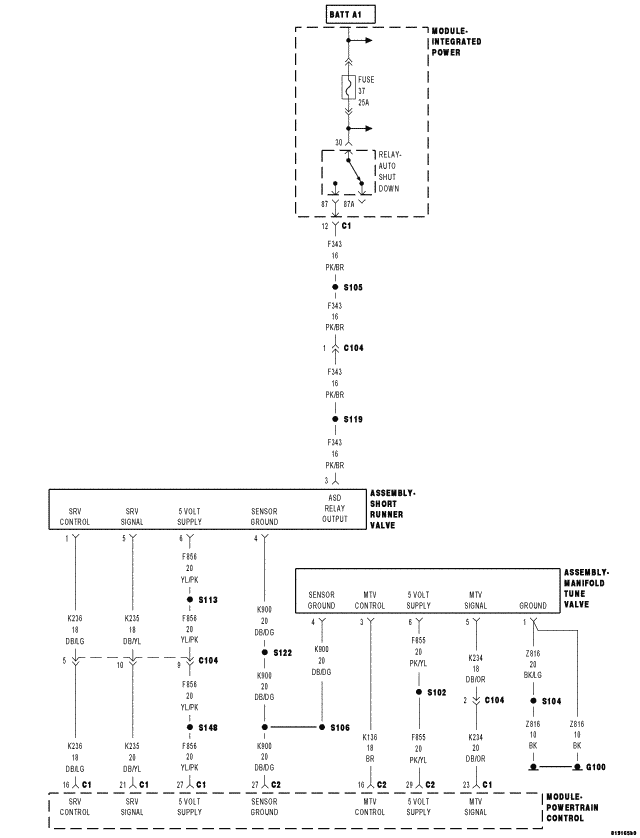

Fig 1: Manifold Tuning Valve (MTV) Control Circuit Schematic

GC0049663

Courtesy of CHRYSLER LLC
