Cover - Timing Chain: Installation

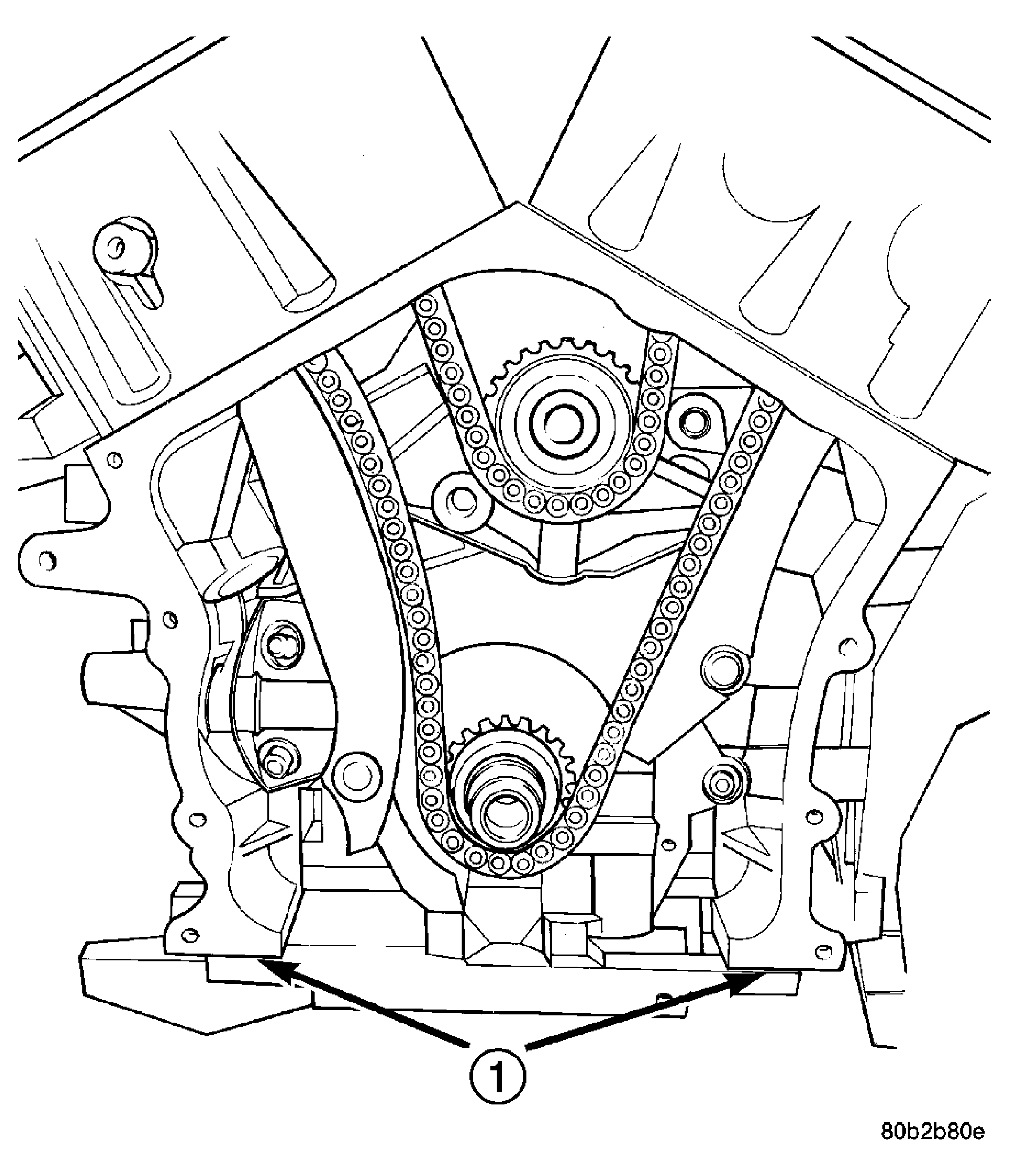

Fig 1: Timing Chain Cover Sealing
GC0015382Courtesy of CHRYSLER LLC
  1. Inspect and clean timing chain cover sealing surfaces.
  2. Before installing timing cover gasket apply a 1/8 inch bead of Mopar® Engine RTV GEN II to the parting lines between the oil pan and cylinder block (1).

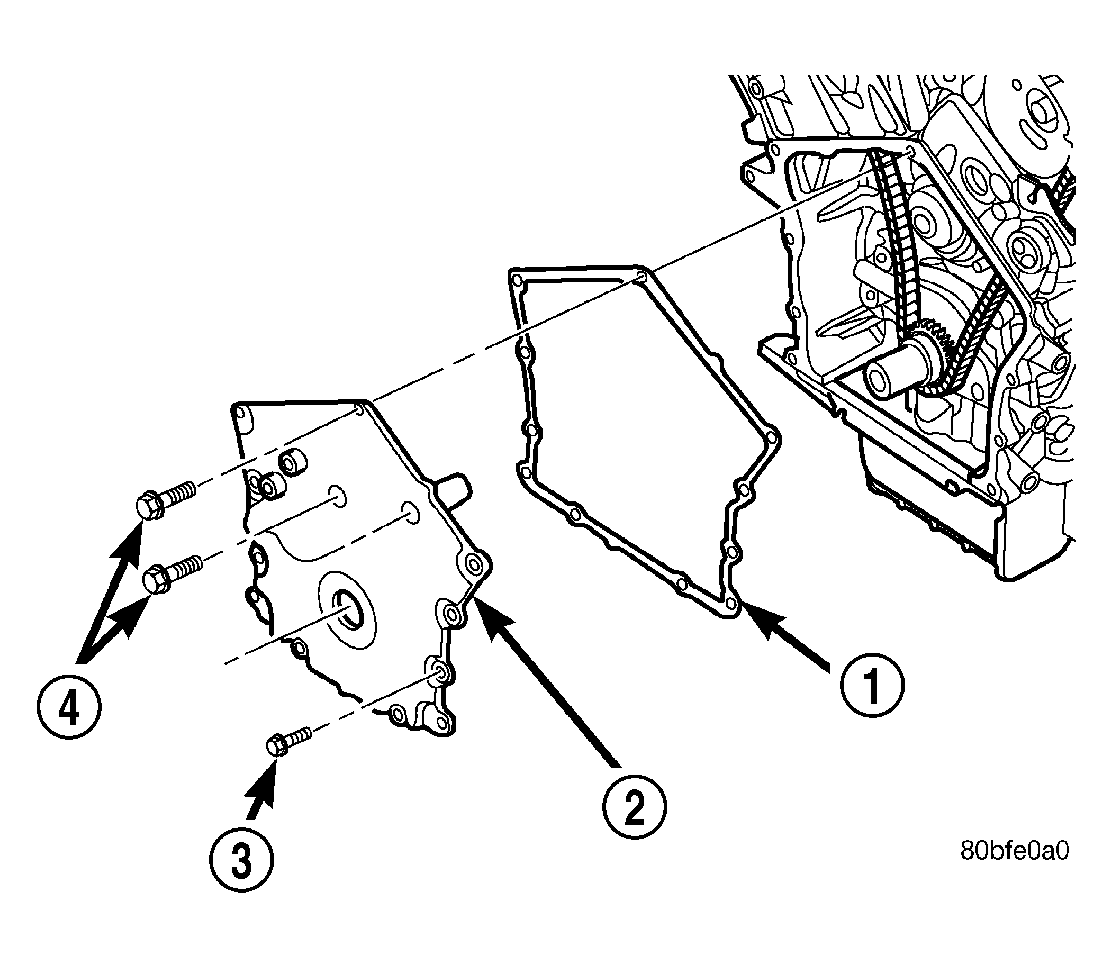

    Fig 2: Timing Chain Cover
    GC0015381Courtesy of CHRYSLER LLC
  3. Install timing cover (2) and gasket (1). Tighten M10 cover bolts (4) to 54 N.m (40 ft. lbs.) and M6 bolts (3) to 12 N.m (105 in. lbs.).
  4. Install front crankshaft oil seal using Special Tool 6780-2 sleeve and 6780-1 installer. See INSTALLATION .
  5. Install crankshaft vibration damper. See INSTALLATION .
  6. Install accessory drive belts. Refer to 2.7L .
    Fig 3: Lower Splash Shield
    GC0015233Courtesy of CHRYSLER LLC
  7. Install lower splash shield (2) and retaining bolts (1).
    Fig 4: Locating Battery
    GC0015222Courtesy of CHRYSLER LLC
  8. Lower vehicle.
  9. Fill cooling system.
  10. Connect negative battery (1) cable.
