Plate - Flex: Installation

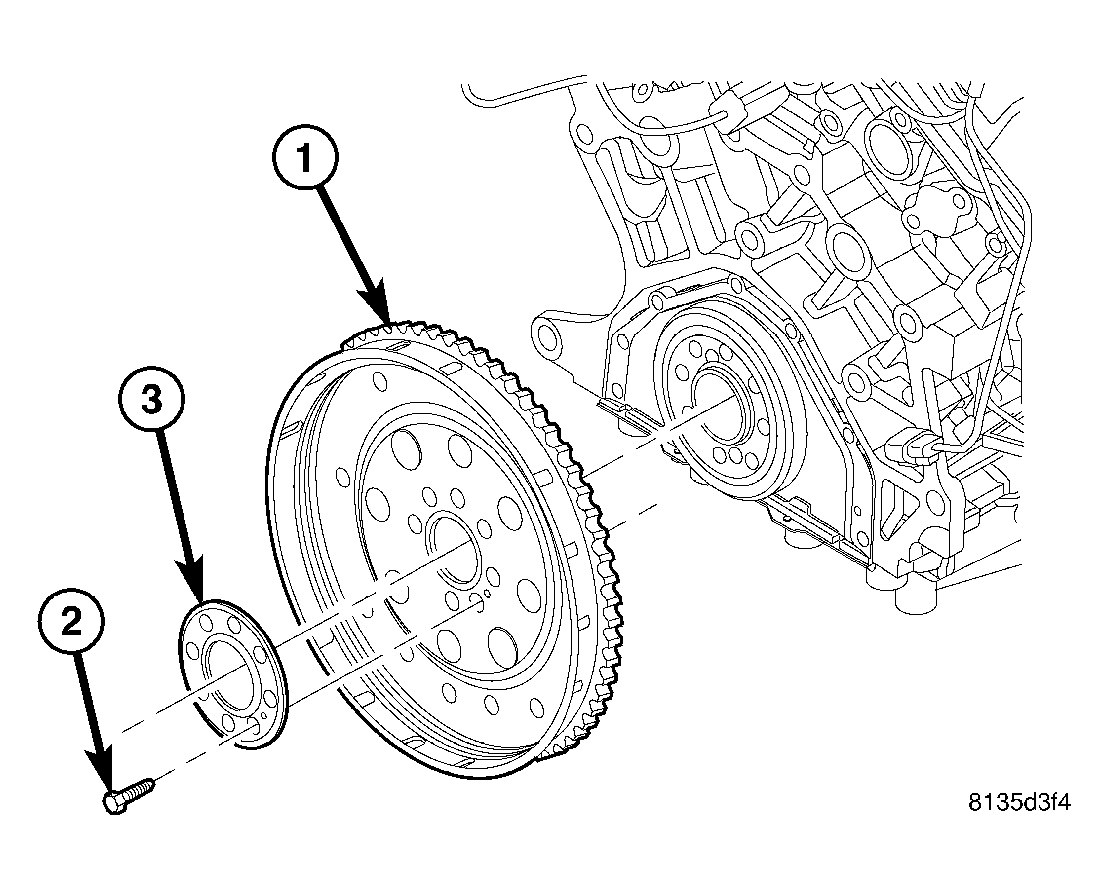

Fig 1: Locating Attaching Bolts, Backing Plate And Flex Plate
GC0015329Courtesy of CHRYSLER LLC
  1. Install flex plate (1) and backing plate (3).
  2. Apply MOPAR® Lock & Seal Adhesive to the flex plate bolts.
  3. Install all flex plate bolts (2) finger tight.
  4. Tighten flex plate bolts (2) to 95 N.m (70 ft. lbs.).
  5. Install transmission.
